Maretron  |  SKU: CM-CG1-CF-05.0

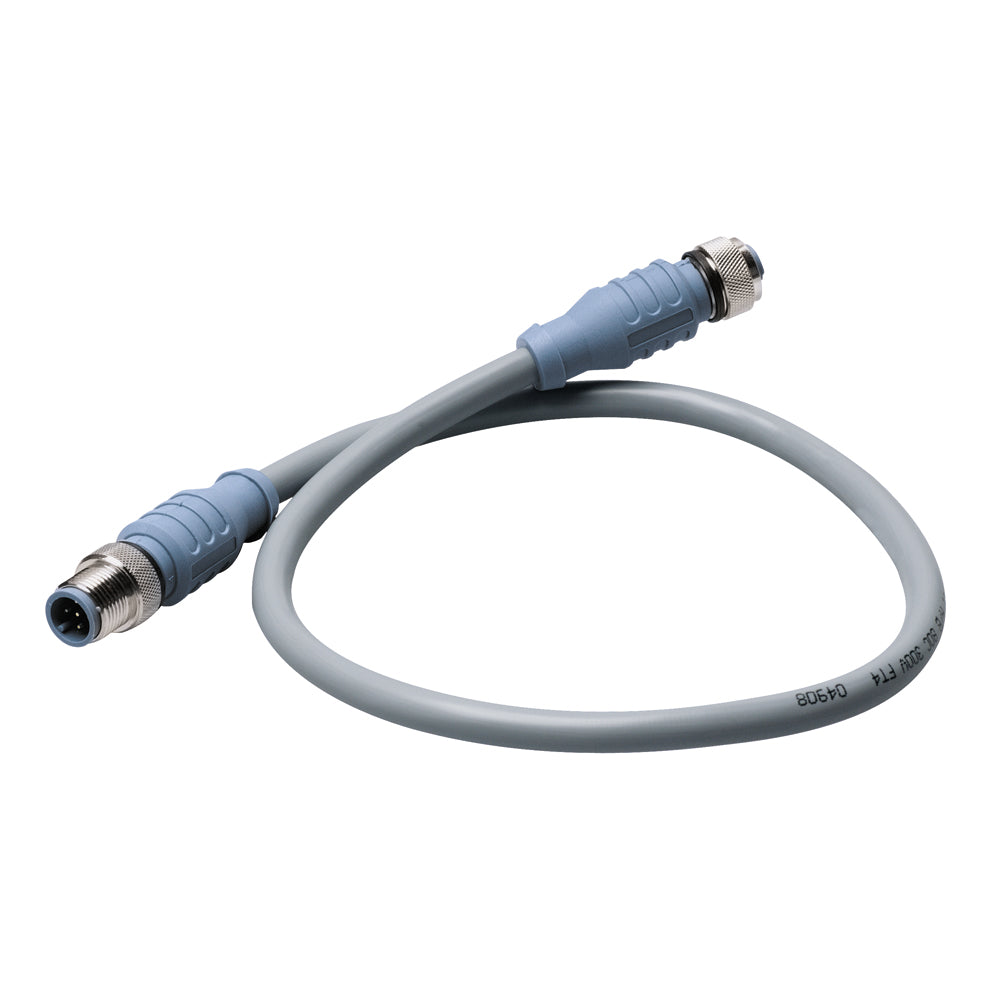

Maretron Micro Double-Ended Cordset 5 Meter

$37.99 $39.00
Shipping calculated at checkout.

Description

Mechanical

  • Contact Carrier Mat/Color: Thermoplastic PUR/Blue-Gray

  • Molded Body Mat/Color: Thermoplastic PUR/Blue-Gray

  • Contact Mat/Plating: Brass/Gold

  • Coupling Nut Mat/Plating: Brass/Nickel

  • Connector Outside Diameter: 0.59?Electrical

  • Current Rating: 4.0 Amps

  • Voltage Rating: 250 V
    Cable

  • Outer Jacket Mat/Color: PVC/Gray

  • Conductor Insulation Material: HDPE (data pair), SRPVC (power pair)

  • Number of Conductors: 4X22 AWG, 22 AWG Drain Wire

  • Shielding (3-Levels): FOIL (Overall), FOIL (Power Pair), FOIL (Data Pair)
    Environmental

  • Protection Class: IEC IP68, NEMA 1,3,4,6P

  • Temperature Rating: -40 deg C to 80 deg C to (-40 deg F to 176 deg F)
    Approvals

  • (Cable) UL: PLTC 75 deg C Sunlight Resistant E90625, AWM 80 deg C 300V

  • (Cable) CSA: CMX-OUTDOOR-CMG LL54185 75 deg C, AWM I/II A/B 80C 300V FT4

  • NMEA: NMEA 2000 Approved
