Maretron  |  SKU: DM-DB1-DF-00.5

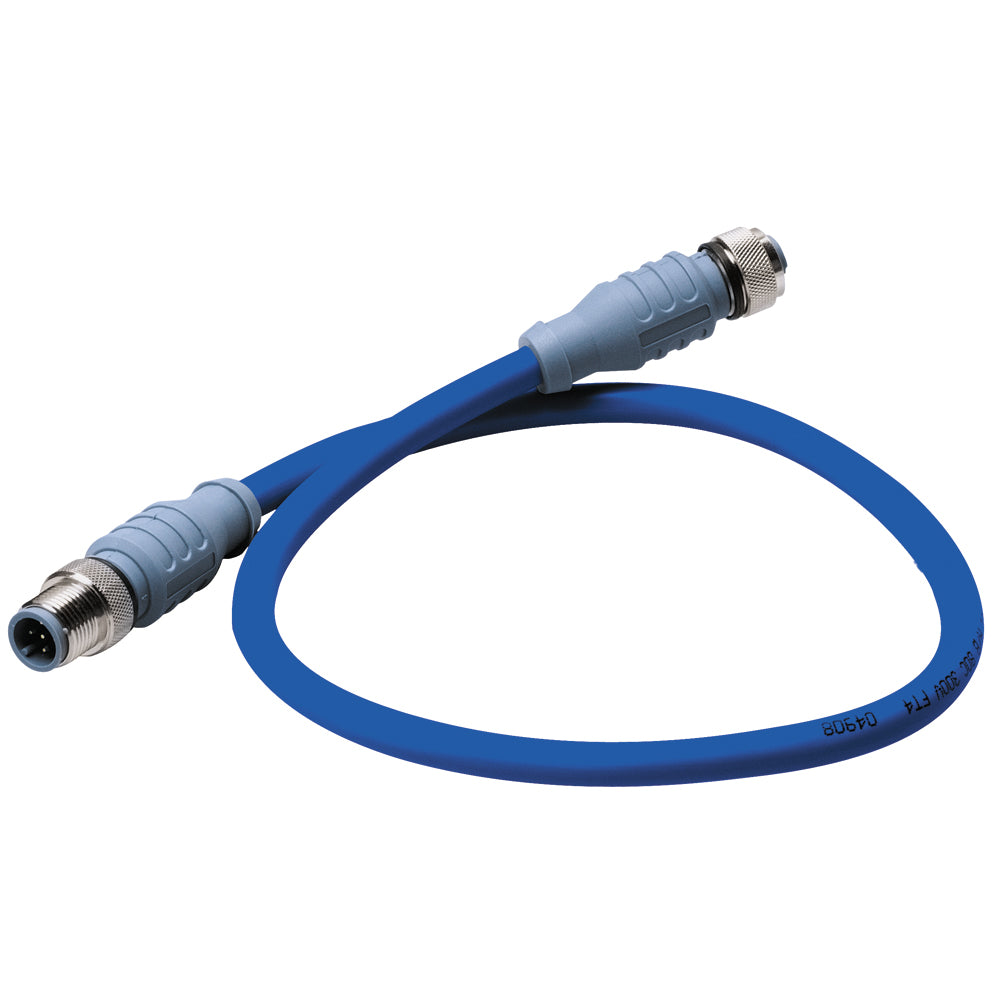

Maretron Mid Double-Ended Cordset - 0.5 Meter - Blue

$28.99 $30.10
Shipping calculated at checkout.

Description

Maretron Mid Double-Ended Cordset - 0.5 M Blue

Mechanical:

  • Contact Carrier Mat/Color: Thermoplastic PUR/Blue-Gray

  • Molded Body Mat/Color: Thermoplastic PUR/Blue-Gray

  • Contact Mat/Plating: Brass/Gold

  • Coupling Nut Mat/Plating: Brass/Nickel

  • Connector Outside Diameter: 0.59"

    Electrical

  • Current Rating: 4.0 Amps

  • Voltage Rating: 250 V

    Cable


  • Outer Jacket Mat/Color: PVC/Gray

  • Conductor Insulation Material: PE (data pair), PVC (power pair)

  • Number of Conductors: 2x16 (1.29mm) AWG, Data 2x20 (0.81mm) AWG, 20 (0.81mm) AWG Drain Wire

  • Shielding (3 Levels): Foil (Overall), Foil (Power Pair), Foil (Data Pair)

    ENVIRONMENTAL

  • Protection Class: IEC IP68, NEMA 1,3,4,6P

  • Temperature Rating: -40 deg C to 80 deg C to (-40 deg F to 176 deg F)

    APPROVALS

  • (Cable) UL: PLTC 75 deg C Sunlight Resistant E90625, AWM 80 deg C 300V

  • (Cable) CSA: CMX-OUTDOOR-CMG LL54185 75 deg C, AWM I/II A/B 80 deg C 300V FT4

  • NMEA: NMEA 2000 Approved

  • IEC: IEC 61162-3
