Marinco Waterproof Wiper Motor 12V - 2.5" Shaft - 80° Sweep

Waterproof Wiper Motor 12V - 2.5" Shaft - 80° Sweep

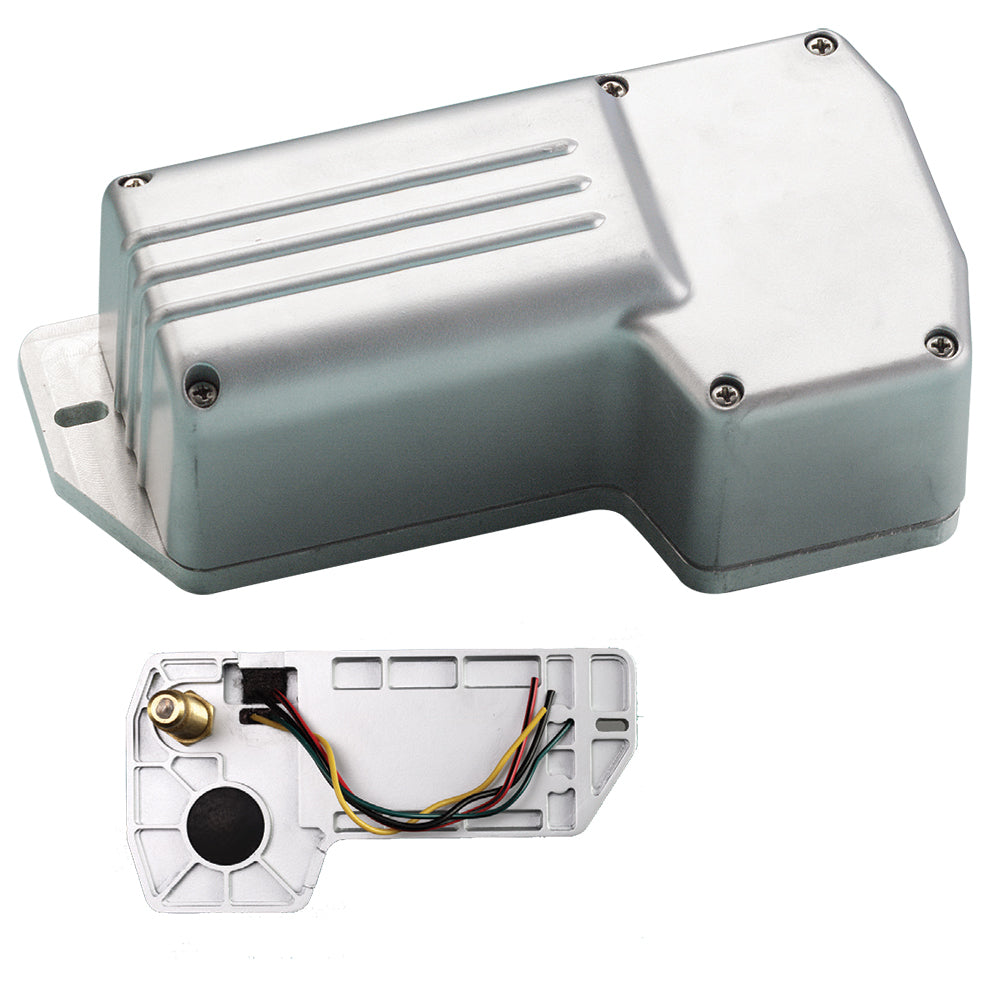

The 1.5 Waterproof Wiper Motor is made with a fully sealed powder coated aluminum waterproof base and housing to power a 22" Deluxe arm and 22" Deluxe blade combination or a 20" Premier arm and 20" Premier blade combination.

Features:

• Available in three shaft lengths: 1.5", 2.5" and 3.5" (includes .5" length of knurled arm fitting)


• Factory pre-set sweep angles of 80 degrees or 110 degrees, with easy adjustment to 45 degrees or 60 degree


• Chrome plated solid brass knurled drive nut with brass and stainless steel driveshaft


• Two-speed motor


• Sealed 6" wire leads, 16 AWG


• Adjustable right or left self-parking


• 0.625" diameter shaft (16 mm)


• Available in 12V and 24V models


• Coast to park


• RF shielded circuitry


• Retail version includes 5 amp fuse and holder (operating switch not included)


• Measures approximately 7.75" L x 4" W x 2.75" D


• Stall torque: 109 in-lbs (125 kgf/cm; 12.3 Nm)


• Stall current: 11.5-13.0 amps


• No load current: 0.5-1.2 amps


• Replaces AFI 2000 motor
