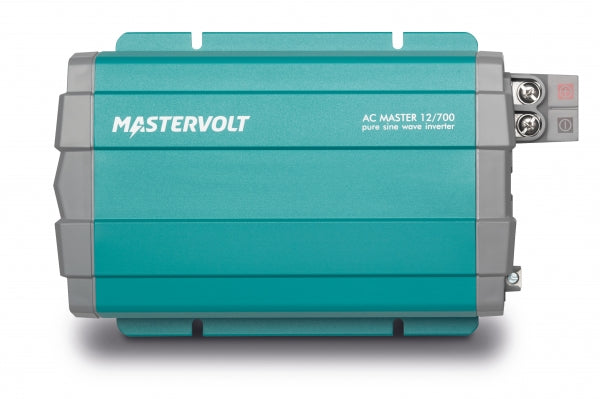

Mastervolt AC Master 12/700 (120 V) Inverter

Model: 28510700

• Pure sine wave technology protects sensitive equipment.


• Delivers full output at high peak power under the most demanding conditions.


• Automatic power saving system for extended runtime.


• Compact and lightweight design, saving valuable installation time.


• Reliable and safe operation; protected against over-temperature, overload, short circuit, high or low battery voltage.


• Variable speed fan for quiet operation at low power.


• Optional remote control for instant switch off of the inverter and all connected equipment (not available for the 300 and 500 W models).


• Convenient plug connection for all models, 2500/3500 Watt models also hard wired.

These affordable sine wave inverters convert 12V battery voltage into reliable 120 V 50/60 Hz grid power, making them ideal for recreational and semi-professional applications. The AC Master series is easy to install and delivers full output, even under the most demanding conditions. The pure sine wave technology provides an outstanding power quality, ensuring the correct functioning of sensitive equipment. The usage of high frequency switching technology eliminates any annoying humming and buzzing sounds.

Specifications

General specifications

Output voltage
100/110/115/120 V — 50/60 Hz (selectable)

Output waveform
true sine

Nominal battery voltage
12v

Recommended battery capacity
≥ 100 Ah

Continuous power at 25 °C / 77 °F, cos phi 1
700 W

Continuous power at 40 °C / 104 °F, cos phi 1
700 W

Peak load (1 min.)
< 810 W

Peak load (1 s)
< 1230 W

AC connection
North American socket with GFCI

Galvanic isolation
Yes

Efficiency
91 %

Display/read-out
LED indication: battery voltage, load level, status

Alarms
potential free alarm contact

Dimensions, hxwxd
7.9 x 13.0 x 3.3 inch

Weight
5.7 lb

Technical specifications

Technology
high frequency, input & output fully isolated

Low battery voltage, switches off at
10,5 V

Low battery voltage, switches on at
12,5 V

High battery voltage, switches off at
16,5 V

High battery voltage, switches on at
14,5 V

Input current (nominal load)
70 A

No-load power consumption (ON mode)
< 1,5 A

No-load power consumption (energy saving mode)
< 0,1 A

Minimal DC fuse (slow blow)
100 A

Minimal cable size
25 mm

Harmonic distortion typical
< 3 %

Cos phi
all power factors allowed

Temperature range (ambient temp.)
-4 °F to 140 °F

Cooling
temperature and load controlled fan

Protection degree
IP21, horizontal wall mounting

Protections
over-temperature, overload, short circuit, high/low voltage, reverse polarity (fuse)

MasterBus compatible
yes, using a MasterBus AC Master Interface
