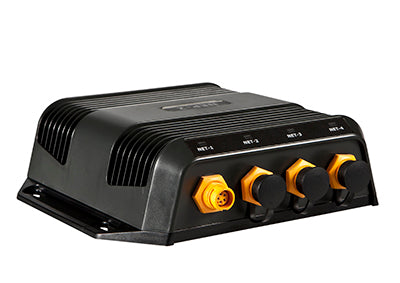

Navico NEP2 Navico Expansion Port

Navico NEP2 Navico Expansion Port

• Waterproof, powered hub for wideband Ethernet data sharing
• For HDS and add-on module networking and earlier Lowrance models with 5-pin connector
• Transmits sonar graphing display/control on HDS-M series chartplotters when networked with HDS sonar displays
• Connects up to five compatible displays and Ethernet modules
• Advanced VHF radio band noise rejection

NEP-2 is a plug-and-play powered hub for sharing sonar, StructureScan™ Sonar Imaging, Broadband 3G Radar or HD Digital Radar and LWX-1 SIRIUS® Satellite Weather data between multiple HDS® displays across an onboard network.

Also compatible with 2007 and later LCX, LMS and GlobalMap® models with 5-pin Ethernet connector for networking multiple displays.

Fully waterproof and resists corrosive marine environments. Unused connector ports feature waterproof caps for added protection for future expansion.

TECHNICAL / ENVIRONMENTAL Waterproof Standard IPX7 standards Width 8.3 in \ 210 mm Height 2.3 in \ 57.6 mm Depth 7.4 in \ 188 mm Weight 1.82 lbs \ 0.825 kg Operating Temperature -20° to +167° F (-28° to +75° C) POWER Power Supply 12 (max. 10 ? 17) vDC
