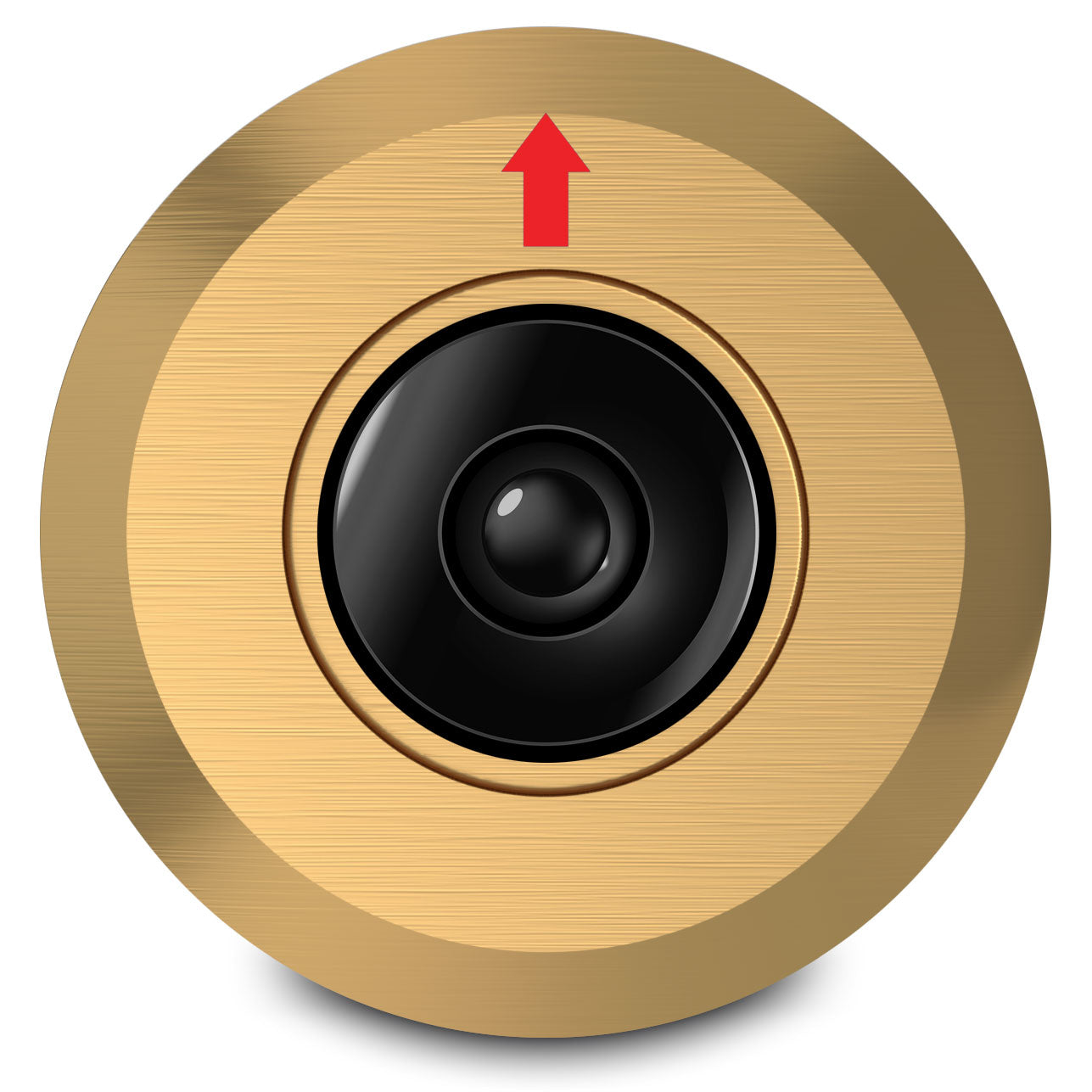

OceanLED Eyes Ocean GEN2 NTSC Camera Bronze Besel

OceanLED Eyes Ocean GEN2 NTSC Camera Bronze Besel

OceanLED EYES HD Gen2 Underwater Camera

• Full 1080p HD


• 2.1 Megapixel


• HD-SDI Output


• Tritonium™ Optical Lens

Never miss the moment the fish strikes or when you’re lucky enough to have a pod of dolphins swimming with you. Cockpit mounting means you get a different view of the event and can provide evidence of your winning catch.

The new EYES HD Ocean Camera can be mounted anywhere allowing you to capture the magic of your own underwater aquarium beneath your boat in full 1080p High Definition video.

Can be added to a CCTV system to increase security.

Suitable for Fibreglass, GRP and wooden hulls, and also suitable for aluminium/steel hulls using the Delrin Isolation Sleeve accessory. Tritonium™ optical lens is scratch and sea growth resistant.

Minimum Illumination
0.1 LUX

Minimum-Maximum operating voltage DC
9-14V DC

Current / Amp draw (DC)
12V DC 110mA MAX

Effective Pixels
1984 (H) x 1105 (v)

H. Resolution
1080 TV Lines

Video Output
HD-SDI / 1.0 Vp-p Composite ( 75Ω )

S/N Ratio
More than 50dB

Electronic Iris (Auto)
1/50, 1/60 - 1/100,000 sec

Controllable Max Gain
23dB

Lens
3.7mm

Operating Temperature
14°F~112°F (-10°C~+50°C)

Overall Length
135mm (5 5/16")

Diameter of Bezel
58mm (2 9/32")

Total weight
65g (2.3oz)

Extension cable length (standard)
10m (30’)

Hole cut-out for body
35mm (1 3/8")

Material
Aluminium Bronze AB2

Lens
Tritonium™ Optical Lens

Maximum hull thickness
104mm (4")
