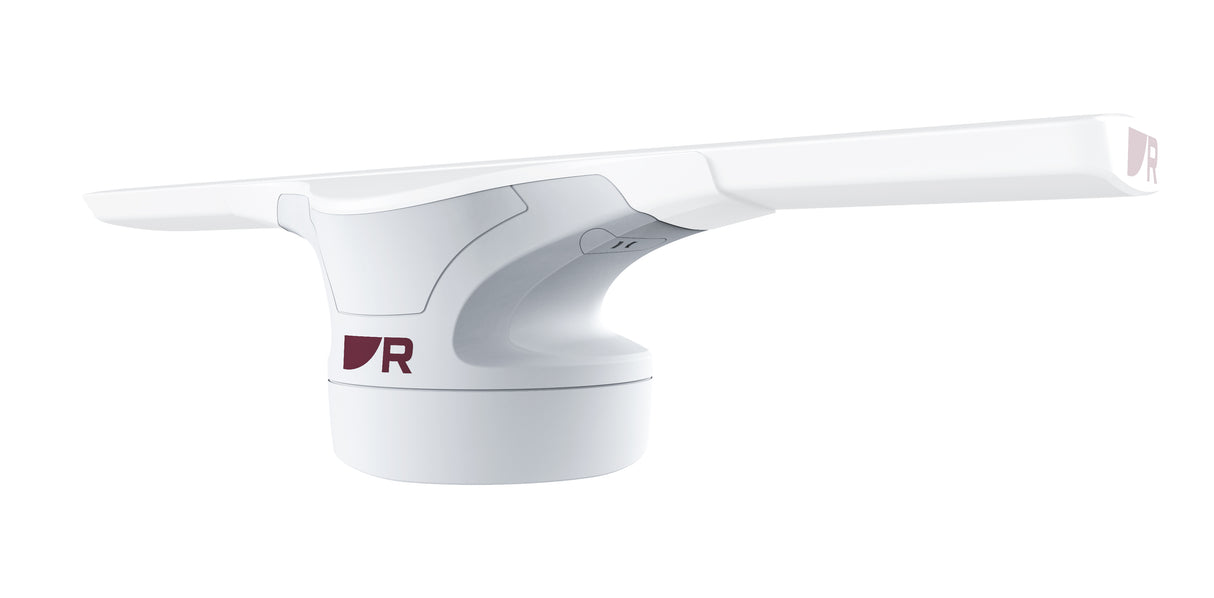

Raymarine 55 Watt Cyclone Pedestal Only

Raymarine 55 Watt Cyclone Pedestal Only

Pedestal Only for 55 Watt Cyclone

Supply voltage (Using VCM100)
Nominal: 12 V dc or 24 V dc / Minimum: 10.2 V dc / Maximum: 31.2 V dc

Power consumption (typical)
70 Watts

Power consumption (max)
170 Watts

Power consumption (standby)
28 Watts

Maximum range scale
72 nm

Boot up time
40 seconds

Standby to transmit
less than 5 seconds

Waterproof rating
IPX6

Operating temperature range
-25°C to +55°C (-13°F to 131°F)

Humidity
Up to 93% at 40°C (104°F)

Maximum wind speed
100 Kts

Power connection
1x Power connector

Data connection
1x RayNet connector

Transmitter frequency
9370, 9400, 9430 MHz (User Selectable)

Peak power output
55 Watts

Receiver characteristic
Linear

Receiver noise
Less than 5 dB

Pedestal

Dimensions
388 mm x 360 mm x 335 mm / 15.27 in x 14.17 in x 13.18 in (to the top of the antenna)

Weight
16 Kg

What's in the Box:

• E70620 55 watt pedestal
