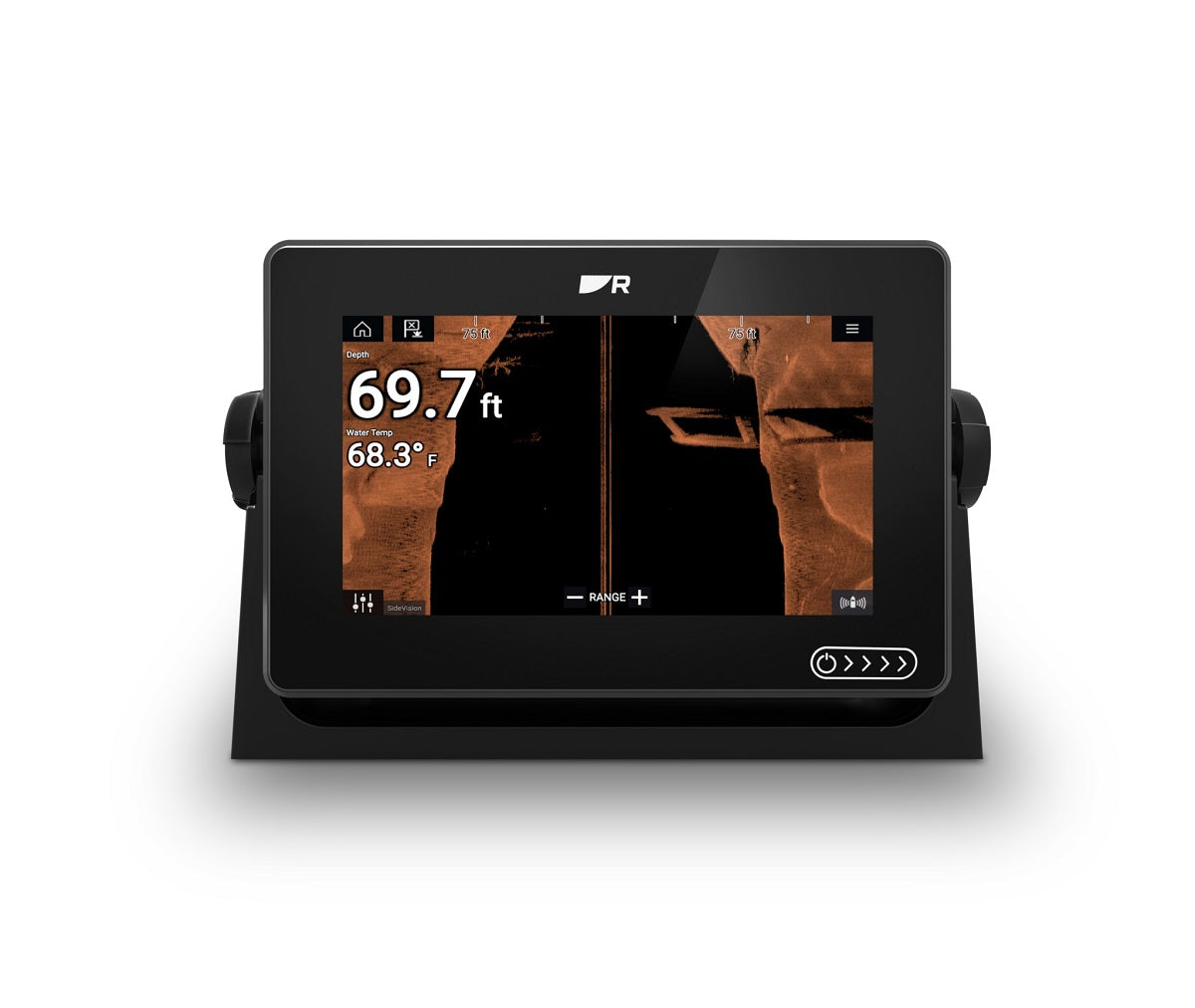

Raymarine Axiom+ 7RV 7" MFD No Transducer No Chart

Raymarine Axiom+ 7RV 7" MFD No Transducer No Chart

Raymarine Axiom+ 7RV 7" Muilti-Function Display with RealVision Sonar - No Transducer

Model: E70635

• Fluid and fast chart redraw of LightHouse, Navionics, and C-MAP electronic charts.


• Powerful quad-core processor, plus increased onboard storage for personal data and apps.


• Smart and intuitive LightHouse 3 OS makes navigating easy.


• ClearCruise™ Augmented Reality-capable for smarter navigation decisions.


• Nano-coated, impact-resistant glass screen repels water, oil, and smudges for better viewing and accurate touch controls.


• IPS display technology delivers wider viewing angles and sharp contrast at twice the resolution of traditional displays.


• Network with multiple Axiom displays, radars, sonar, and more.


• Next-generation, high-performance 10 Hz GPS/GNSS receiver with 4X increased sensitivity for accurate positioning.

The performance-tuned Axiom Plus is a new generation of award-winning Raymarine multifunction displays. Optimized for speed, Axiom Plus is equipped with a powerful quad-core processor for industry-leading responsiveness and speed, giving you the power to seamlessly redraw charts, navigate with augmented reality, and experience RealVision™ 3D sonar.

New, higher resolution IPS displays deliver 25 percent more brightness and new day/night color palettes offer enhanced visibility in any lighting condition. Axiom Plus features the renowned LightHouse 3 OS, the most powerful and easy-to-use Raymarine MFD operating system to date.

Specifications

General

Display Size
7.0 inch High Density IPS

Display Resolution
1024 x 600 (WSVGA)

Display Type
Multitouch with HydroTough™ rugged hydrophobic coating

Brightness
1,500 nits

Viewing Angle
85° Top, Bottom, Left, Right

Dimensions W x H x D (Excluding trunnion and cables)
7.92 x 5.24 x 3.0in

Mounting Options
Surface, Flush, Trunnion, (Front installation bracket available)

Waterproof Rating
IPX6 / IPX7

Operating Temperature Range
-25°C to +55°C (-13°F to +131°F)

Storage Temperature Range
-30°C to +70°C (-22°F to +158°F)

Power

Voltage
12V DC (8V to 16V DC)

Power Consumption (Full brightness)
7.34 Watts. RV Sonar version 9.84 Watts

Sensors

GNSS / GPS
Built-in GNSS Receiver: GPS/GLONASS/Galileo/Beidou* - 10Hz 28 Channel *Future software update required

Sonar Type (Built-in)
RV Version equipped with High CHIRP, DownVision, SideVision and RealVision 3D

Sonar Connections
25pin RealVision™ type connector

Sonar Depth
High CHIRP Sonar = 900 feet (274m)
DownVision™ = 600 feet (183m)
SideVision™ = 300 feet (91m)
RealVision™ 3D = 300 feet (91m)

External Sonar Option
Yes - CP100, CP200, CP370, CP470, CP570, RVX1000 via RayNet

Radar
Yes - Quantum, Digital, HD Colour / Super HD Colour and Magnum Radars

AIS
Yes - NMEA2000 compatible

Autopilot Control
Yes - Evolution Autopilot

Thermal Night Vision
Yes FLIR AX8, M232, M300 Series, M400, M500

Video / Camera
Compatible with CAM210IP, CAM220IP (Up to 10 IP network cameras)

Weather
GRIB View - Free GRIB viewer and Theyr Ltd Subscription
SiriusXM - N. America Only

Audio
NMEA2000 / Bluetooth speaker controls / Optional SiriusXM Audio

Digital Switching
Yes - Empirbus & C-Zone compatible

Remote Control
Yes Optional RMK-10 (A80438)

Networking

Ethernet
1 x 10/100 Mbit/s Network (RayNet)

NMEA0183
No

NMEA2000
NMEA2000 via DeviceNet port. SeaTalkng compatible using an optional adapter

SeaTalkNG
Requires DeviceNet Female (F) adaptor cable (A06079 120mm adaptor included in box)

USB
1 x USB microAB

Wi-Fi
WiFi - 802.11 a/b/g/n

BlueTooth
Bluetooth v4.0

Navigation

Cartography
Lighthouse Charts, Navionics, and C-MAP compatible

Waypoint/Routes/Tracks (Wpts/Rts/Trk)
10,000 wpts / 200 wpt groups / 150 rts - 250 wpt max / 16 tracks - 10,000 max trk pts

Memory

Internal Memory
16 GB Solid State

External Memory
1x MicroSD Card Slot

Languages
24

Conformances
NMEA 2000 certification
Europe: 1999/5/EC
Australia and New Zealand: C-Tick, Compliance Level 2
FCC 47CFR part 15
Industry Canada RSS210

What's in the Box:

• Multifunction Display (supplied with Trunnion adaptor fitted)


• Trunnion bracket


• Trunnion knobs x 2


• Suncover — Trunnion mount


• Panel mount gasket for surface/flush mounting


• M5x58 Threaded studs x 4


• M5 Thumb nuts x 4


• Documentation pack


• DeviceNet to SeaTalkng ® adaptor cable 120 mm (4.7 in)


• Power/NMEA 2000 cable (with 1.5 m (4.92 ft) power lead and 0.5 m (1.64 ft) NMEA 2000 lead)
