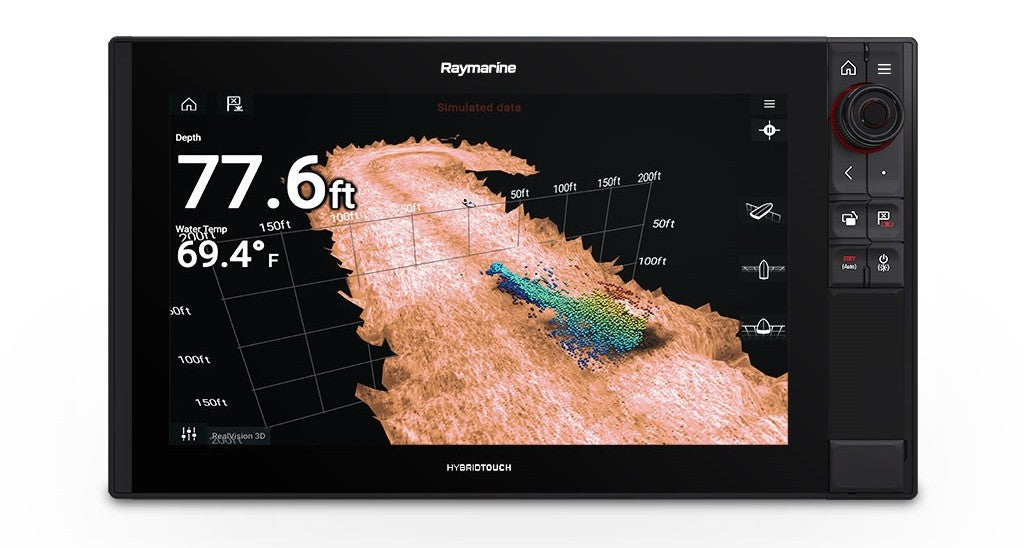

Raymarine Axiom Pro 16RVX 15.6" MFD With RealVision 3D, 1kw CHIRP sonar and Lighthouse NC3 North America Lakes and Coastal Tide Stations

Model: E70373-00-102

• RealVision 3D, 1kw CHIRP sonar


• NMEA2000 & NMEA0183


• Sonar Scroll Back


• HybridTouch™


• Quad Core Processor


• Optical Bonding Technology & IPS Displays


• IP & Analog Video


• Clear Cruise™


• Quantum CHIRP, HD & SHD


• NMEA2000 & NMEA0183

Specifications

Display Size
15.6" IPS Optically Bonded LCD

Display Resolution
1920 x 1080 FHD

Display Type
Multitouch

Brightness
1,200 nits

Viewing Angle
Degrees: 88 / 88 / 88 / 88 (Top / Bottom / Left / Right)

Mounting
Top, Front, and optional RAM ball mount adapter

Waterproof Rating
IPX6 / IPX7

Operating Temp
minus 13deg F to 131deg F (-25deg C to +55deg C)

Storage Temp
minus 22deg F to 158deg F (-30deg C to +70deg C)

Sensors

Sonar Type - Built-in
RealVision 3D, 1kw CHIRP sonar

Sonar Connections
25pin connector used only with CPT-S transducers, Pro S can only be used with CPT-S transducers that also connect directly to CP470 sonar module. Requires A80490 adaptor cable.

Sonar Depth
CHIRP Sonar = 900 feet (974 m)
DownVision™ = 600 feet (183 m)

External Sonar
Yes - CP100, CP200, CP370, CP470, CP570 via RayNet

Radar
Yes - Quantum, Digital, HD Color and Super HD Color Radars

AIS
Yes - N2K compatible

GNSS / GPS
Built-in GNSS Receiver: GPS/GLONASS/Galileo/Beidou - 10Hz 72 Channel - External Accessory: GA150 (A80288)

Autopilot Control
Yes - Evolution Autopilot

Thermal Night Vision
Yes - IP or Analogue

Video / Camera
1 x Analogue input (BNC) Up to 10 IP Cameras

Weather
GRIB View - Free GRIB viewer and Theyr Ltd Subscription - SiriusXM - N. America Only

Audio
N2K / *Bluetooth / *SiriusXM Audio [*Available in future Lighthouse 3 software update]

Digital Switching
Yes - Empirbus & C-Zone compatible [C-Zone integration available in future Lighthouse 3 software update]

Remote Control
RMK-10 (A80438) & RCU-3 (E62351)

Networking

Ethernet
2 x 10/100/1000 Mbits/ Network (RayNet)

NMEA0183
1 Transmit / 2 Receive

NMEA2000
1 x NMEA2000 port (DeviceNet microC)

SeaTalkNG
Requires DEVICENET FEMALE (F) ADAPTOR CABLE (A06079 100mm adaptor included in box)

USB
1 x USB microAB (rear - charging, external storage device or RCR-SD/USB Accessory (A80440)

Wi-Fi
WiFi - 802.11 a / b / g / n

BlueTooth
Bluetooth 4.0 + Low Energy + Power Class 1.5 [Available in future Lighthouse 3 software update]

Navigation

Cartography
Lighthouse, Navionics, *C-MAP Essentials & *C-MAP 4D MAX+ [*C-MAP chart compatibility available in future Lighthouse 3 software update]

Waypoint/Routes/Tracks (Wpts/Rts/Trk)
10,000 wpts / 200 wpt groups / 150 rts - 250 wpt max / 16 tracks - 10,000 max trk pts

MEMORY

Internal
16GB Solid State

16GB Solid State
2 x microSD slots (front) - microSDHC max 32GB NTFS or FAT32 format / microSDXC max 2TB NTFS or FAT32 format (microSD native format of exFAT must be reformatted to NTFS or FAT32)

Input Voltage
12V and 24V DC (8 V to 32 DC)

Input Draw
~45W

Dimensions
17.8" x 10.2" x2.72" (452 x 258 x 69 mm)

What's in the Box:

• Axiom Pro 16RVX


• Trim Kit


• Suncover


• Trunnion Kit


• PWR/VIDEO/NMEA0183 CBL, STRT 1.5M


• Mounting Hardware


• Mounting Template


• Quick Start Guide


• Warranty Card


• Raymarine window decal


• Lighthouse NC3 North America Lakes and Coastal Tide Stations microSD
