Raymarine Axiom2 Pro 9S MFD No Transducer No Chart

Raymarine Axiom2 Pro 9S MFD No Transducer No Chart

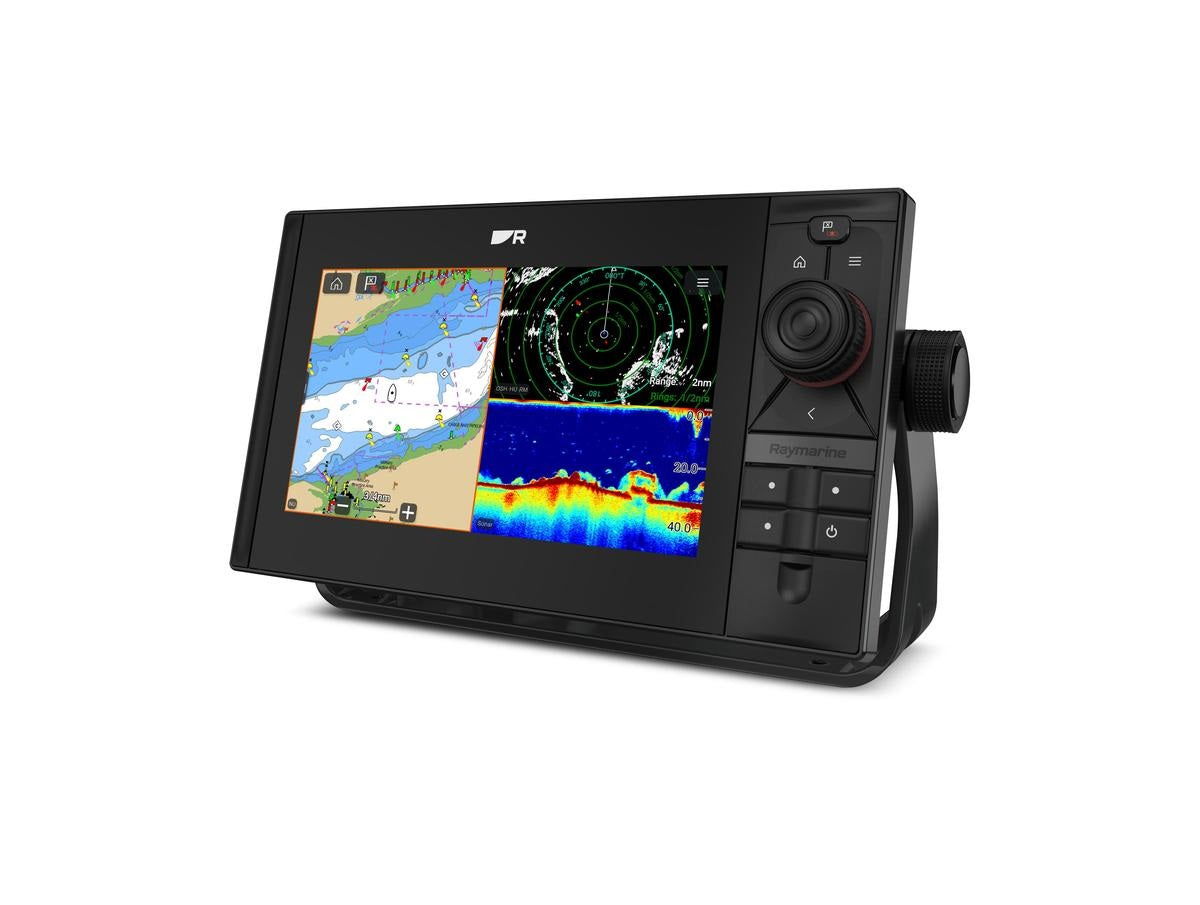

Raymarine Axiom2 Pro 9S HybridTouch chartplotter with single channel CHIRP sonar

Model: E70653

Axiom 2 Pro S combines chartplotter, sonar, radar, autopilot, and video into a powerful all-in-one navigation system. Plan your next cruise and get underway confidently with Axiom 2 Pro’s HybridTouch™ — a simple touchscreen and keypad experience made possible by the intuitive LightHouse operating system. Use Axiom 2 Pro as a single GPS chartplotter or create a network of multiple Axiom displays with a simple RayNet cable connection. More than just a chartplotter, Axiom Pro 2 S features an integrated high CHIRP sonar, the ideal sonar for reliable depth soundings and underwater discovery.

Get underway quickly with Axiom 2 Pro’s powerful 6-core processor. Chartplotter, radar, autopilot, and video are integrated seamlessly and faster with the super intuitive LightHouse operating system.

Axiom 2 Pro's HydroTough™ nano-coating technology repels water for reliable touchscreen control, enhanced colors, and excellent sunlight visibility.

Smart backlighting and an ambient light sensor automatically adjust display brightness for day and evening lighting conditions.

Plan and plot your course with HybridTouch™ control and take command with reliable keypad control when seas are rough.

Customize your Axiom 2 Pro with interchangeable keypads. Choose a dedicated Evolution autopilot keypad or user-programable soft keys.

Axiom 2 Pro offers a suite of powerful features to help you optimize your performance under sail.

Axiom is preloaded with over 500 racing and cruising sailboat polar profiles. Load your polar profile and see how you measure up against your boat’s maximum potential. View real-time, dynamic laylines on your chart based on polars or fixed angles.

Adjustable race timers, data dashboards, and a SmartStart™ starting line tool help you anticipate and visualize the start of your race. See line bias, time to burn as well as the favored end. Cross the line on time, at maximum power.

Sailing and tactical-specific dial indicators let you see the direction to steer at a glance to maximize your boat’s Velocity Made Good (VMG) to windward. Trimming sails for optimum performance is now easier than ever.

Specifications

Physical

Dimensions (Trunnion mounted)
Height: 186.2 mm (7.33 in), Width: 329.5 mm (12.97 in), Depth (including cables): 234.9 mm (9.25 in)

Dimensions (Surface/Flush mounted)
Height: 173.79 mm (6.84 in), Width: 299.32 mm (11.78 in), Depth (including cables): 234.9 mm (9.25 in)

Connections

Ethernet connection
2 RayNet (10/100/1,000 Mbits/s) ports

NMEA 2000 connection
DeviceNet connector

Wi-Fi
Multiband - 2.4GHz, and 5Ghz 802.11b/g/n

Bluetooth
v4.0

Accessory connection
USB Micro B

Internal storage
64GB Solid State

External storage
2 front mounted MicroSDXC card slots

Digital Video and Audio
HDMI Out Micro connector type D

Analog video connections
BNC Analog video input (on power cable)

Analog audio connections
RCA connectors via power cable

External GPS anternna
TNC connector

Power

Power consumption @ 12 V dc
33.12 W

Power consumption @ 24 V dc
30.96 W

Operating voltage range
8 V dc to 32 V dc

Nominal supply voltage
12 V dc / 24 V dc

Off current @ 12 V dc
11 mA (0.13 W)

Off current @ 24 V dc
18 mA (0.43 W)

LEN (NMEA 2000 Load Equivalency Number)
1

Current
5A

Fuse rating
15A

GPS (GNSS)

Position Accuracy
Without SBAS: ≤15 metres 95% of the time, With SBAS: ≤ 5 metres 95% of the time

Geodetic Datum
WGS-84 (alternatives can be selected on the MFD)

Satellite Differential Type (SBAS)
WAAS (United States), EGNOS (Europe), MSAS (Japan), GAGAN (India), QZSS (Japan)

Channels
Track up to 28 satellites simultaneously

GNSS compatibility
GPS, Galileo, GLONASS, Beidou

Refresh rate
10 Hz (10 times per second)

ENVIRONMENTAL

Operating temperature
-25°C to +55°C (-13°F to 131°F)

Waterproof rating
IPx6, IPx7

Display

Size (diagonal)
9.0"

Resolution
1280 x 720 HD

Viewing angle
Top 88° / Bottom 88° / Left 88° / Right 88°

Type
IPS (In-Plane Switching)

Viewing angle
Top 88° / Bottom 88° / Left 88° / Right 88°

Illumination
1300 nits / 1300 cd/m2

What's in the Box:

• Axiom 2 Pro 9S


• Suncover


• Gasket


• Trunnion knobs (x 2)


• Trunnion bracket (Axiom 2 Pro 9 and 12 Only)


• Optional grounding connection (Screw (M3x5), Spring washer (M3), Crimp terminal (M3))


• DeviceNet to SeaTalkng adaptor cable 1m (3.28 ft)


• RayNet (Female) to RayNet (Female) network cable 2 m (6.56 ft)


• Mounting fixings x4


• Documentation


• Power/Video/Audio cable 1.5 m (4.92 ft)
