Raymarine E12207 Type 2 12v Hydraulic Linear Drive

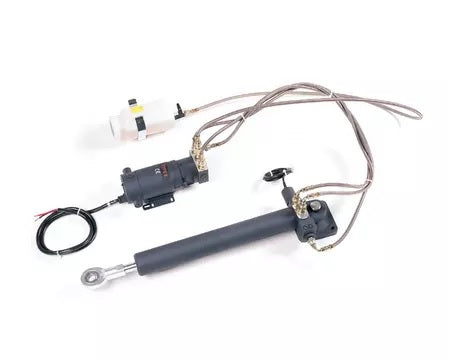

Designed for larger mechanically steered vessels over 20,000kg, our hydraulic linear drives are self-contained hydraulic steering systems consisting of a reversing pump, reservoir and hydraulic ram.

A hydraulic linear drive unit connects to the rudder stock via an independent tiller arm. Accessory fittings from your steering system manufacturer may be required. Must be able to back drive steering system for the rudder.

Maximum boat displacement
22,000 kg

Peak thrust
585 kg

Maximum stroke
254 mm

Hard-over to hard-over times
10 seconds

Maximum rudder torque
1,270 Nm

Corepack used
ACU-400
