Raymarine  |  SKU: E70227

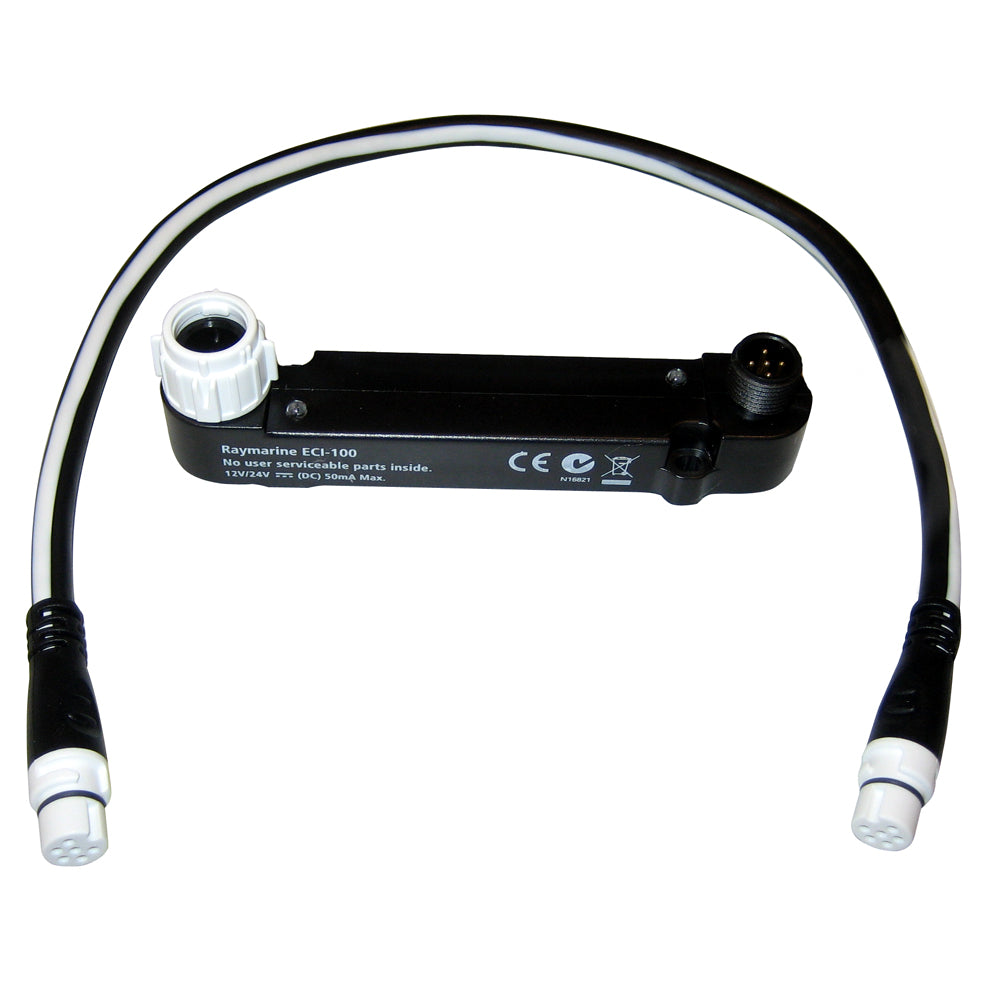

Raymarine ECI-100 Universal Engine & Control Interface

$348.99 $379.99
Shipping calculated at checkout.


Description

ECI-100 Universal Engine & Control Interface

The ECI-100 Universal Engine and Control Interface is an innovative and affordable solution for bridging engine instrumentation and drive-by-wire steering with Raymarine autopilot and navigation systems. A simple isolated CAN Bus solution, the ECI-100 offers reliable integration with Raymarine's latest generation of multifunction displays and also delivers a seamless autopilot steering interface to Raymarine's Evolution EV-2 Drive By Wire autopilot system.

Benefits:


  • A simple, single point of connection for engine data and drive-by-wire autopilot control


  • Affordable and uncomplicated solution eliminates the need for multiple engine and autopilot gateways


  • Brings Raymarine's Evolution 9-axis sensor and adaptive autopilot control to drive-by-wire propulsion without the need for a proprietary autopilot gateway


  • View engine data displays and enjoy full autopilot control alongside Raymarine's industry-leading radar, sonar and navigation technologies using a single touch screen display.


  • From our space saving aSeries, to our flagship big screen gS Series, engine information displays and autopilot control are available on any display running LightHouse v8 or later


  • Access easy to customize displays to show engine performance data, fuel consumption, alarms, and much more


  • View engine information displays on your smart phone or tablet with Raymarine mobile apps


  • Simple to install ECI-100 makes engine and navigation integration a reality for virtually any size vessel



ECI-100 Engine Data Parameters
The ECI-100 Universal Engine and Control Interface identifies the following parameters:

  • Engine speed


  • Engine oil temperature


  • Engine temperature


  • Engine oil pressure


  • Engine coolant pressure


  • Engine fuel rate


  • Boost pressure


  • Battery potential


  • Transmission oil pressure


  • Transmission oil temperature


  • Total engine hours


  • Fuel tank level


  • Trip fuel used (calculated by ECI-100)


  • Alternator potential


  • Engine torque


  • Engine percent load


  • Transmission gear


  • VIN (not shown on the display)


  • Software number (not shown on the display)



Simple Integration, Powerful Performance
The ultra-compact ECI-100 connects directly to the industry-standard NMEA2000 or SAE* J1939 Engine Data Bus used by major marine engine manufacturers including:

  • Volvo Penta


  • Yamaha Marine (Command Link Plus only)


  • Caterpillar


  • Yanmar Marine



Raymarine is committed to delivering seamless integration with leading marine engines. Visit www.raymarine.com for the latest engine compatibility information.

An industry standard DeviceNet port connects the ECI-100 to manufacturerspecific CAN bus cabling. The ECI-100 then connects to NMEA2000 networks using the SeaTalkng cabling system. Each of the ECI-100's isolated ports is powered independently ensuring reliable, worry-free performance from both navigation electronics and engine systems.

* SAE - Society of Automotive Engineers standard
