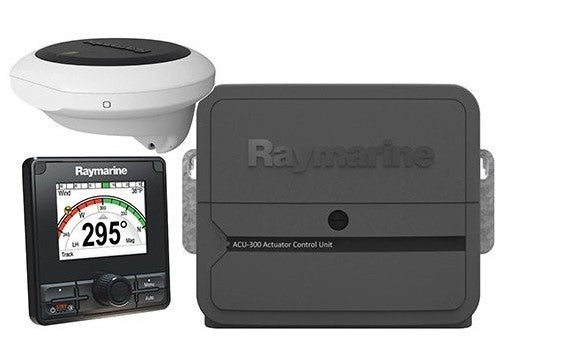

Raymarine EV300 Solenoid Autopilot
Raymarine EV300 Solenoid
Autopilot
Model: T70160- For vessels with solenoid controlled hydraulic steering
- Evolution Ai for superior performance
- No calibration required
- SeaTalkNG Network Compatible
- ACU-300 auxiliary power to SeaTalkNG network
Evolution EV-300 Solenoid Autopilot Kit without Drive for Power Vessels by Raymarine®. No fuss, easy to install and robust - the Evolution autopilot combines Raymarine's autopilot expertise, FLIR Systems' R&D, and advanced aerospace guidance technology to create Evolution Ai control algorithms that deliver a new level of accurate autopilot control.
SpecificationsACU Nominal Power supply
12 V or 24 V
ACU Operating voltage range
10.8 V to 31.2 V dc
ACU Power consumption (standby) — main power supply
300 mA (12 / 24 V)
ACU Power consumption(standby) — SeaTalkng power supply
20 mA (12 V)
ACU SeaTalkng LEN (Load Equivalency Number)
1
ACU SeaTalkng LEN (Load Equivalency Number)
3 A at 12 V (fuse protected at 3 A)
ACU Data connections
SeaTalkng
ACU Waterproofing rating
drip resistant
ACU Operating temperature
-20°C to +55°C (-4°F to +131°F)
ACU Relative Humidity
max 93%
ACU Weight
2.2 kg (4.84 lbs)
EV Sensor Nominal Power supply
12 V (powered by SeaTalkng system)
EV Sensor Operating voltage range
10.8 V to 15.6 V dc
EV Sensor Power consumption
30 mA
EV Sensor SeaTalkng LEN (Load Equivalency Number)
1
EV Sensor Waterproofing rating
IPX 6
EV Sensor Operating temperature
-20°C to +55°C (-4°F to +131°F)
EV Sensor Relative Humidity
max 93%
EV Sensor Sensors
3-axis digital accelerometer; 3-axis digital compass and 3-axis gyro digital angular rate sensor
EV Sensor Weight
0.29 kg (0.64 lbs)
What's in the Box:
- EV-1 Sensor Core
- p70R Autopilot Control Head
- ACU-300 Actuator Control Unit (Includes the M81105 Rotary Rudder Reference)
- Evolution Cabling Kit
- EV Unit O-Ring Pack (set of 2)
- Wall Mounting Bracket
