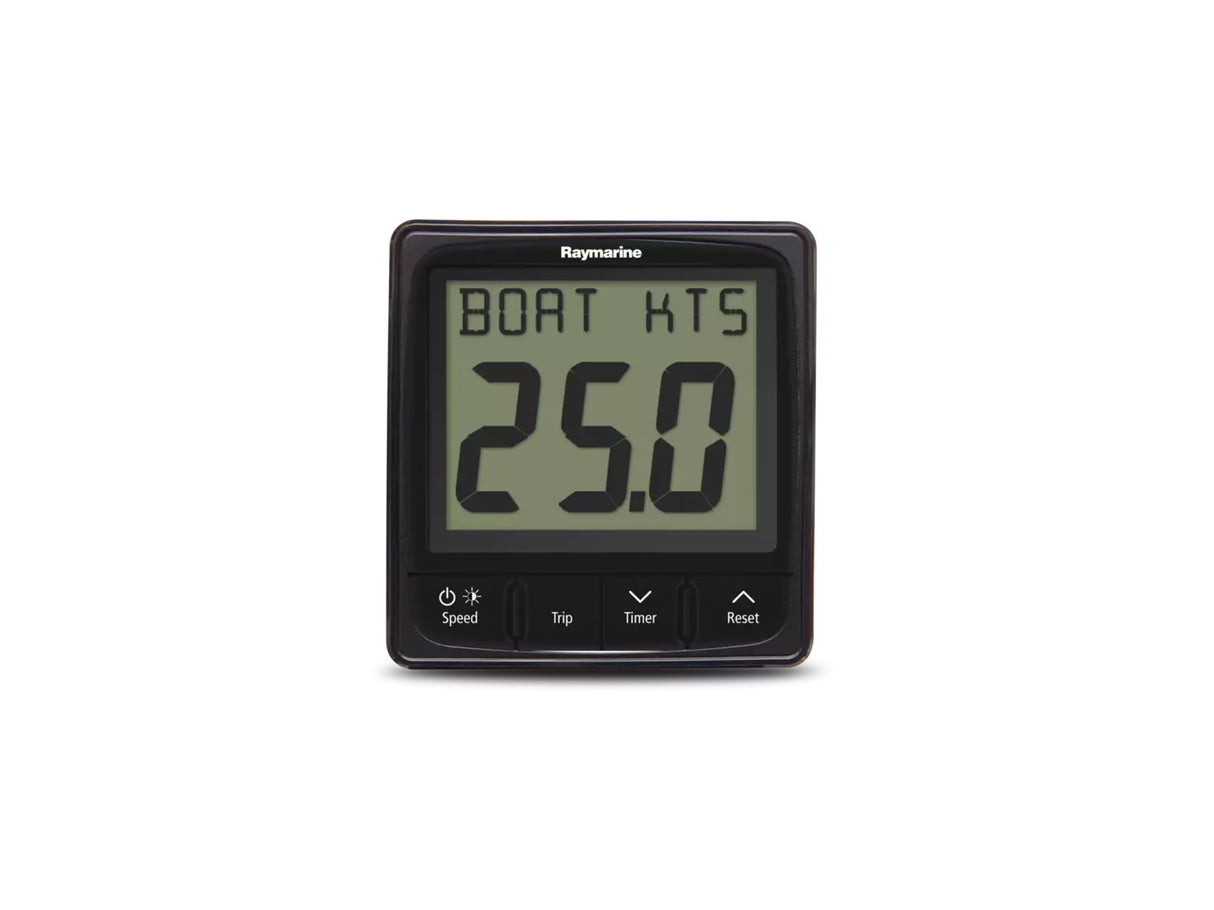

Raymarine i50 Speed System With ST900/P120 Retractable Speed/Temp Thru-Hull

Raymarine i50 Speed System With ST900/P120 Retractable Speed/Temp Thru-Hull

Raymarine i50 Speed Pack with ST900/P120 Retractable Thru-Hull

• Oversized digits for easy viewing by day or night


• Red backlighting enhances night visibility


• SeaTalk NG, NMEA2000 and SeaTalk network compatible


• Built-in speed/temperature transducer interface


• Compact footprint


• Low power consumption


• Surface mount or optional trunnion mount kit

The i50 Speed instrument display is designed for easy viewing of your boat’s speed through the water or speed over ground. The i50 Speed instrument can also display trip and log data as well as water temperature. Ideal for use on RIBs, powerboats, and small yachts, the compact yet surprisingly powerful SeaTalk i40 Depth instrument display can be easily seen, even when the lighting conditions are low thanks to its oversized digits and extra-sharp LCDs.

All i50 instruments are designed to fully integrate with Raymarine’s autopilots and other navigation equipment. Each i50 instrument can be configured as a Master display, hosting its own transducer, or as a Repeater display, showing information from another source on the network. I50 instruments are SeaTalkng network-ready and can be easily adapted to connect to NMEA2000 or older SeaTalk networks.

Dimensions
Width: 110 mm (4.22 in), Height: 115 mm (4.52 in), Depth: 44 mm (1.7 in)

Connections
2 x SeaTalkng connections (compliant with SeaTalk), Transducer connections

ENVIRONMENTAL

Relative humidity
Max. 93%

Waterproof rating
IPx6

Storage temperature
-30 °C to +70 °C (-22 °F to 158 °F)

Operating temperature
-20 °C to +55 °C (-13 °F to 131 °F)

POWER

Current (typical / max)
45-65 mA (display only) / 200 mA maximum (transducer connected)c

Nominal supply voltage
12 V dc

Operating voltage range
10 V dc to 16 V dc

Power consumption
< 1 W typical (display only), 2.4 W maximum (transducer connected)

LEN (NMEA 2000 Load Equivalency Number)
4

What's in the Box:

• i50 Instrument display


• Suncover (to match i70s, p70s, p70Rs, eS Series)


• Front bezel (to match i70s, p70s, p70Rs, eS Series)


• Gasket


• Suncover (to match a, c, e Series)


• Front bezel (to match a, c, e Series)


• 400mm (15.7 in) SeaTalkng spur cable


• SeaTalkng blanking plug


• Fixing screws x4


• Documentation


• ST900/P120 Speed/Temp transducer
