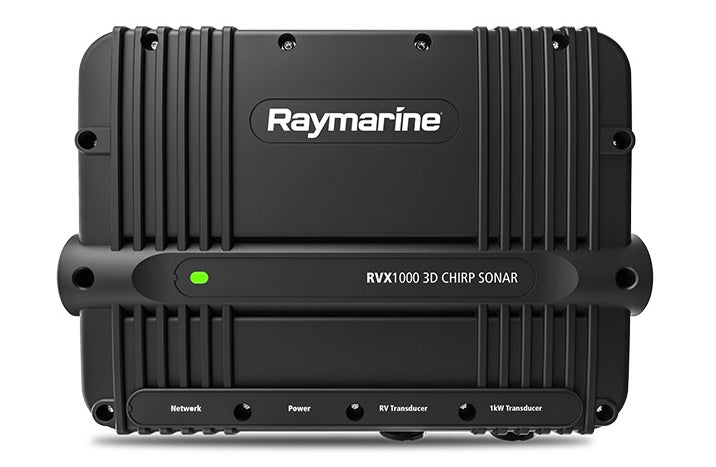

Raymarine RVX1000 3D CHIRP Sonar Module

Raymarine RVX1000 3D CHIRP Sonar Module

Raymarine RVX1000 High Performance 3D CHIRP Sonar Module

• RealVision 3D


• CHIRP SideVision


• CHIRP DownVision


• Low-power, high-frequency CHIRP


• 1kW high-powered CHIRP Sonar (Low, Medium, High CHIRP, 50/80/100/160/200kHz)

The RVX1000 offers all of the sonar performance and features of Raymarine Axiom Pro in a remotely mounted black box sonar module. With Raymarine’s award winning RealVision 3D sonar technology, CHIRP Side and DownVision, plus a high powered 1kW dual channel CHIRP sonar, the RVX1000 is a versatile sonar solution for both inshore and offshore fishing.

Easily identify structure and locate fish with the life-like clarity of RealVision 3D sonar. Sonar Scroll Back - rewind, pause and playback up to 10 minutes recorded sonar history to take a closer look at fish and structure, and easily plot waypoints. TruZoom™ magnification reveals extra target detail without loss of resolution.

RealVision 3D™ sonar with GPS Track feature uses precision GPS to construct the most accurate 3D model of the underwater world, in real-time.

Powerful 3D sonar upgrade solution for Raymarine eS and gS Series line of multifunction displays.

The RVX1000’s dedicated quad core processor allows previous generation MFD’s to run multiple sonar channels simultaneously without any compromise in performance.

Sonar
RealVision 3D (CHIRP Side and DownVision, High Frequency CHIRP, 3D Sonar) + 1kW High Power CHIRP

Sonar Depth
High Frequency CHIRP = 900 feet, DownVision = 600 feet, SideVision = 300 feet Port and Starboard, 1kw = 5,000 feet

Connections
1x RVX Port = 25 pin RealVision connector, 1x 1kw Port = 11 pin 1kW connector, 1x Power connection, 1x Raynet connection

Waterproof Rating
IPX6/IPX7

Operating Temperature
-25 C (-13 F) to +55 C (+131 F)

Storage Temperature
-30 C (-22 F) to +70 C (+158 F)

Display Compatibility

Axiom / Axiom Pro (LH3.4.xx or later)
Compatible with full feature set

eS Series / gS Series (LH3.4.xx or later)
Compatible with full feature set

Transducer Compatability
REALVISION 25-PIN TRANSDUCER OPTIONS

RealVision™ Transducers
Direct connect to 25-pin port

CPT-S Transducers
Adapter A80490 to connect to 25-pin port

DownVision™ Transducers
Adapter A80490 to connect to 25-pin port

1KW 11-PIN TRANSDUCER OPTIONS

Airmar CHIRP
Direct connect to 11-pin port. When using only one half of an Airmar transducer pair (e.g. B175) use the A80328 Adapter.

Airmar 50/200kHz CP370 Connector
Adapter A80496 to connect to 11-pin port

Airmar 50/200kHz Embedded Connector
Not supported on RVX1000. Airmar transducers with the embedded connector are non-differential and therefore, do not align with the pin configuration of the RVX1000 1kW port.

NOTE: Axiom Y-Cables are not supported on the RVX1000

Input Voltage
10.8 V to 31.2 V DC

Input Draw
10.4 W (Maximum)

What's in the Box:

• RVX1000 Sonar Module


• Power Cable, 1.5M


• Fixing Screws, #8 (4)


• Documentation Pack (1)


• RayNet Network Cable, 2M (1)
