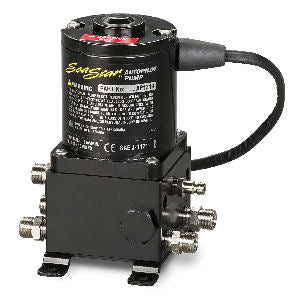

Seastar AP1219 Type 1 12v Pump 60CU Inch/Min

Seastar AP1219 Type 1 12v Pump 60CU Inch/Min

The Seastar Autopilot pump is a fixed flow, reversible pump set that uses an internal hydraulic gear pump, producing very little vibration or noise. It is offered in two different pump sizes (type 1 & type 2).

AUTOPILOT ? KEY FEATURES

• Long life DC Motor (i.e. long life brushes)




• Compact design




• Simplified installation




• Low power consumption




• ABYC, CE?s and J1171 compliant




• Superior corrosion resistance




• Quiet operation




• All mounting bracket displacement included




Voltage

12 volt

Fittings

Compatible w/ Standard Seastar Hose - Thread 9/16" X 24 UNEF

Wire Details

Length

24"

Gauge

12 awg

Connector

None - Bare Leads

Oil Compatibility

Seastar Steering Fluid (MIL 5606)

Weight

4.9 lbs (2.2 kg)

Pump Sizes

Type 1: 60 in3/min (no-load)

Type 2: 100 in3/min (no-load)

Maximum Pressure

1000 psi

Typical Current Draw

12V Type 1: 4 ? 8 amps

(Depending on Application)

12V Type 2: 5 ? 11 amps

Ram Capacity

Type 1

4.9 in³ - 14 in³

Type 2

14 in³ - 21 in³
