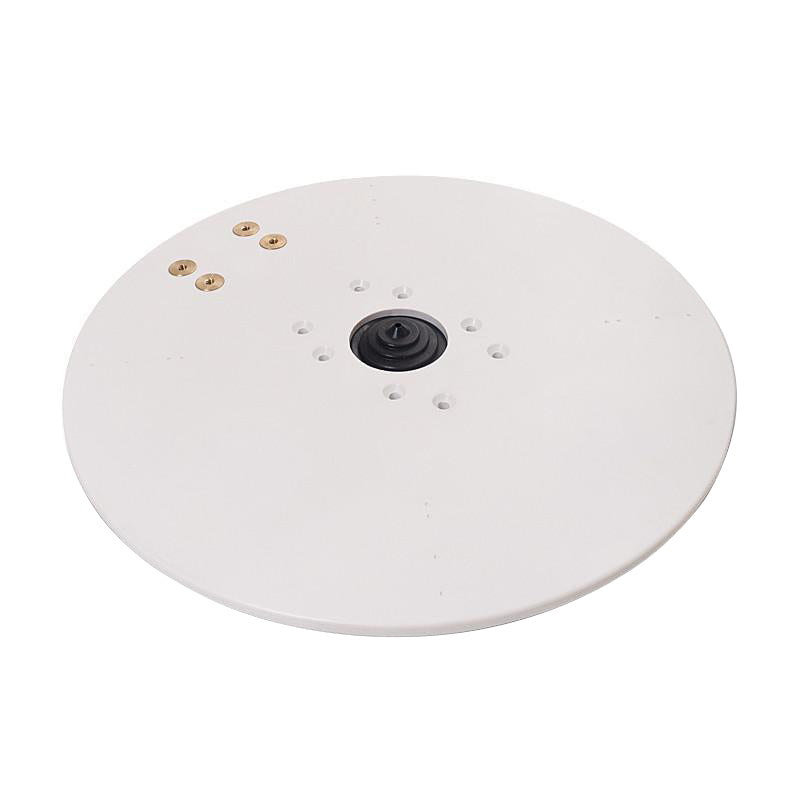

Seaview ADAS2 Plate For Medium Satelitte Domes

Seaview ADAS2 Plate For Medium Satelitte Domes

Seaview's innovative new modular electronic mounts feature a unique universal plate design that provides a cleaner look and greater installation flexibility. A pre-drilled anodized aluminum plate is incased inside the UV stable white ABS plastic. There are dimple holes on the top surface of the top plate match up with a drill template allowing you to precisely drill the appropriate holes for your specific radar. The end result is a nice clean look with no unwanted visible holes.

This modular Top Plate fits:

Intellian i4 / k4 / d4 / i6 / k6 / d6 / S60 / FB500

KVH M5 / M7 / Trac 50 / HD7 / V7 / F55

Raymarine 45STV / 60STV

Sea-King 1800HD

Sea-Tel (Cobham) C18 / C24 / ST24 / USAT24

VDO Ocean Line 345 / 360 / 445 / 460.

Features:

• No more unwanted visible holes in the mounting plate!
• Easy 3 step modular system.
• Aft, forward, vertical and dual mount designs..
• Easily add on accessories such as lightbars, spreader kits, hinges, wedges and much more!



Step 1
Select Mount Type this will be the base for the system
Closed Dome Radar, Small Satdomes (16" or smaller) & Cameras
PMF-57-M1 5"   Modular Mnt/ FWD raked / 7 x 7 base plate / Light bar compatible / Top plate required PMF-107-M1 10" Modular Mnt/ FWD raked / 7 x 7 base plate / Light bar compatible / Top plate required PMA-57-M1 5"   Modular Mnt/ AFT raked / 7 x 7 base plate / Light bar compatible / Top plate required PMA-107-M1 10" Modular Mnt/ AFT raked / 7 x 7 base plate / Light bar compatible / Top plate required PMA-167-M1 16" Modular Mnt/ AFT raked / 7 x 7 base plate / Light bar compatible / Top plate required PMA-247-M1 24" Modular Mnt/ AFT raked / 7 x 7 base plate / Light bar compatible / Top plate required PMA-367-M1 36" Modular Mnt/ AFT raked / 7 x 7 base plate / Light bar compatible / Top plate required AM5-M1 5"     Modular Mnt/ Vertical / 8" Rnd base plate / Light bar compatible / Top plate required AM12-M1 12"   Modular Mnt/ Vertical / 8" Rnd base plate / Light bar compatible / Top plate required AM18-M1 18"   Modular Mnt/ Vertical / 8" Rnd base plate / Light bar compatible / Top plate required Open Array Radar
PMA-57-M1 5"   Modular Mnt/ AFT raked / 7 x 7 base plate / Light bar compatible / Top plate required PMF-57-M1 5"   Modular Mnt/ FWD raked / 7 x 7 base plate / Light bar compatible / Top plate required Large Satdomes (18" - 24")
PMA-57-M1 5"   Modular Mnt/ AFT raked / 7 x 7 base plate / Light bar compatible / Top plate required PMA-1210-M2 12" Modular Mnt/ AFT raked / 10 x 10 base plate / Light bar compatible / Top plate required PMA-1810-M2 18" Modular Mnt/ AFT raked / 10 x 10 base plate / Light bar compatible / Top plate required Dual Mount & Arches
PMA-DM1-M2 12.5" Dual Mount pre-drilled for most closed dome Radars. Top for Satellite domes  / Top plate required PMA-DM124-M2 (***) 32.5" Extended Dual Mount pre-drilled for most closed dome Radars. Top for Satellite domes  / Top plate required PMA-DM2-M2 22.5" Dual Mount pre-drilled for up to 4.5 ft. Open Array Radar. Top for Satellite domes  / Top plate required PMA-DM3-M2 28"    Dual Mount pre-drilled for up to 4.5 ft. Open Array Radar. Top for Satellite domes  / Top plate required Step 2
Choose Top Plate
Radar (closed dome & open array 4'-6')
ADA-R1 Modular plate for almost ALL closed dome and open array radars (Confirm proper fit with ref guide) ADA-R2 Modular plate for 24" JRC / Lowrance 2400HD / Northstar & Simrad DX64S Domes Satdome
ADA-S1 ¹ Modular plate for KVH M1/M2/M3 , Intellian i1/i2/i3, Raymarine 33/37STV, SeaKing 1500/1800-HD, SeaTel ST14
ADA-S2 Modular plate for KVH M5/M7, Intellian i4/i6/d6, Raymarine 45/60STV, SeaTel C18/C24 ADA-S3 ² Modular plate for KVH M1, Intellian i1/i2, Raymarine 33STV, SeaKing 1500/1800-HD
ADA-S4 Modular plate for ALL FB150 & FB250 domes ADA-F1 Modular plate for FLIR M or Ray T series thermal cameras Step 3
Choose Optional Accessories
Light / GPS Bars
(Light bar top accessory required, see below)
LTB-R 1 1/4" Light bar for closed dome radar / folds over 90 deg. / Must pick a LTB TOP below
LTB-OA 1 1/4" Light bar for open array radar up to 4.5 ft. / Must pick a LTB TOP below
LTB-OA6 1 1/4" Light bar for open array radar at 6 ft. / Must pick a LTB TOP below
LTB-S 1 1/4" Light bar for 18" or smaller satdomes / folds over 90 deg. / Must pick a LTB TOP below
LTB-S24 1 1/4" Light bar for 24" satdomes / folds over 90 deg. / Must pick a LTB TOP below
LTB-SF (***) 1 1/4" Light bar for FLIR M or Raymarine T series thermal camera and light / Must pick a LTB TOP below
Light Bar Tops
(LTB TOP required with light bars above)
LTB-U
(LTB TOP) Standard 1-14 thread for GPS or similar
LTB-U1A
(LTB TOP) Universal Light bar top for mounting your own light and or GPS
LTBP-1197
(LTB TOP) Perko 1197 light with 7' of wire / USCG approved for boats up to 20 meters (65. 6 ft) in length.
LTBA-7800
(LTB TOP) Attwood LED 7800 ser. light with 7' of wire / USCG approved for boats up to 20 meters (65. 6 ft).
LTB-BOX
(LTB TOP) Universal box top for All-round, Masthead & Stern (lights not included)
Light Bar Accessories
  PM-114LT-DLX Floodlight kit for 1 1/4 in. dia. LTB  (includes 4" X 6" 55-watt 14V quartz halogen floodlight & hardware) PM-114LT-LED (***) Floodlight kit for 1 1/4 in. dia. LTB  (includes LED floodlight & hardware)  PM-U2A Light bar adapter to mount a light and 2 GPS (electronics not included) Base Wedge   PM-W4-7 4 degree wedge/ for 7x7 radar mount base plate PM-W4-8 4 degree wedge/ for 8x8 radar mount base plate Hinge Adapters for base plate
  PM-H7 Hinge adapter/ for 7x7 base plate/  (fits most 5 -16 in. tall Radar Mounts) PM-H8 Hinge adapter/ for 8x8 base plate/  (fits most 24 -36 in. tall Radar Mounts)
