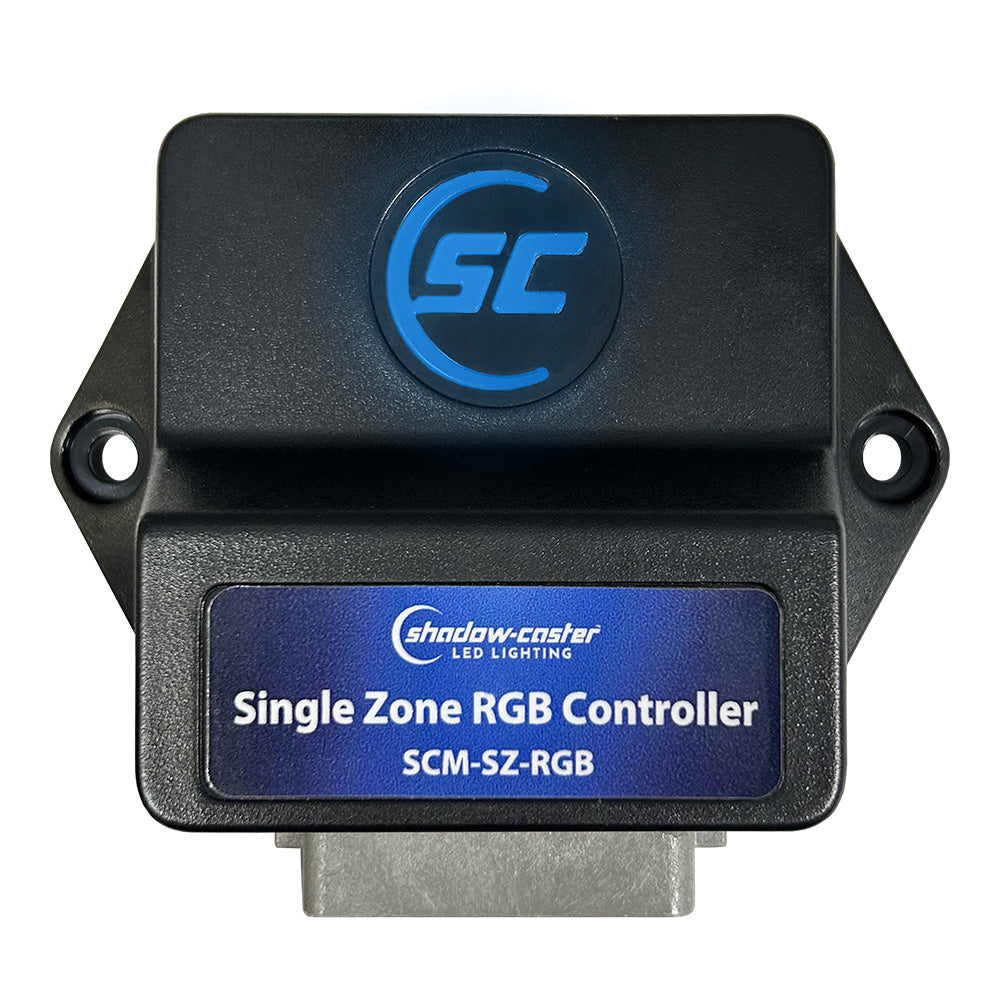

Shadow-Caster Single Zone RGB(W) Controller

Single Zone RGB(W) Controller

The Shadow-Caster® Single Zone Lighting Control is a low-cost, marine-grade RGBW LED controller that can be operated from a standard push-button switch to set color and brightness.

The Single Zone Controller also has a built-in Shadow-NET® interface that allows the controller to synchronize color and brightness control with other Shadow-NET® devices, for example, to make Shadow-Caster® underwater lights match the color of interior RGBW lighting.

Features:

• Shadow-NET® enabled for expansion and use with other Shadow-Caster® products


• The Backlit SC logo indicates brightness and color, or it flashes red if a fault is detected


• Supports color rotation, single-color fade, and multi-color fade


• Auto-detect for the white channel


• Integrated overcurrent protection


• Operate from an off/on/momentary switch or a single momentary push button


• Use the SCM-RGB-EXP expansion module to provide expanded RGBW capacity for an extra zone, wherever it is needed on a boat

Specifications:

• Current Draw: 10A max


• Hosing & Connector IP Rating: IP67


• Voltage: 12V/24V operation compatible


• Dimensions: 3.5” x 2.9” x 1.2” (88 x 72.4 x 30.6mm)
