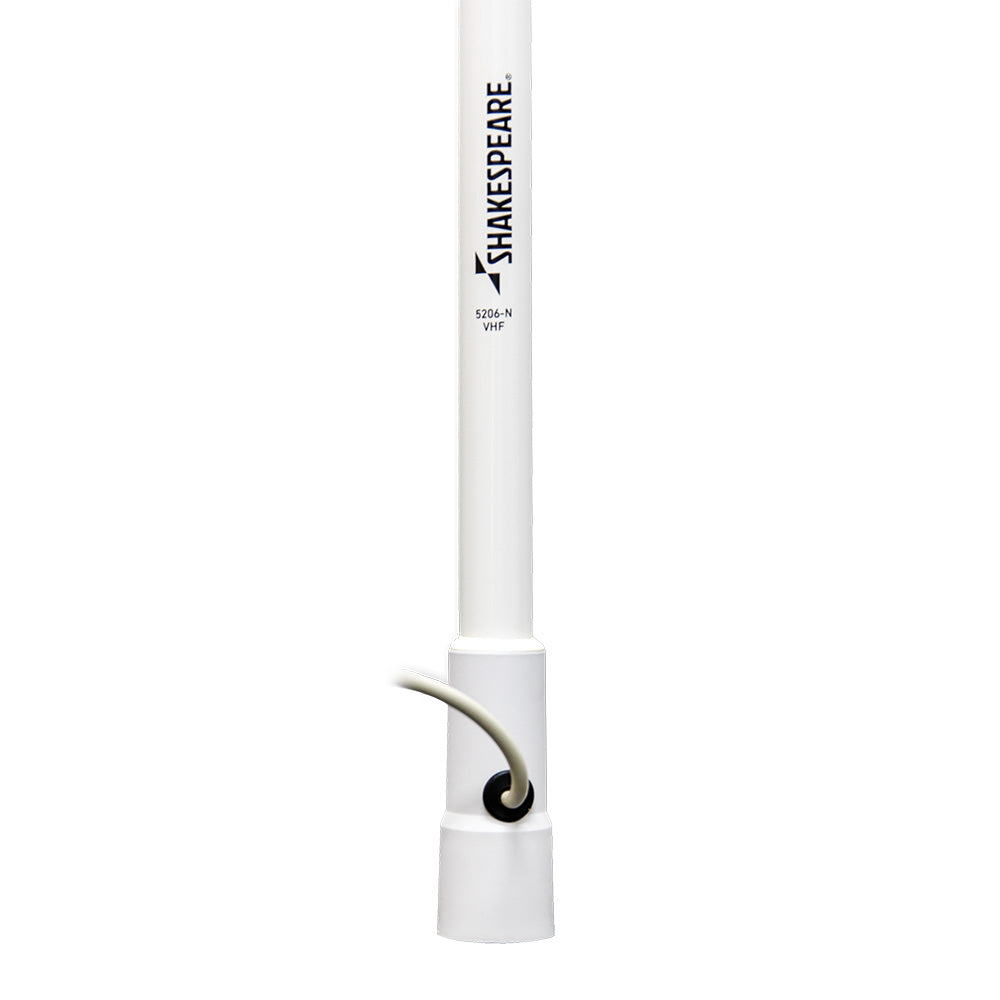

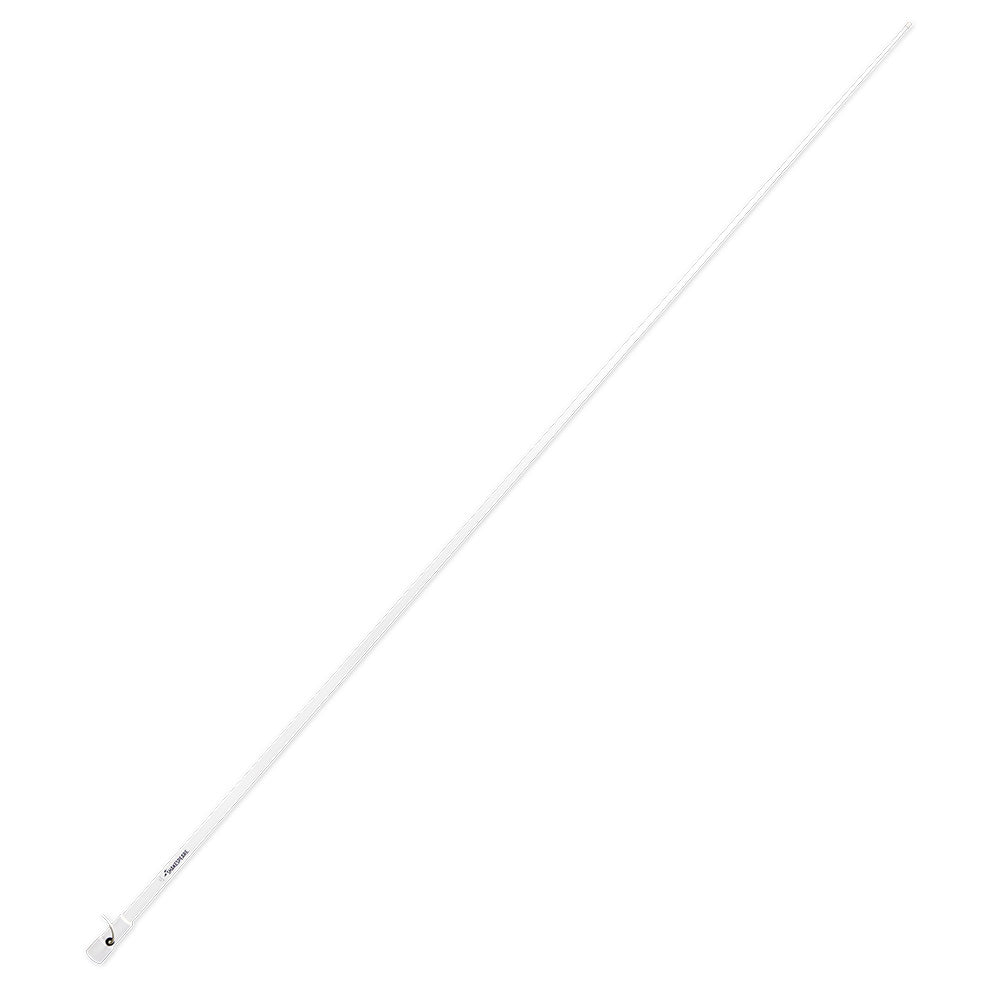

Shakespeare 5206-N 8' VHF Antenna

Shakespeare Style 5206-N VHF Marine - Reduced Length Version

8' LENGTH 6dB

END-FED WITH MATCHING STUB

Same as the Style 5206-C, but the 5206-N has a nylon ferrule.

An economical and lightweight, self-supporting antenna for good communications where range is not the predominant factor.

• Quality copper cable elements for good range and efficiency




• Nylon ferrule with standard 1"-14 thread




• Includes 15' RG-58 cable and a PL-259 connector




• Suggested mount: Shakespeare Style 495 Lift-n-Lay Mount or Style 4186 Ratchet Mount




• Twin to: Shakespeare Styles 5205 and 5207 CB Marine antennas




• One section




• Shakespeare Limited Warranty: 2 years

Frequency:
VHF Marine band

Bandwidth:
3 MHz

SWR:
1.5:1 @156.8 MHz

Impedance:
(Ohms): 50

Gain:
6 dB

Max Input (Watts):
50

DC Ground:
NO - the antenna will read "open circuit" when checked with an ohm meter or continuity tester.

Termination:
RG-58

Height (feet):
8

Polarization:
Vertical

Radiation pattern:
Omni-directional
