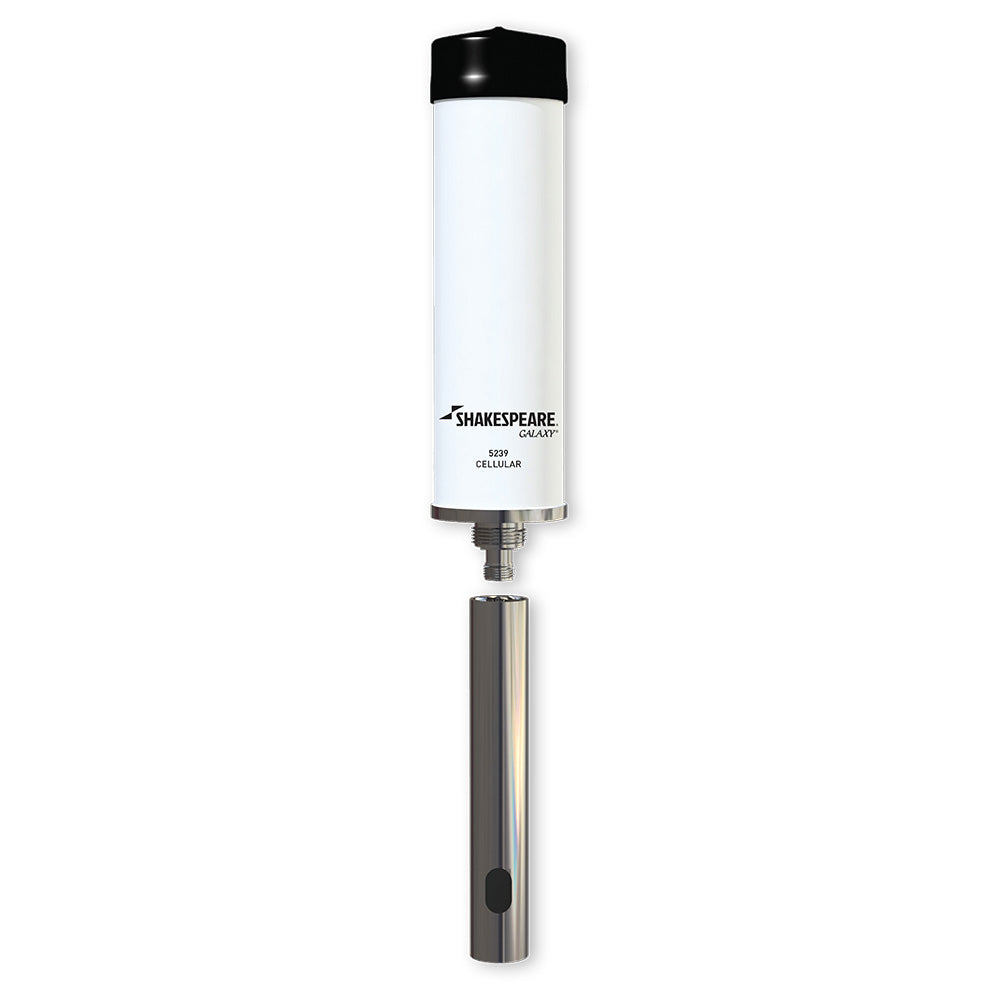

Shakespeare Cellular/Wi-Fi World Band Galaxy Antenna

Cellular/Wi-Fi World Band Galaxy Antenna

The Galaxy 5239 antenna is Shakespeare's smallest Galaxy antenna, but don't let the size fool you. This World-band antenna provides coverage for 2G/3G/4G and WLAN systems for Cellular, PCS, AWS and LTE frequencies, as well as 802.11n Wi-Fi. This compact, feature rich antenna is at home on virtually any watercraft, and is fitted with a stainless steel ferrule and N-connector that are compatible with nearly all Shakespeare 1in -14 threaded mounts.

Features:

• Full Band (698 - 2700 MHz) Broadband


• 2G/3G/4G and WLAN systems


• Wi-Fi 802.11n compatible


• Designed for marine use


• Omni-directional antenna 3-4 dB Gain.


• Easy to install


• Includes FME Cables

Specifications:

• Frequency: 698-960/1700-2700 MHz


• Input Impedence: 50 ohm


• Antenna Gain: 2-3dB @ 698-960/3-4dB @ 1700-2700 MHz


• VSWR: ≤ 1.8


• Power Rating (W): 10


• Polarization Type: Vertical


• Radiation: Omni-Directional


• Maximum Power (W): 100


• Connector Type: N-female


• Dimension: 9.25" H x 2.625" D


• Color: White


• Operating Temperature (F): -22 to +176


• Mounting: 1" x 14 Thread Mount


• Ground Plane: Internal


• Material: Fiberglass
