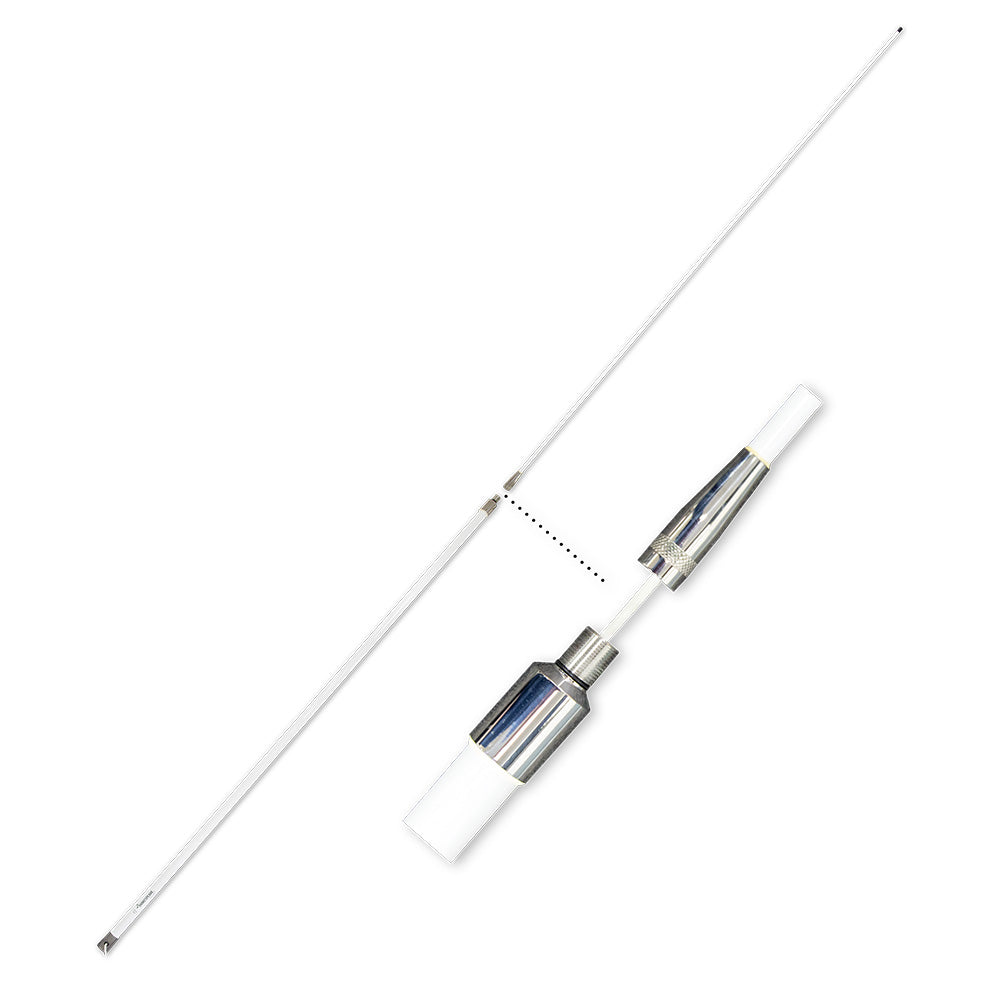

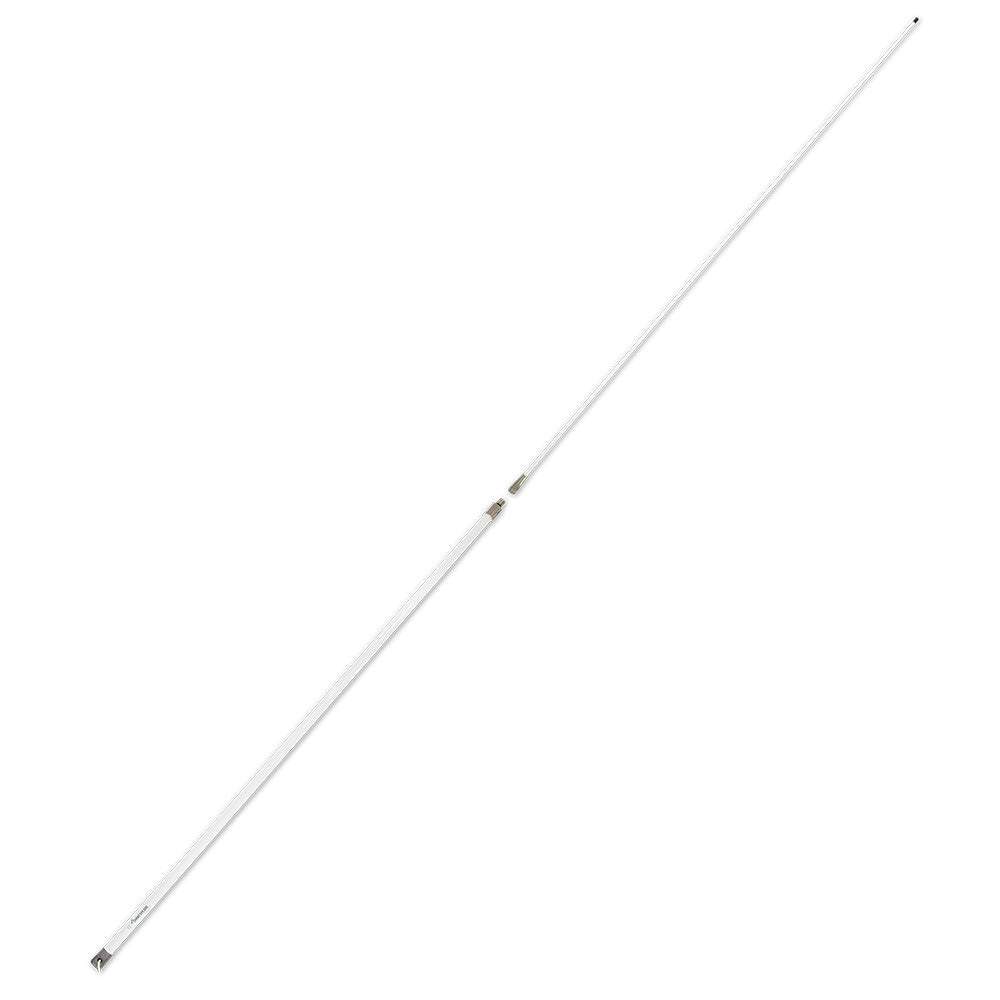

Shakespeare Galaxy 5018 15' 2” VHF Antenna - 6dB Gain

Galaxy 5018 15' 2” VHF Antenna - 6dB Gain

This highly sophisticated design is outstanding for long distance communications. Extra rugged for salt water durability, and stability in high seas. Surprisingly light weight.

Features:

• Phased 1/2 wave elements in a collinear array with choking sleeve to suppress cable radiation


• Brass and copper elements for maximum range and efficiency

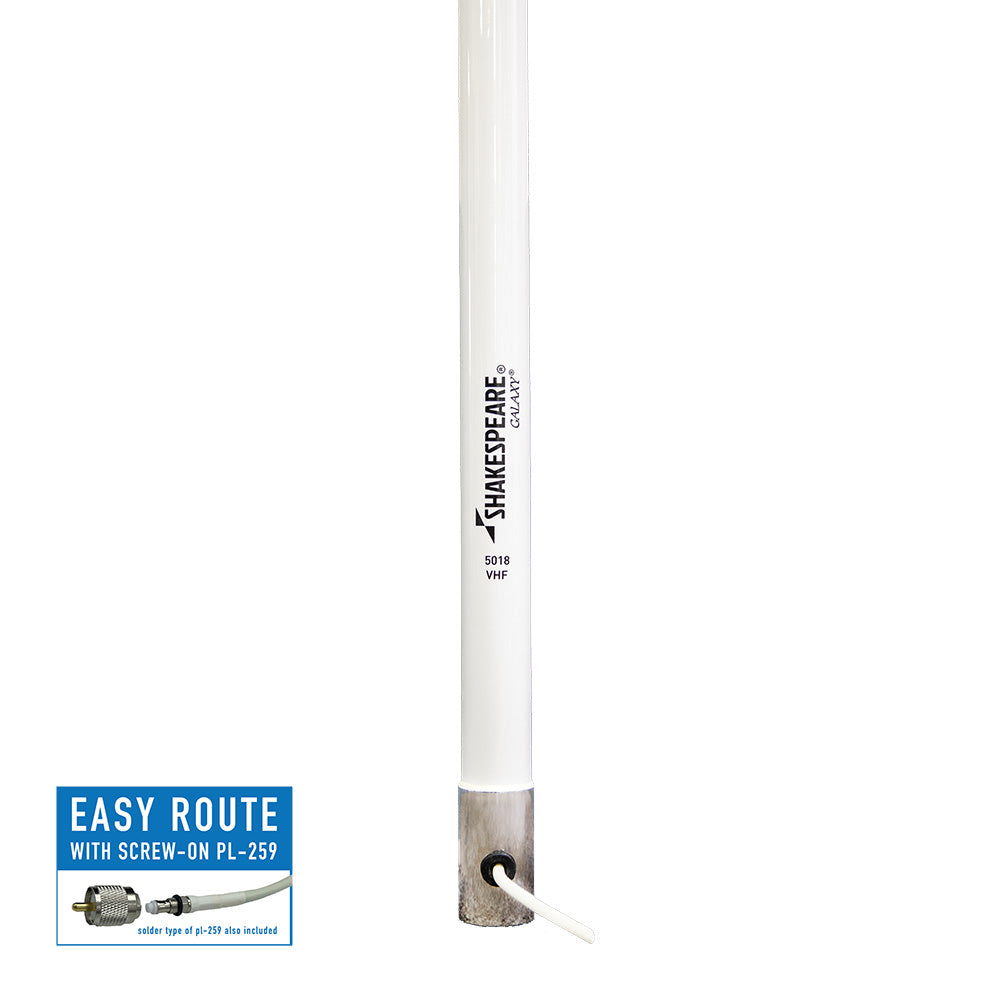

• Stainless steel ferrule with standard 1"-14 thread


• 20' RG-8/X low-loss cable plus a PL-259 connector


• Suggested Mount: Shakespeare Style 409-R or 410-R Mounting Kit (pictured mount not included)


• Two sectiions


• 5 Year Warranty

Technical Specifications:

• Gain: 9dB


• Frequency: VHF Marine Band


• Bandwidth: (within 2.0:1 VSWR) 3 MHz


• SWR: 1.5:1 at 156.8 MHz


• Max Input (Watts): 150W


• DC Ground: NO


• Height (Feet): 15'2"


• Polarization: Vertical
