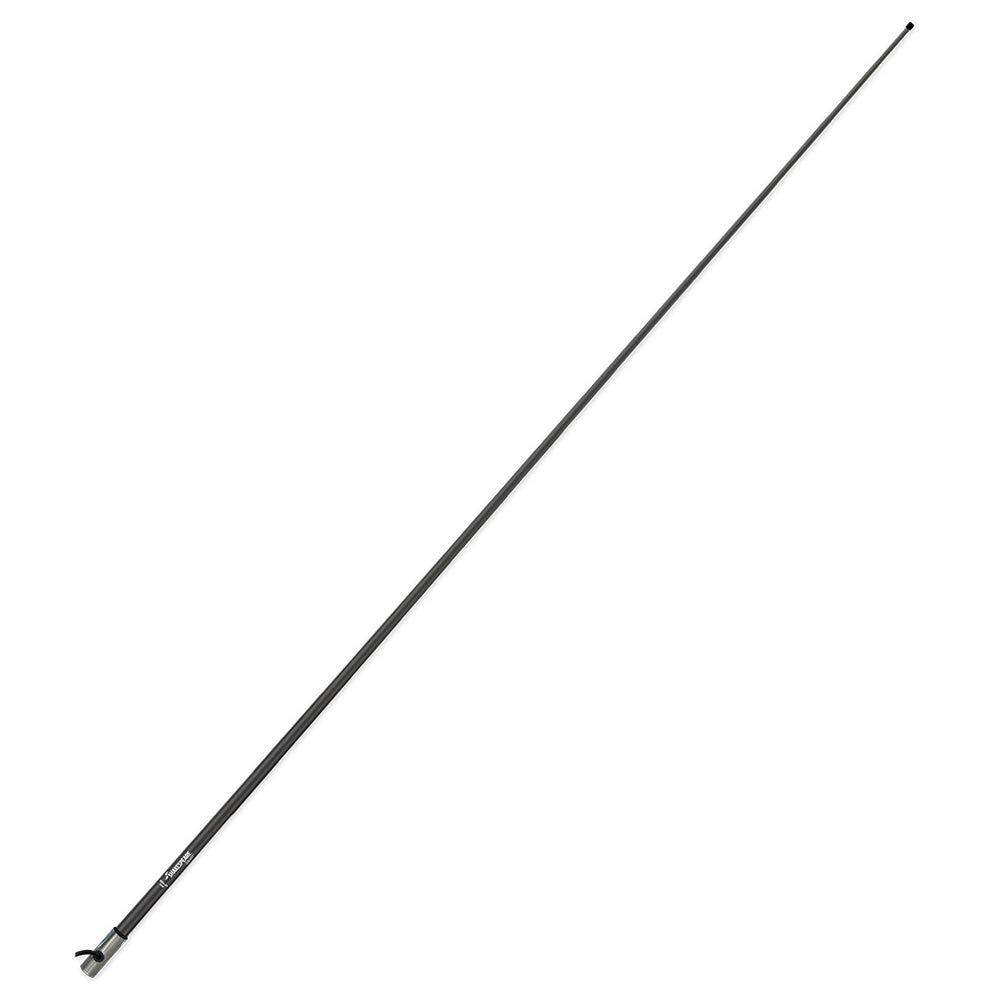

Shakespeare Galaxy 5226-XT 8' Black VHF Antenna - 6dB Gain

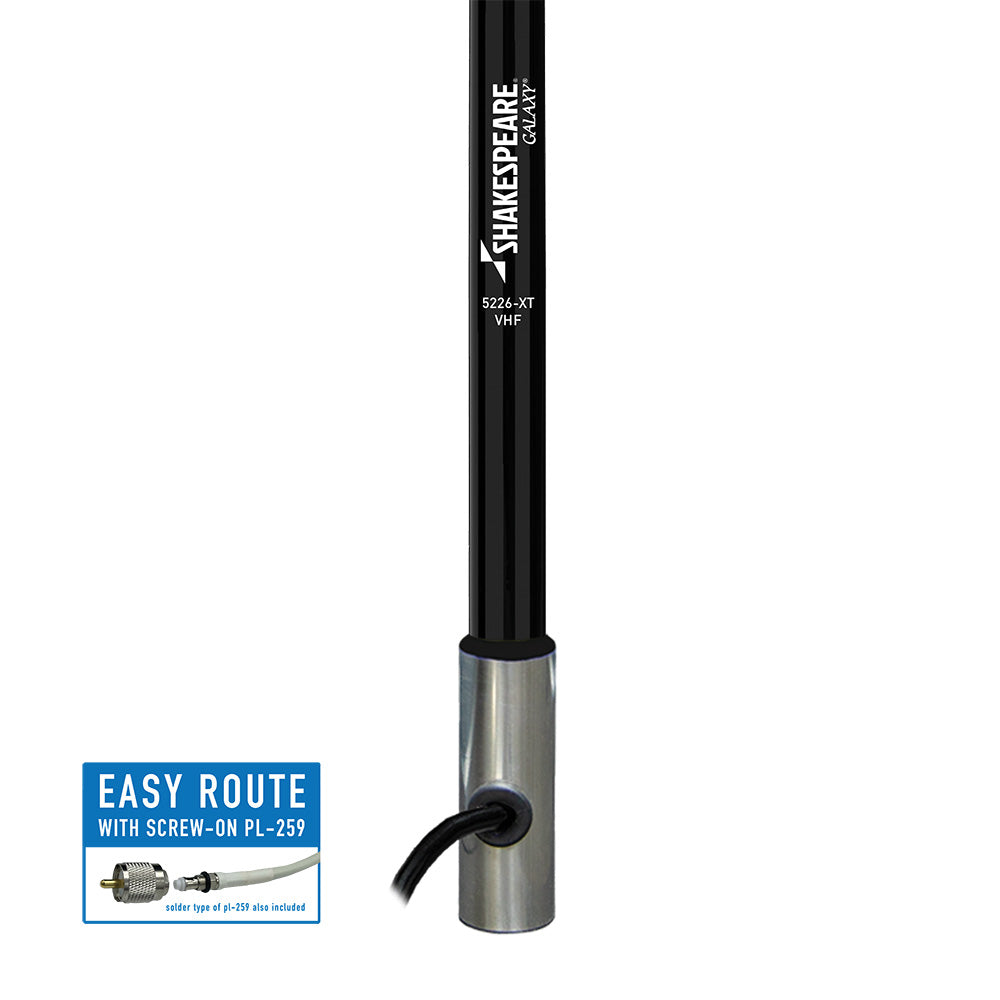

Galaxy 5226-XT 8' Black VHF Antenna - 6dB Gain

EXTRA TOUGH!

This antenna is the same as Style 5225-XT( Reduced length version) but with the exclusive Galaxy gloss black finish. It's Shakespeares best maximum range and quality in a great looking Galaxy antenna. The new 5225-XT is Shakespeares classic Style 5225 in a new, stronger, stiffer radome. Its extra tough for use on hard tops, T-tops, radar arches, or wherever its extra resistance to high winds and high speeds is welcome.

Features:

• Collinear-phased 5/8 wave elements


• Brass and copper elements for maximum range and efficiency


• Stainless steel ferrule with standard 1"-14 thread


• 20' RG-8/X low-loss cable plus a PL-259 connector


• Suggested mount: Shakespeare Style 4187 Ratchet Mount


• One section


• Shakespeare Limited Warranty: 5 years

Technical Specifications:

• Frequency: VHF Marine Band


• Bandwidth: 3 MHz within 2.0:1 VSWR


• SWR: Mominally 1.5:1 at 156.8 MHz


• Impedance: 50 ohms


• Gain: 6 dB


• Max Input (Watts): 100 watts


• DC Ground: YES


• Height (feet): 8


• Polarization: Vertical
