Shakespeare Galaxy 5230 14' VHF Antenna - 8dB Gain

Galaxy 5230 14' VHF Antenna - 8dB Gain

The ultra-performer, Shakespeares Style 5230 is the most effective 8dB antenna system available anywhere, thanks to its increased signal capture area.

Features:

• 5/8 wave over 1/2 wave dipole


• Brass and copper elements for maximum range and efficiency


• Stainless steel ferrule with standard 1"-14 thread

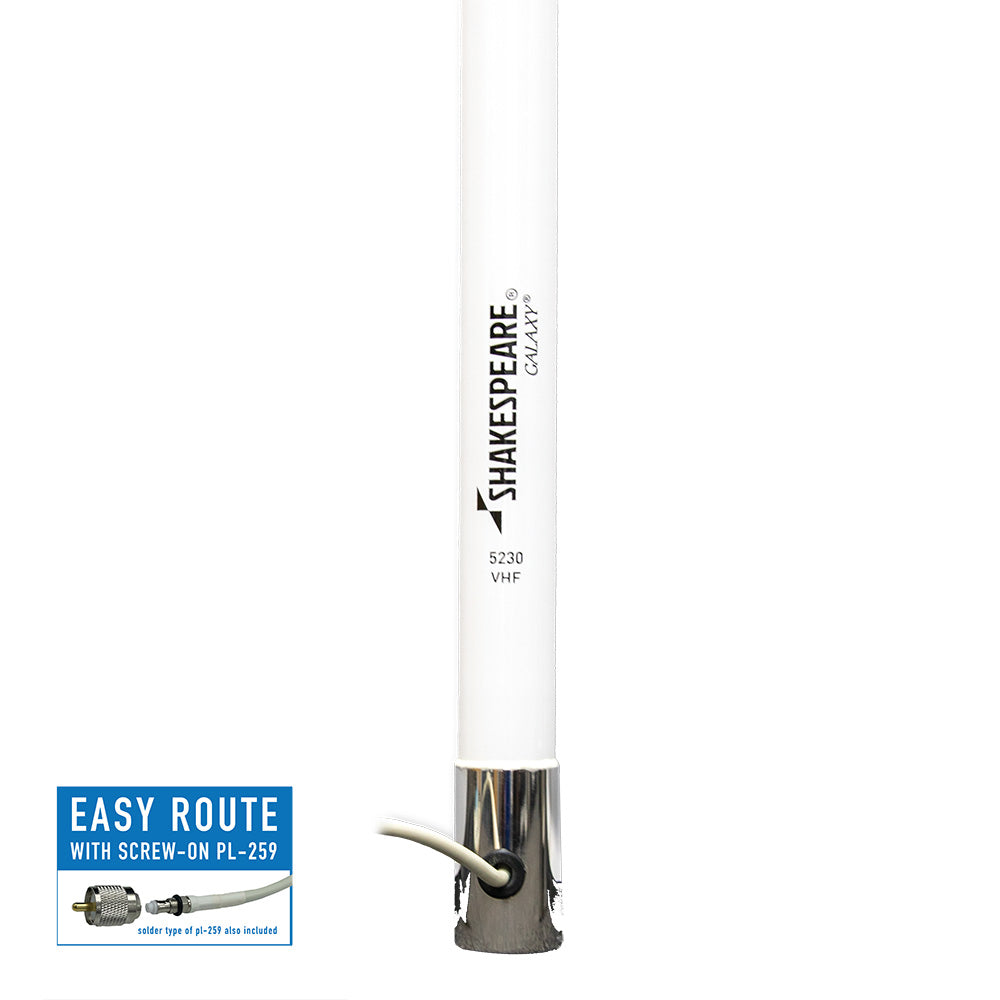

• Includes 20 feet of RG-8/X cable and a PL-259 connector


• Suggested mount: Shakespeare Style 409-R or 410-R Mounting Kit

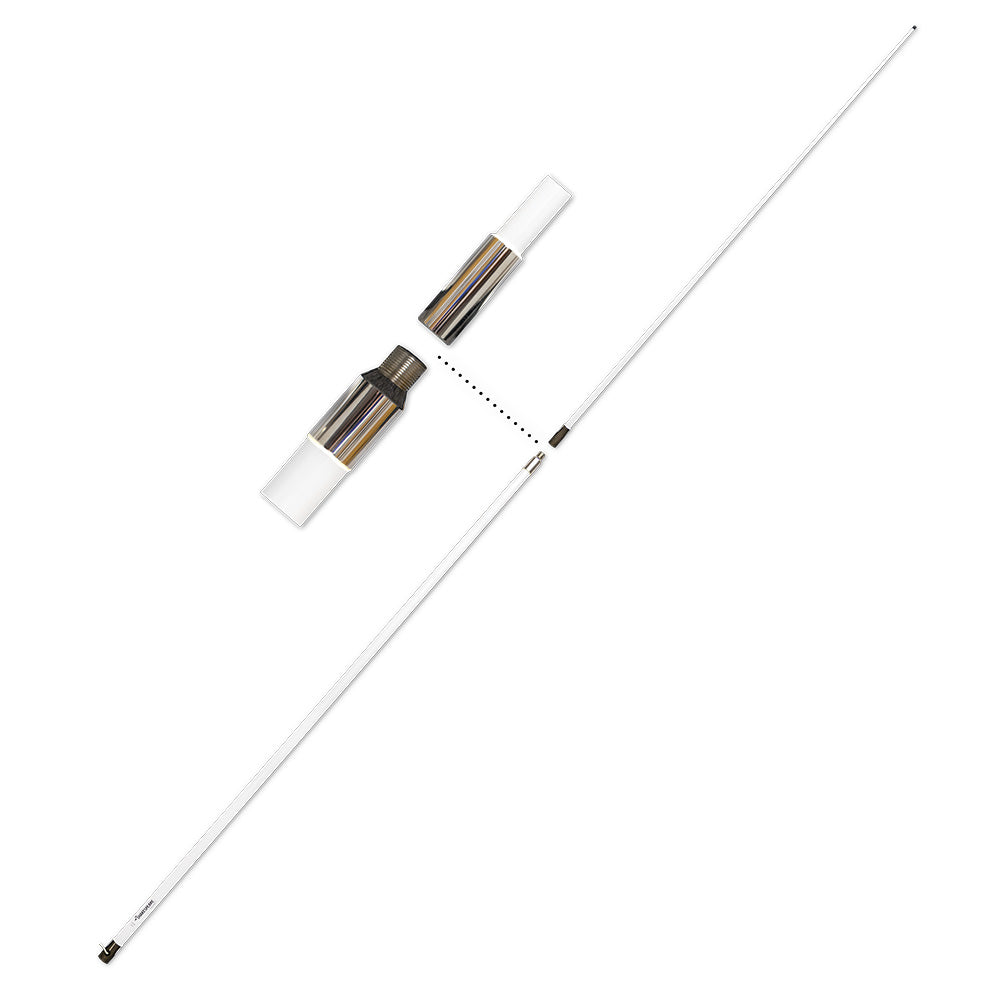

• Two sections: Base 94", Tip 74" -


• Shakespeare Limited Warranty: 5 years

Technical Specifications:

• Frequency: VHF Marine Band


• Bandwidth: 3 MHz within 2.0:1 VSWR


• SWR: Nominally 1.5:1 at 156.8 MHz


• Impedance: 50 ohms


• Gain: 8 dB


• Max Input (Watts): 200 watts


• DC Ground: YES


• Height (feet): 14


• Polarization: Vertical
