Simrad 000-14227-001 Sun Cover For GO7 XSR

Simrad 000-14227-001 Sun Cover For GO7 XSR

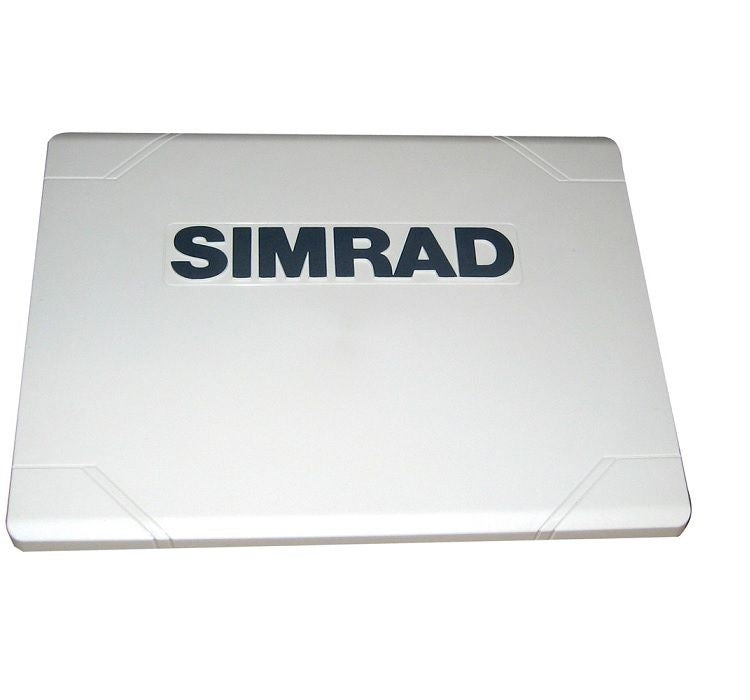

Simrad GO7 XSR Sun Cover

Model: 000-14227-001

Protect your Simrad display with this Sun Cover for GO7 XSR

Specifications

Operating Temperature Range
"-15°C to +55°C (5° F to 131° F)

Storage Temperature Range
"-20°C to +60°C (4°F to 140°F)

SD Card Storage
1 Micro SD slot, max. 32GB each. >32 GB format to NTFS

Ethernet Ports
1 x 5 pin yellow connector x 1 Mbit. Radar and Sirius (USA only) connectivity only (unless unlocked)

NMEA 2000 Connectivity
1 x NMEA 2000 Micro-C port, 1 LEN

Weight
1.320 kg (2.91lb)

Supply Voltage
10 - 17 V DC

Update rate
10 Hz

Power Consumption typical
12 W

Screen Brightness
1200 nits

Dimensions H x W x D
197 mm x 141 mm x 82.7 mm (7.56" x 5.55" x 3.26") (no bracket)

Warranty Period
2 Years

Power Consumption max
20 W

GPS Receiver Channels
32 Channels

Recommended Fuse Rating
3A

Waypoints, Routes, Tracks
6000 waypoints, 500 Routes with 100 max route points, 50 tracks with up to 12,000 track points.

Viewing Angles
80° top/bottom, 80° left/right

Display Resolution
800x480

Internal Storage
90MB

Steering Modes
Auto, Nav., No Drift, Follow up, Non-follow up, Turn patterns, Standby, *Wind, *Wind NAV. (*Boat type set to Sail)

Autopilot
Auto, Nav., No Drift, Follow up, Non-follow up, Turn patterns, Standby, *Wind, *Wind NAV. (*Boat type set to Sail). Requires STBY button or Controller with STBY button to commission

Digital Switching
BEP C-Zone

Mounting Type
Bracket or Panel

Approvals Compliance
CE, C-Tick, HDMI, EN 60950-1:2006, EN 60945:2002 EN 300 440-2, V1.4.1

Shock Vibration
CE, C-Tick, HDMI, EN 60950-1:2006, EN 60945:2002 EN 300 440-2, V1.4.1

Time to First Fix
Cold start less than 90 seconds exposed to open sky, Satellite Reacquisition 5 sec

NMEA 0183 Sentences supported
Exports NMEA0183 over WiFi

Radar compatibility
Halo, Broadband, HD Radars

Position Accuracy
Horizontal Accuracy 3 m (9.8 ft.)

Charts supported
Insight, Navionics (Gold, NAV+ Platinum+) , C-MAP (MAX N, MAX N+) NV Digital (Raster US Charts)

Charts Supported
Insight, Navionics (Gold, NAV+ Platinum+) , C-MAP (MAX N, MAX N+) NV Digital (Raster US Charts)

Sonar Compatibility
Integrated CHIRP / DownScan / ForwardScan. Single 9 Pin Xsonic Connector

Item Connectivity WiFi
Internal

Bluetooth
Internal

GPS
Internal, 10Hz, WASS, MSAS, EGNOS

Waterproofrating
IPX 6 and 7

PC Connectivity
None

Video
None

AIS
Receive AIS data over NMEA 2000 only

Weather
SiriusXM via WM-3 (USA only), GRIB

Catography included
TBD

Interface
Touch screen, OP40 or OP50 controller via NEA 2000

Manouevres Turn Patterns
U-turn, Spiral-turn, C-turn, Zig-zag, Square-turn, Lazy S-turn, Depth contour tracking

Multimedia
via SonicHub2, Fusion Link, *Sirius, **JL Audio. *USA only, **AUST. & NZ only)

Correction
WASS, MSAS, EGNOS, GLONASS

Backlight Color
White
