Simrad AP48 Autopilot Control With Rotary Dial

Simrad AP48 Autopilot Control With Rotary Dial

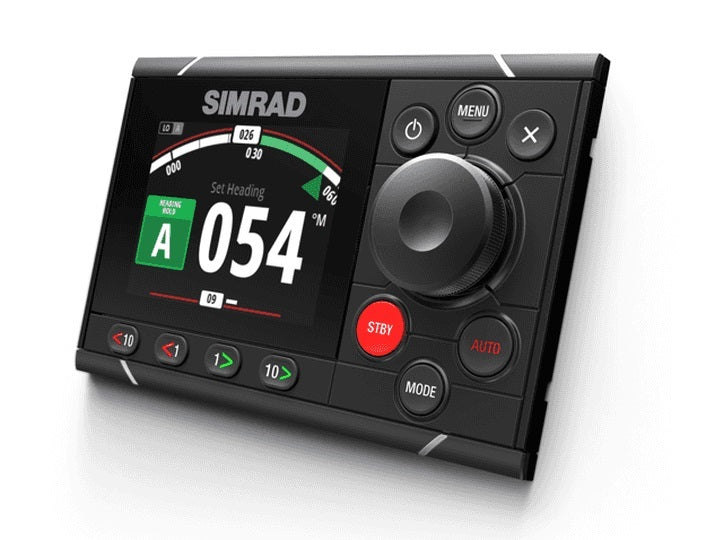

Simrad AP48 Autopilot Controller

• Intuitive autopilot interface with extended keypad
• Large, heavy-duty rotary control dial for precision steering
• Continuum steering technology
• Optically bonded 4.1-inch colour display
• Ultra wide 170-degree viewing angle
• Dedicated one-degree and ten-degree port/starboard dodge keys
• Automated turn patterns for fuel-efficient, hands-free manoeuvres
• No Drift steering holds your course against wind and tide
• Depth contour tracking makes it easy to fish ledges and drop-offs
• Easy setup with auto tuning and calibration
• Low-profile glass helm design
• Certified NMEA 2000® connectivity

The AP48 Autopilot Controller is a premium dedicated control head for Continuum autopilot systems, enhanced with modern glass helm styling. Engineered for responsiveness and ease of use in all conditions, the AP48 pairs a large aluminium rotary control dial with dedicated ‘dodge keys’ to adjust heading port or starboard in one- or ten-degree increments. With an optically bonded 4.1-inch display and its intuitive controls, the AP48 also provide full access to advanced Continuum steering features including automated turn patterns, No Drift steering, depth contour tracking, and more.

Display size
4.1" (diagonal). 4:3 Aspect ratio

Display resolution
320 x 240 pixels

Display Type
Transmissive TFT-LCD. White LED backlight

Waterproof rating
IPx7

Input Voltage
13.5V

Input Draw
Key backlight off = 1.62W (0.12 A); Key backlight max = 2.97W (0.22 A)

Dimensions
177mm(Width) x 115mm (Height) x 56mm (deep)
