Simrad CAM-1 IP Camera Stainless Steel Marine Grade

Simrad CAM-1 IP Camera Stainless Steel Marine Grade

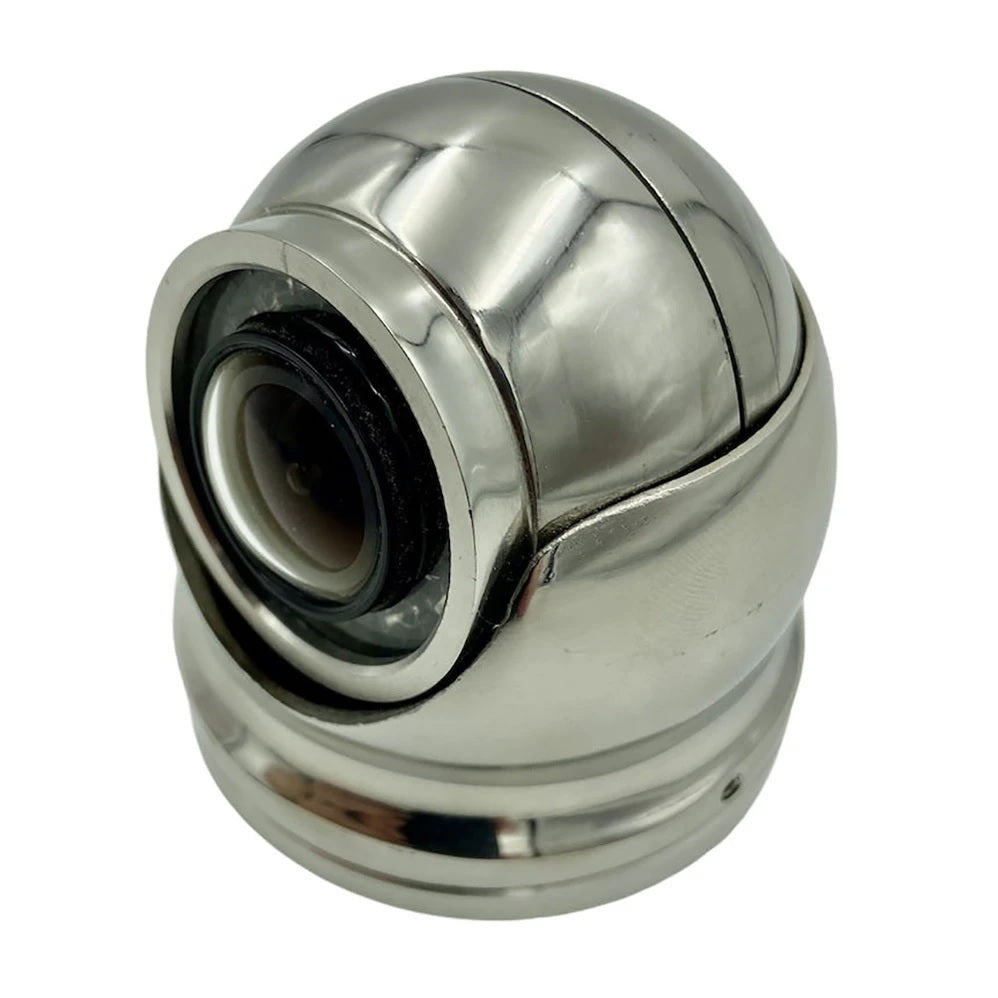

Simrad CAM-1 Marine grade 316 Stainless Steel IP Camera

• Pre-configured for use with Simrad, Lowrance and B&G MFDs


• Fast setup on each MFDs


• Rugged 316 Marine Grade Stainless Steel Housing


• 1.8mm 160° viewing angle - See the entire deck


• Compatible with NOS 20.2 or later


• Built In IR LED Illumination (10m Range)


• PoE IEEE802.3af Power Option


• Extremely Low Power Consumption


• IP66 Environmental Protection

PoE
IEEE802.3af (RJ45)

DC
12V DC (10-16V) DC 2.1/5.5mm Male CCTV power connector

Power Consumption

IR LED Off
1.38W (0.1A at 13.8V DC)

IR LED On
2.76W (0.2A at 13.8V DC)

Enviromental

Operating temperature
-30°C to +60°C (-22°F to 140°F)

IP Rating
IP66

Resolution

Main stream
1080p (1920x1080)

Sub Stream
448p (800x448)

Protocol
RTSP

Mechanical

Lens
1.8mm (160° Wide Angle)

Sensor
1/4" CMOS

Housing
316 Stainless steel

Weight
420g

MFD resolutions capabilities:

NSSevo3S, Zesu3S (9",12", 16")
High Resolution 1080p

NSOevo3S MFDs, Zeus3S MFDs
High Resolution 1080p

NSOevo3S MPU, Zeus3S MPU
High Resolution 1080p

Information Display (9" & 12")
Low Resolution 448p

NSSevo3, Zeus3 (7" & 9")
Low Resolution 448p

NSOevo3 MFD, Zeus3 MFD
Low Resolution 448p

NSOevo3 MPU, Zeus3 MPU
Low Resolution 448p

Zeus2 MPU
Low Resolution 448p

HDS Live
