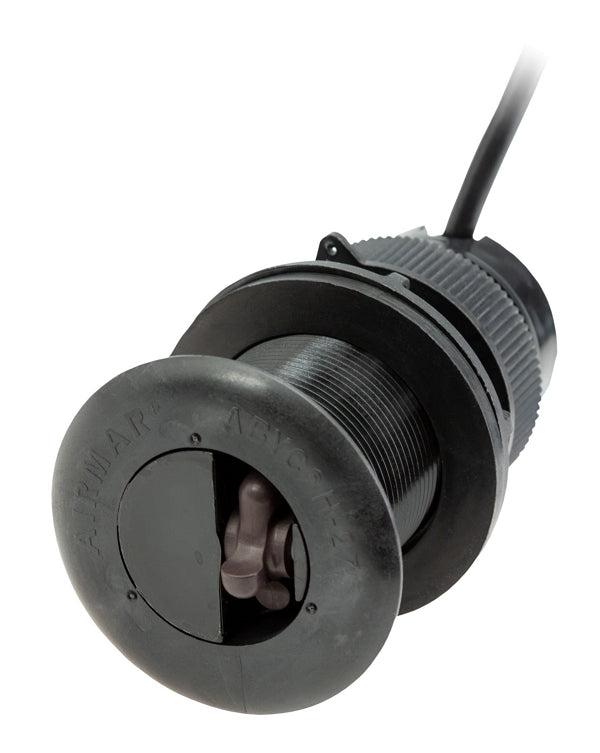

Simrad DST810 Multi Sensor Airmar Smart Transducer Plastic Thru Hull

Simrad DST810 Multi Sensor Airmar Smart Transducer Plastic Thru Hull

Simrad IDST-810 active Depth, Speed, Temperature thru-Hull plastic 235 kHz transducer.

• 5 Hz speed output (5X per second) for visibly smoother speed-through-water reporting and faster data for better decision making


• Integrated attitude sensor for heel and trim benefits sailing and power boats


• Advanced Speed Calibration allows for manual speed entries for multiple heel angles and up to 10 speeds, formerly only possible through expensive PC software


• DST810 stores configurations and delivers data to the NMEA 2000® network.


• Depth, heel-corrected speed-through-water, heel and trim, and water temperature from one installed multisensor.


• Popular depth sensor for shallow water performance.

Acoustic Window
Urethane

Hull Deadrise
Up to 22°

Data Update Rate
Depth 1X/second

Data Update Rate
Speed 5X/second

Attitude Accuracy
+/— 1° nominal after sensor calibration

Depth Frequency
235 kHz

Minimum Depth Range
0.5 m (1.6')

Maximum Depth Range
Up to 100 m (330')—NMEA 2000®

Speed Range
Up to 45 knots

Pressure Rating
3 m (10')

Pulse Rate
20,000 p/nm* (5.6 Hz per knot)—*p/nm = pulses per nautical mile

Supply Voltage
9 VDC to 16 VDC—per NMEA 2000

Supply Current
<200 mA—per NMEA 2000®

Wireless Protocol
Bluetooth Low Energy (BLE)

Wireless Range
Up to 30 feet depending on mount location

Standard Cable Length
6 m (20') DeviceNet—NMEA 2000®

Temperature Sensor Accuracy
+/-0.5°C (+/-1.8°F)

Temperature Sensor Range
-10°C to 40°C (14°F to 104°F)

NMEA 2000 Load Equivalency Number (LEN)
3

What's in the Box:

• DST-810 Insert


• Plastic Housing
