Simrad GO7 XSR 7" Plotter Active Imaging 3in1 C-Map Discover

Simrad GO7 XSR 7" Plotter Active Imaging 3in1 C-Map Discover

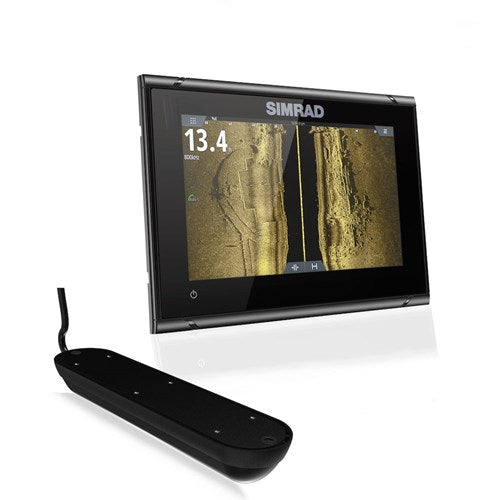

Simrad GO7 XSR 7-inch chartplotter and radar display with Active Imaging 3-in-1 transducer and a C-MAP Discover microSD

Model: 00014838002

The GO series offers true ease of use with intuitive touchscreen controls that smartphone and tablet users will find instantly familiar. Customise your home screen with the features you use most, and see everything you need on screen at once with adjustable split-screen views.

Simrad GO series displays are full-featured chartplotters with support for a wide range of cartography options including C-MAP®, Navionics®, C-MAP Genesis®, and NV Digital® Charts. Mark waypoints with a simple touch, and assign meaningful names that make them easy to find on your next trip.

Add a suitable transducer and your GO series display works as a powerful fishfinder, complete with CHIRP technology for clear detection of fish throughout the water column. Add an HDI or TotalScan transducer, and your display also offers StructureScan HD sidescan imaging for a picture-like view of fish-holding structure beneath and around your boat.

Expand Your View with a Simrad Radar Solution The Simrad GO7 XSR is a full-featured radar display with plug-and-play connectivity to Simrad Broadband 3G™, Broadband 4G™, and Halo™ Pulse Compression radar systems. Cruise confidently through crowded harbours, navigate safely in poor visibility, keep an eye on distant weather cells, and find flocks of feeding birds that hint at good fishing spots. Automatic tuning helps to provide a clear radar picture in any conditions, while radar overlay combines radar data with navigational charts for an easy-to-interpret view of your surroundings. (end of section)

Automatic routing brings the convenience of in-car navigation to boating, helping you to plot a route and get underway with less delay. Simply select a destination, and your display will suggest the shortest, safest route. This feature is available with Navionics+ or Navionics Platinum charts (Navionics Dock-to-dock Autorouting), and C-MAP MAX-N+ charts (C-MAP Easy Routing). * Automatic routing features are unavailable in North America.

Enjoy the most up-to-date charts on the water with Navionics SonarChart Live. Available exclusively with Navionics charts, this feature creates a depth-contour overlay using live sonar data from your display’s built-in sounder. The results are shown on your GO series display and updated in real-time as you fish or cruise.

Designed with power boating in mind, the Simrad GO series offers a unique Cruise Charting page that brings together crucial navigation data and charts in one easily readable display.

The optional SonicHub®2 module is the perfect companion to your GO series display. Stream music from Bluetooth® connected tablets, smartphones, and other mobile devices with this black-box audio system that eliminates the need for a separate head unit.

The Simrad GO series provides access to online services including easy wireless map downloads and software updates via any wireless hotspot. On the water, connect your Simrad GO series display to your mobile devices, mirroring your display’s screen on your smartphone or giving you full remote control from your tablet with the free Link app.

Specifications

Resolution
800x480

Screen brightness
1200 nits

Size and type
7" Diagonal High Visibility Color TFT LCD

Backlight color
White

Viewing angles
Viewing angles

Recommended fuse rating
3A

Power consumption(max)
20 W

Power consumption nominal
12 W

Supply voltage
12 V DC (10 - 17 V DC)

Ethernet
1 x 5 pin yellow connector x 1 Mbit. Radar and Sirius (USA only) connectivity only (unless unlocked)

Radar compatibility
Halo, Broadband, HD Radars

Sonar
Integrated CHIRP / DownScan / ForwardScan. Single 9 Pin Xsonic connector. Connection to any external sounder module is not supported.

NMEA 2000
1 x NMEA 2000 Micro-C port, 1 LEN

NMEA 0183
No connection but exports NMEA 0183 over WiFi

Video In / Out
None

WiFi
Internal

Bluetooth
Internal

GPS antenna
Internal

Internal
Cold start less than 90 seconds exposed to open sky, Satellite reacquisition 5 sec

GPS correction
WASS, MSAS, EGNOS, GLONASS, *Galileo ,*BeiDou. *Limited by network

GPS position accuracy
Horizontal Accuracy 3 m (9.8 ft)

GP receiver channels
32 Channels

GPS update rate
10 Hz

AIS
Receive AIS data over NMEA 2000 only

Operating temperature range
-15°C to +55°C (5° F to 131° F)

Storage temperature range
-20°C to +60°C (4°F to 140°F)

Waterproof rating
IPX 6 and 7

Shock / vibration
CE, C-Tick, HDMI, EN 60950-1:2006, EN 60945:2002, EN 300 440-2, V1.4.1"

Mounting methods
Bracket or Panel

Weight
1.320 kg (2.91lb)

Interface
Touch screen, OP40 or OP50 controller via NMEA 2000

Weather
SiriusXM via WM-3 (USA only), GRIB

Autopilot
SiriusXM via WM-3 (USA only), GRIB

Digital switching
BEP C-Zone

Autopilot steering modes
Auto, Nav., No Drift, Follow up, Non-follow up, Turn patterns, Standby, *Wind, *Wind NAV. (*Boat type set to Sail)

Autopilot manoeuvres & turn patterns
U-turn, Spiral-turn, C-turn, Zig-zag, Square-turn, Lazy S-turn, Depth contour tracking

Internal user data storage
90MB

Waypoints, routes and tracks
6000 waypoints, 500 Routes with 100 max route points, 50 tracks with up to 12,000 track points.

External storage
1 Micro SD slot, max. 32GB (format FAT32 each). >32 GB cards require cards to be formated to NTFS

Multimedia
Via SonicHub2, FusionLink, *Sirius, **JL Audio. *USA only, **AUST. & NZ only)

Compliance
CE, C-Tick, HDMI, EN 60950-1:2006, EN 60945:2002

Warranty period
2 Years

Dimensions
197 mm x 141 mm x 82.7 mm (7.56" x 5.55" x 3.26") (no bracket)

What's in the Box:

• GO7 XSR


• Mounting Bracket


• Bezel


• Dash mount kit


• Suncover


• Power Cable


• ctive Imaging 3-IN-1 Transducer


• StructureScan 3D & HD Metal Replacement Bracket


• C-Map Discover microSD
