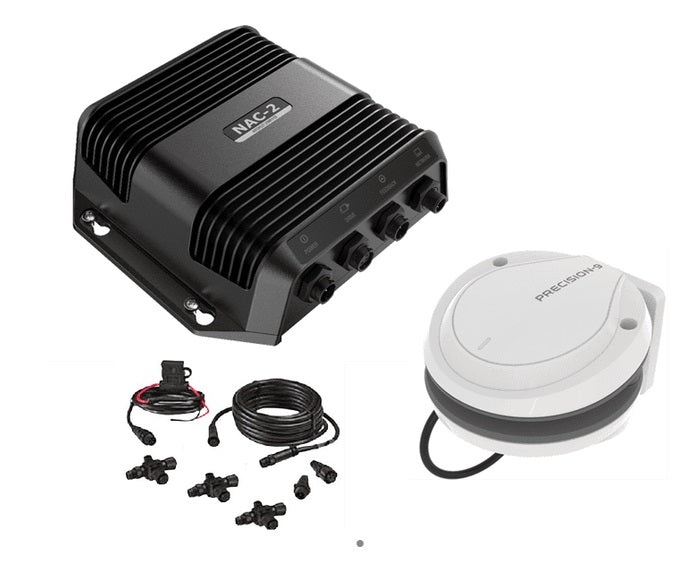

Simrad NAC-2 VRF Core Pack

Simrad NAC-2 VRF Core Pack

Simrad NAC-2 VRF Low-current Core Pack

NAC-2 VRF Core Pack: Comprising of the high-current NAC-3 autopilot computer andPrecision-9 compass.

The NAC-2 Autopilot Computer is the brains behind your autopilot system. NAC-2 contains the control algorithms developed to helm a yacht across a broad range of weather conditions and sea-states, alongside the electronics needed to operate a hydraulic or mechanical drive unit, while also interfacing with other components including heading sensors and rudder feedback units. The NAC-2 was designed for boats up to 10 metres (33 feet) in length and is suitable for low-current hydraulic drives, mechanical drives, or solenoid valves with a current rating of 8 Amps continuous (12 Amps peak).

Operating temperature
-25°C to +55°C (13°F to 131°F)

protection
Splashproof, IPx5
Electrical
Power supply
9-31.2 V DC

Load
140 mA + drive unit load

Performance
Drive: 8 A cont., 16 A for 1 s
Interfaces
network
1xMicroC (NMEA2000)

Feedback
Variable voltage/resistive 0-5V

Drive output
To PUMP-1 or HELM-1

Solenoid
12/24V DC, common, load range 10mA to 10A, off current <1mA

Clutch
12/24V DC, min 10mA, max 3A

What's in the Box:

• NAC-2 Autopilot Computer
• PRECISION-9 COMPASS
• N2k Backbone Starter Kit
