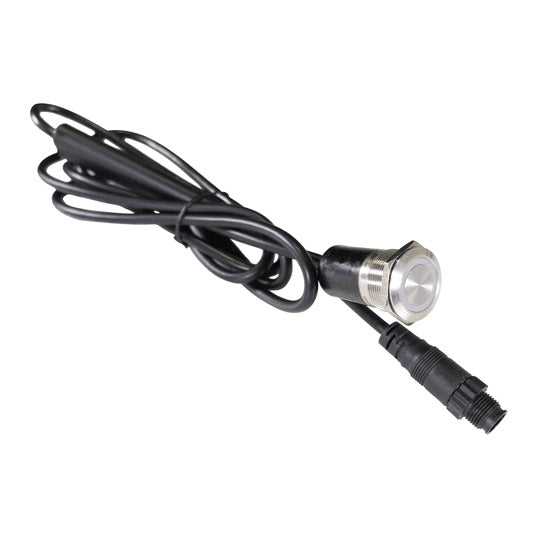

Simrad NMEA2000 Remote MOB Button

Simrad NMEA2000 Remote MOB Button

• Easy to install with plug ‘n play installation


• Compatible with NMEA2000® (MOB) Notification standard - PGN 127233


• Compatible with Lowrance®, Simard® and B&G® MFD’s & instrument displays


• Automatically creates a MOB waypoint and provides navigation data to the MOB position


• Dedicated graphical MOB pages on Triton™ 2, H5000 Graphic & Nemesis® displays


• When combined with an H5000 CPU, the CPU will calculate a dead reckoned position of the MOB


• Conforms with World Sailing Offshore Safety Requirements [4.22.2]

This simple to install remote button allows for convenient placement for an emergency Man-Over-Board (MOB) button, which will trigger alerts across a NMEA2000® system and devices. Pressing the button will automatically create a MOB waypoint and provide navigation data to reach the MOB position.

The button is compatible with Lowrance HDS® Live, EliteFS® and HDS® Carbon Chartplotters/Fishfinders. Simrad® NSO™, NSSevo3™ and NSSevo3S™, GO™ and NSX™ Chartplotters and Multifunction Displays, B&G Zeus® 3 and 3S, Vulcan™ chartplotters, and Triton™ 2, H5000 and Nemesis® instrument displays, which also feature a dedicated graphical MOB page. When combined with a B&G H5000 Sailing Processor, the Processor will calculate a dead reckoned position of the MOB position. This safety accessory also conforms with the World Sailing Offshore Safety requirements.

Operating temperature
-15°C to +55°C (5°F to 131°F)

Waterproof rating
IP67

Power supply voltage
12 V DC

Operating voltage
9 V DC - 18 V DC

Power consumption
1 LEN, 0.39 W (28 mA at 13.8 V)

Reverse polarity protection
Yes

NMEA 2000 PGN TX
127233

What's in the Box:

• MOB Button


• N2K-T-RD - Micro-C T-connector
