Simrad NSO evo3S 16" MFD System Pack

Simrad NSO evo3S 16" MFD System Pack

Model: 000-15126-001

• iMX 8 Integrated six-core processor for superior performance


• Ultra-sharp, Full HD 16-inch display


• Seamless touchscreen control of your entire connected SIMRAD® system


• Low-profile glass helm styling


• Extended visibility with six-panel split screen option


• Connect with smartphones, tablets, and internet hotspots

Every NSO evo3S display features the new iMX 8 integrated six-core processor delivering category leading response times for incredibly smooth screen transitions. With up to twice the CPU performance, you have instant access to the information you need, as you need it, no matter the conditions. Create your own custom helm layouts to suit any activity, and switch seamlessly between layouts in an instant. Low-profile glass helm styling conceals and protects NSO evo3’s powerful core, and complements any helm design from ultra-modern to timeless classic.

NSO evo3S delivers the ultimate view with an ultra-bright 16-inch display, ideal for both indoor and outdoor installations. Wide viewing angles keep the screen in view from anywhere in sight, even if you’re wearing polarised sunglasses. Experience stunning clarity with Full HD resolution, and the option to combine up to six panels in a split-screen layout. Intuitively navigate charts, define waypoints, and take control of connected systems such as autopilot, radar, and sonar at a touch.

Built-in wireless connectivity links NSO evo3S to your existing mobile devices for remote viewing and control, and delivers easy online software upgrades via any wireless internet hotspot. Wired Ethernet, NMEA 2000®, and J1939 networking provide almost limitless integration options, from vessel-wide display systems to radar, sonar, engine integration, and much more.

Specifications

Approvals

Compliance
CE, C-Tick, HDMI, EN 60950-1:2006, EN 60945:2002 EN 300 440-2, V1.4.1

Autopilot

Manouevres / Turn Patterns
U-turn, Spiral-turn, C-turn, Zig-zag, Square-turn, Lazy S-turn, Depth contour tracking

Steering Modes
Auto, Nav., No Drift, Follow up, Non-follow up, Turn patterns, Standby, *Wind, *Wind NAV. (*Boat type set to Sail)

Connectivity

Bluetooth
Internal

Ethernet
3 x 100 Mbits/s ports, RJ 45. (Adapt to 5 pin yellow using adapter cable 000-11246-001)

NMEA 0183
2x NMEA0183 (IEC61162-1)2x NMEA0183-HS (IEC61162-2)

NMEA 2000
1 x NMEA 2000 Micro-C port, 1 LEN

PC Connectivity
HDMI Video in from a PC

Video
2x composite video (BNC)1x high definition video (1080p, HDCP 1.4, HDMI-A)1x high definition video output (1080p, no HDCP, HDMI-A)

WiFi
Internal 802.11b/g/n

Display

Backlight Color
White

Resolution
1920x1080

Screen Brightness
1200 nits

Size and Type
IPS 15.6" optically bonded TFT

Viewing Angles
80° top/bottom, 80° left/right

Electrical

Power Consumption, max.
40 W +- 4 W

Recommended Fuse Rating
6 A @ 12 V DC

Supply Voltage
10 - 32 V DC

Environment

Operating Temperature Range
-15°C to +55°C (5° F to 131° F)

Shock and Vibration
CE, C-Tick, HDMI, EN 60950-1:2006, EN 60945:2002 EN 300 440-2, V1.4.1

Storage Temperature Range
"-20°C to +60°C (4°F to 140°F)

Waterproof rating
IPX6 on the font (when panel mounted correctly with only the front exposed) Rear not waterproof

MFD

AIS
Receive AIS data over NMEA 2000 Or NMEA 0183 (IAS is not bridged to N2K)

Autopilot
Auto, Nav., No Drift, Follow up, Non-follow up, Turn patterns, Standby, *Wind, *Wind NAV. (*Boat type set to Sail). Requires STBY button or Controller with STBY button to commission

Cartography included
World basemap

Cartography supported
Insight, Navionics (Gold, NAV+ Platinum+) , C-MAP (MAX N, MAX N+) NV Digital (Raster US Charts)

Digital Switching
BEP C-Zone, Naviop

External Storage
1 Micro SD slot, or use USB Dashmount Card reader MI10 with 2x Micro SD slots. max. 32GB each. >32 GB format to NTFS

GPS
External GPS required

Internal Storage
16 GB

Multimedia
via SonicHub2, Fusion Link, *Sirius, **JL Audio. *USA only, **AUST. & NZ only)

Radar (inc. compatibility)
Halo, Broadband, HD Radars

Sonar (inc. compatibility)
External echo sounder module or connection to an MFD with built in echo sounder that can share sonar over Ethernet is required.

Weather
SiriusXM via WM-3 (USA only), GRIB

Waypoints, Routes, Tracks
6000 waypoints, 500 Routes with 100 max route points, 50 tracks with up to 12,000 track points.

Compass Safe Distance - Metric, imperial
50 cm (19.7")

Physical

Dimensions (W x H x D)
400.1 x 260 x 83 mm (15.75 x 10.24 x 3.27")

With bracket
474.9 x 307.5 x 222.5 mm (18.7 x 12.1 x 8.76")

Mounting Type
Panel or Bracket mount (use optional heavy duty bracket 000-13547-001

Weight
3.9 kg (8.6 lbs.)

Other

Warranty Period
2 Years

Interface
Touch screen, OP40 or OP50 controller via NMEA 2000

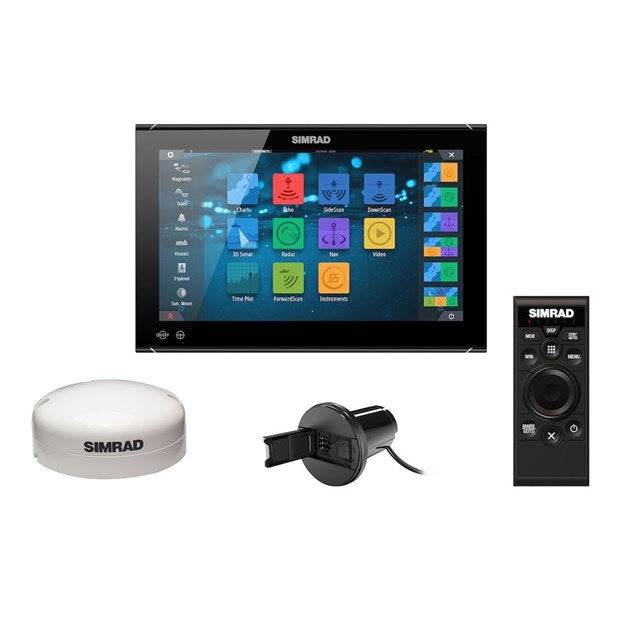

What's in the Box:

• NSO 16 evo3s Display


• Protective Suncover for Simrad 16" Monitors


• Silver and Black bezels


• RJ45M-5 pin Female


• Rear mount bracket


• Cable Retention bracket


• NMEA2000 Power T


• 6' NMEA2000 Cable


• TR-120-Kit Terminator Kit


• 4- Way NMEA2000 Cable


• OP50 Remote


• GS25 GPS Antenna


• MICRO SD CARD READER
