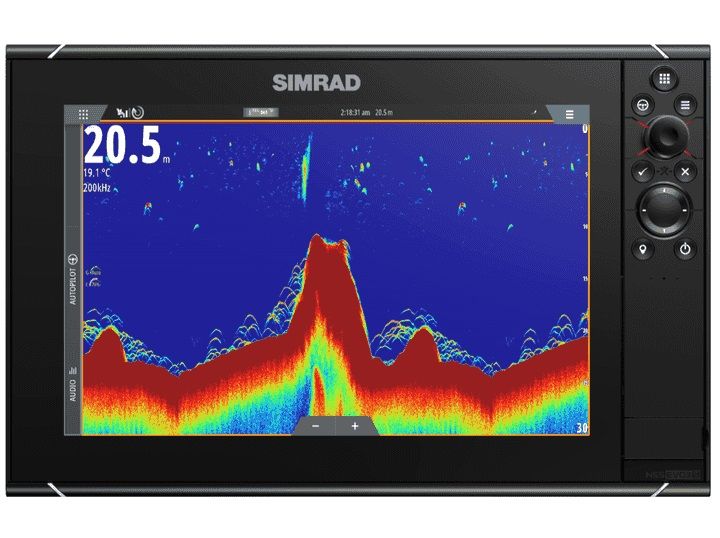

Simrad NSS12 evo3s Combo MFD With C-Map US Enhanced Map
Simrad NSS evo3S 12in Display
Model: 000-15403-002- High Resolution, High Bright, SolarMax IPS Displays
- Easy to use touchscreen UI as well as full keypad for simple and precise control in any sea conditions
- Built-in advanced echosounder capable of 1kW Dual channel CHIRP, Forwardscan, Sidescan, Downscan and StructureScan 3D images
- Take another step forward with Simrad’s premium network modules for the ultimate offshore performance
- Halo Dome and Open Array Radars: S5100 Sportfishing Echosounder, Direct audio, autopilot and engine connection and control
- Low profile glass dash styling
- Built in Wi-Fi connectivity
- Next Generation Processor
- SolarMAX IPS Display Technology
- Multi-touch screen and keypad hybrid control
- Built-in Advanced Echosounder
NSS evo3S is a mid-life update to the NSS evo3. The key difference is a next generation processor. This greatly improves the speed and smoothness of the display. The NSS evo3 is already a feature packed product and the new processor in the evo3S means that each one of those features is now improved
SpecificationsPhysical
Dimensions
352 x 225 x 98 mm (13.84 x 8.87 x 3.82")with bracket: 377 x 241 x 120 (14.85 x 9.47 x 4.71)
Weight
3.10kg/6.83lb
Environmental
Operating temperature range
-15°C to +55°C (5° F to 131° F)
Environment Shock Vibration
100,000 cycles of 20G
Storage temperature range
-20°C to +60°C (4°F to 140°F)
Water resitance
IPX6 and 7
Power
Supply voltage
10 - 31.2 V DC
Fuse rating
5A
Power consumption (Max)
28W
Display
Display backlight color
White
Display resolution
800 x 1280
Display screen brightness
1200 nits
Display size and type
High Visibility SolarMax HD® IPS 7" optically bonded TFT
Display viewing angles
80° top/bottom, 80° left/right
Connectivity
Ethernet
2 x 5 pin yellow connector x 1 Mbit
Bluetooth
Internal
NMEA2000 connectivity
1 x NMEA 2000 Micro-C port, 1 LEN
NMEA 0183 connectivity
1 x Transmit, 1 x Receive NMEA 0183, Baud Rates 4800, 9600, 19200, 38400. TX and RX use same baud rate. Optional data cable required (P/N 000-00129-001)
Video connectivity
2 x composite (RCA connectors)video inputs. Optional video/ data cable required (P/N 000-00129-001).
WiFi connectivity
Internal
Sonar
Sonar frequencies
40-250kHz 455-800kHz
Sonar max depth
3000’+ (tested with B175L)
Sonar output power
1kW RMS
Compliance
Compliance
GPS
GPS
Internal
GPS update rate
10 Hz
GPS channels
34
GPS correction
WASS, EGNOS, MSAS, GLONASS
GPS position accuracy
Horizontal Accuracy 3 m (9.8 ft)
GPS time to first fix
Cold start 50 sec, Satellite Reacquisition 5 sec
What's in the Box:
- NSS evo3S 12" Display
- NSS12 EVO3 & ZEUS3 - 12 DASH MOUNT KIT
- NSS12 EVO3/3S & ZEUS / S-12 MOUNTING BRACKET
- NSS12 EVO3 & ZEUS3 — 12 EDGE BEZELS
- Power Cable
