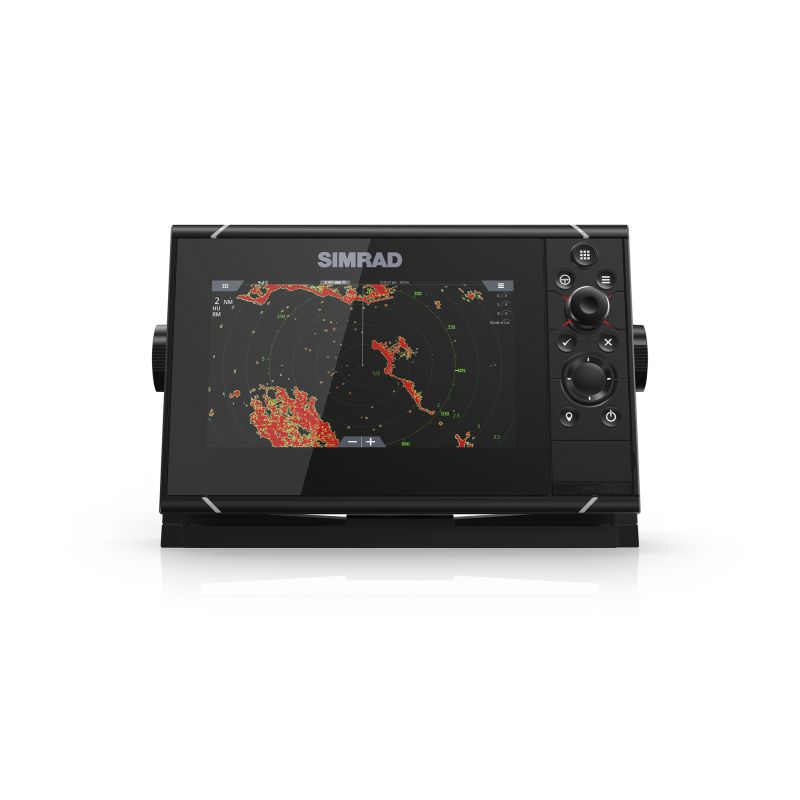

Simrad NSS7 evo3 Combo MFD With Insight

Simrad NSS7 evo3 Combo MFD With Insight

Simrad NSS7 EVO3 7" MFD with Insight Charts

Model: 000-13233-001
UPC: 9420024154038

• 7-inch widescreen SolarMAX™ HD display
• Reliable control in all conditions: switch seamlessly between multi-touch and a full keypad with rotary dial
• Integrated echosounder featuring dual-channel CHIRP, ForwardScan® sonar, and StructureScan® HD imaging
• Add StructureScan® 3D imaging, advanced Broadband Sounder™ capabilities and more via Simrad modules
• Expand your view with Halo™ Pulse Compression radar, Broadband 3G™/4G™, and other Simrad radar solutions
• Take complete control of Simrad autopilot systems with the NSS evo3 touchscreen or keypad
• NMEA 2000® connectivity enables integrated engine monitoring, sound system control, and much more
• Enjoy easier trip planning with TripIntel™ technology and support for Navionics Autorouting/C-MAP Easy Routing (automatic routing unavailable in North America)
• Navigate accurately with an embedded high-gain 10 Hz GPS/GLONASS receiver
• Built-in GoFree™ Wi-Fi enables online features and smartphone monitoring/tablet control
• Choose flush-mount installation for a low-profile Glass Bridge look, or bracket-mount to install almost anywhere
• Includes Insight charts

Navigate, take control, and enjoy an unprecedented level of built-in functionality with NSS evo3. SolarMAX™ HD display technology offers exceptional clarity and ultra-wide viewing angles, combined with an all-weather touchscreen and expanded keypad for total control in all conditions. Cruise confidently with ForwardScan sonar, or fish easier with StructureScan® HD imaging and dual-channel CHIRP-enabled Broadband Sounder™ technology. Built-in Wi-Fi enables access to GoFree® online services, and delivers smartphone monitoring and tablet control to extend your display’s reach well beyond the helm. The NSS7 evo3 features a 7-inch display perfect for centre consoles and other installations where space is at a premium. Includes Insight charts.

SolarMAX™ HD display technology revolutionises the way you see your on-board electronics, with high-definition visuals and clear visibility no matter what the conditions. See clearly from any position, sitting or standing, with extra-wide viewing angles. Bright LED backlighting and an anti-reflective coating offer enhanced daytime visibility; SolarMAX™ HD displays are engineered to reliably endure the heat of the summer sun, perfect for outside installations. These all-weather screens are optically bonded to prevent condensation, and will never fog. Any time, any conditions, SolarMAX™ HD gives you the ultimate view.

NSS evo3 displays let you take control your way. Switch seamlessly between intuitive touchscreen control with multi-touch gestures, and a full built-in keypad with rotary control dial. Every display function can be controlled by either the touchscreen or the keypad, giving you the flexibility to use whatever controls best suit current conditions and the task at hand. NSS evo3’s full keypad controls also mean you can choose to lock the touchscreen and rely on a classic button and rotary dial interface, without requiring a separate keypad.

A built-in echosounder module equips every NSS evo3 display with a wealth of Simrad sonar technologies to suit many sportfishing and cruising applications. StructureScan® HD imaging combines DownScan and SideScan sonar to provide a picture-like views of fish holding structure, while award-winning ForwardScan® sonar offers a safer cruising experience with a clear view of the bottom ahead. Broadband Sounder™ technology provides CHIRP-enabled fish-finding sonar, including support for the all-in-one TotalScan™ transducer or dual-channel CHIRP transducers. Dual-channel transducers provide coverage of multiple depth ranges and cone angles in a single unit, perfect for targeting specific parts of the water column in sportfishing applications. Dual transducer ports allow simultaneous use of either StructureScan® HD or ForwardScan® and CHIRP or traditional sonar.

NSS evo3 displays are compatible with Simrad expansion modules including game-changing StructureScan® 3D imaging, the advanced S5100 Broadband Sounder with CHIRP, and many other plug-and-play network modules. Module capabilities can be shared between multiple NSS evo3 displays, and the ability to add modules at any time means your Simrad display system can easily grow and change along with your boating interests and technology needs.

Expand your view with Halo™ Pulse Compression radar, Broadband Radar™, or HD Digital Radar solutions. NSS evo3 displays integrate with these network-connected Simrad radar solutions to provide a full-featured radar interface complete with easy pre-set modes, custom manual tuning, MARPA target tracking, guard zones, overlay views, and many other features depending on your choice of radar system.

Take complete control of your Simrad autopilot with the NSS evo3 touchscreen or keypad. Set a heading, maintain your current course against wind and tide, steer to a waypoint, or follow a complex route with simple on-screen controls. NSS evo3 displays can serve as the sole controller for a ‘black box’ autopilot system, or can be combined with dedicated autopilot controllers and wireless remotes. A networked Simrad autopilot system can be controlled from any NSS evo3 display on board, perfect for dual-helm vessels.

Industry-standard NMEA 2000® connectivity enables vessel-wide integration with a range of Simrad and third-party electronics including engine and fuel monitoring capabilities, digital instrumentation, AIS integration, sound system control, and much more.

All NSS evo3 displays include an integrated high-gain, high-speed GPS/GLONASS receiver that updates your position ten times per second, ideal for accurately tracking the motion of fast-moving powerboats. In outside bracket-mount installations, and in flush-mount installations in many fibreglass boats, this removes the need to purchase and install a separate GPS receiver. An optional external GPS receiver may be used as an auxiliary position source, or in certain installations that prevent a clear GPS signal from reaching the integrated receiver.

The NSS evo3 includes a user-programmable function key to provide instant access to your choice of features. Enjoy one-button access to the feature you use most — such as navigation, autopilot, or radar. Alternatively, assign the button to a feature you’d like to keep close to hand — create a MOB key for emergencies, a dedicated key to record sonar logs for Insight Genesis, or a key to lock the touchscreen while you’re using the keypad or an external controller. You can choose any two functions — one for a quick press, and one for a long press.

Designed for power boaters, TripIntel™ technology tracks and displays the key information you need to plan safe and enjoyable days on the water. Make smart decisions with fuel range overlaid on charts, easy access to current and future tide levels, and a detailed history of your previous trips. While underway, the Cruise Performance Indicator makes it easy to tune trim and throttle to achieve maximum fuel economy and stay in the ‘green zone’, maximising range and keeping fuel costs down.

Automatic routing brings the convenience of in-car navigation to boating, helping you to plot a route and get underway with less delay. Simply select a destination, and the NSS evo3 display will suggest the shortest, safest route taking into consideration the draught and dimensions of your vessel. This feature is available with Navionics+ or Navionics Platinum charts (Navionics Autorouting), and with C-MAP MAX-N+ charts (Easy Routing). * Automatic routing features are unavailable in North America.

Built-in GoFree™ Wi-Fi enables online chart downloads, Insight Genesis map creation, and easy system-wide software updates. Browse and purchase a wide range of cartography online from the GoFree™ Shop, and download charts directly to your display’s memory card without leaving the helm. Upload sonar logs recorded on your display directly to the Insight Genesis cloud service to create detailed custom charts, a perfect way to explore your favourite inland and coastal fishing spots. GoFree™ online services can be used anywhere a Wi-Fi internet connection is available.

Out on the water, GoFree™ Wi-Fi and the free GoFree™ Link app lets you view your NSS evo3 display using an Apple iPhone or Android smartphone, and control your display from an Apple iPad or Android tablet. Take your display anywhere on board for access to charts, radar, sonar, engine data, and more — exactly where and when you need it.

NSS evo3 displays can be bracket mounted for easy installation almost anywhere, or flush mounted for a fully integrated Glass Bridge look and feel. These displays have a low flush-mount profile of just eight millimetres, and feature the same sleek contemporary styling as other Simrad Glass Bridge products including multifunction displays, radar control units, fish finders, autopilot controllers, instruments, and keypads.

Choose from a wide range of cartography options to best suit your location and usage with support for C-MAP MAX-N+, Navionics, Insight, Insight Genesis, and NV Digital Charts. This model includes Insight charts.

Specifications

General
Waypoints, Routes and Tracks
6000 waypoints, 500 Routes with 100 max route points, 50 tracks with up to 12,000 track points.

Cartography included
Insight

Cartography supported
Insight, Navionics (Gold, NAV+ Platinum+) , C-MAP (MAX N, MAX N+) NV Digital (Raster US Charts)

Radar (inc. compatibility)
Broadband Radar, Halo Pulse Compression Radar, HD Pulse Radar

External Storage
2 MicroSD slots, max. 32GB each. Larger if formatted to NTFS

Weather
SiriusXM via WM-3 (USA only), GRIB

Internal Storage
16 GB

Sonar (inc. compatibility)
Two 9 pin Xsonic Sonar ports. Sonar port 1: Single channel CHIRP, 50/200 khz, HDI. Sonar port 2: Single channel CHIRP, 50/200 khz, TotalScan, LSS HD, ForwardScan. Compatible with: SonarHub, BSM-3, BSM-2, network echo sounders

GPS
Internal

AIS
Receive AIS data over NMEA 2000 or *NMEA 0183 (*NMEA 0183 has to be wired to all NSS processors)

Warranty Period
3 Years

Interface
Full touch screen (multi-touch ) and full keypad control, OP50 remote controllers

Multimedia
via SonicHub2, FusionLink, *Sirius, **JL Audio. *USA only, **AUST. & NZ only)

Autopilot
Full auto pilot control and commissioning

Digital switching
BEP C-Zone, Naviop
Networking
Ethernet
1 x 5 pin yellow connector x 1 Mbit

NMEA 2000
1 x NMEA 2000 Micro-C port, 1 LEN

NMEA 0183
1 x Transmit, 1 x Receive NMEA 0183, Baud Rates 4800, 9600, 19200, 38400. TX and RX use same baud rate. Optional data cable required (P/N 000-00129-001)

Video
2 x composite (RCA connectors)video inputs. Optional video/ data cable required (P/N 000-00129-001).

Wifi
Internal

Bluetooth
Internal
Technical Enviromental
Dimension
239 x 150 x 90 mm (9.4 x 5.9 x 3.5inch)With bracket: 263 x 161 x 93 (10.35 x 6.31 x 3.66)

Mounting type
Bracket (Supplied) or panel mount

Storage Temperature Range
-20°C to +60°C (4°F to 140°F)

Waterproof rating
IPX6 and 7

Operating Temperature Range
-15°C to +55°C (5° F to 131° F)
GPS Navigation
Time to First Fix
Cold start 50 sec, Satellite Reacquisition 5 sec

Correction
WASS, MSAS, EGNOS, GLONASS

Position Accuracy
Horizontal Accuracy 3 m (9.8 ft)

GPS Receiver Channels
34 Channels

Update rate
10 Hz
Power
Recommended Fuse Rating
5 A

Supply Voltage
10 - 31.2 V DC
Display
Resolution
600 x 1024

Screen size and type
High Visibility SolarMax HD® IPS 7inch optically bonded TFT

Backlight color
White

Viewing angles
80° top/bottom, 80° left/right
