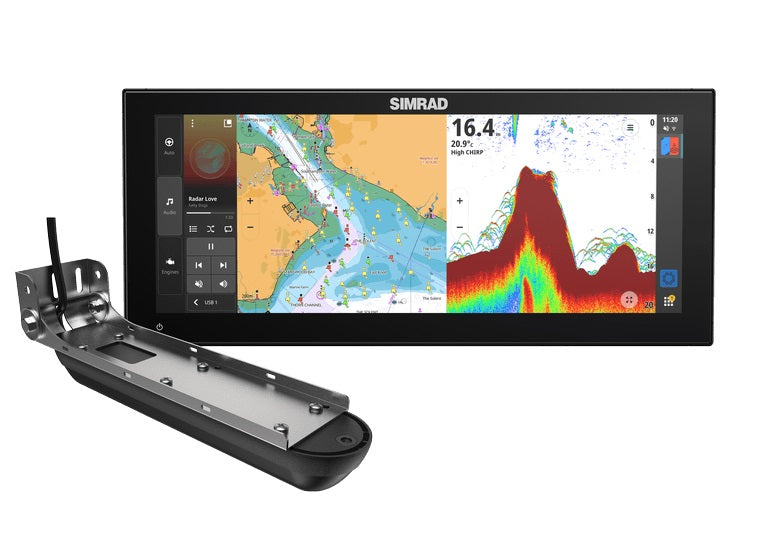

Simrad NSX3015UW 15" MFD with Active Imaging Transducer

Simrad NSX3015UW 15" MFD with Active Imaging Transducer

Simrad NSX 3015UW Ultra Wide 15" MFD

Model: 000-16213-001

• NSX ULTRAWIDE delivers all the benefits of multiple displays, without the hassle of multiple installations


• Fewer cables


• One cutout


• Less setup


• Condenses the same wealth of information from two screens into one, delivering a seamless and fully immersive user experience - all thanks to the new cutting-edge ultrawide aspect ratio and high-pixel density display.


• The panoramic display compliments the aesthetics of your boat designs, letting you create eye-catching, low-profile dashboards straight out of the luxury auto world.


• Information that is more consumable


• More screen, less space


• Simplified installation


• Unique screen format — new to marine


• Better viewability


• Enables automotive-style dash designs

The current square display format limits visibility and functionality, especially with charts and when using split screens to view multiple apps. As a result of wasted space and visual imbalances, existing displays often fail to deliver a clean and sleek dash aesthetic. The installation of multiple screens slows down production. The additional dash modifications, cabling, and setup consume additional installation time. It’s simply inefficient.

The new NSX ULTRAWIDE, the next step in the NSX platform evolution. Revolutionary 12" and 15" ultrawide marine MFDs, setting a new standard in the market. NSX ULTRAWIDE offers consumers enhanced visibility, control, and functionality. OEMs can deliver a unique, premium aesthetic, and all the advantages of dual displays, with none of the hassle. NSX ULTRAWIDE offers the same active area as two smaller displays. But, in terms of functionality, ULTRAWIDE offers so much more. It condenses the same wealth of information from two screens into one, delivering a seamless and fully immersive user experience - all thanks to the new cutting-edge ultrawide aspect ratio and high-pixel density display.

Specifications

Display

Size and Type
15" SolarMax IPS Touchscreen display for wide viewing angles, extreme clarity and sunlight viewability with polarized sunglasses

Resolution
1920 x 720 px

Viewing Angles
85° (top, bottom, left, and right)

Screen Brightness
>1000 nits

Backlight Color
White

Power

Supply Voltage
12 V DC (10 - 17 V DC min - max)

Power Consumption max
25 W (1811 mA at 13.8 V)

Protection
Reverse polarity and over voltage (Max 18V)

Recommended Fuse Rating
3A

Physical

Dimensions No Bracket, no suncover
W: 390.0 mm (15.55") x H: 170.4 mm (6.71") x D: 88.5 mm (3.48")

-With gimbal bracket
H: 180. mm (7.10") D:96.5 mm (3.80")

MountingType
Rear mount (bracket supplied), Bracket mount (bracket optional)

Compass Safe Distance
50 cm (1.7 ft)

Environmental

Operating Temperature Range
-15°C to 55°C (5°F to 131°F)

Storage Temperature Range
-20°C to 60°C (-4°F to 140°F)

Waterproof rating
IPx6 and IPx7

Humidity
IEC 60945 Damp heat 66°C (150°F) at 95% relative (18 hr)

Shock Vibration
100,000 cycles of 20 G

Interface and connections

Interface
Multi-touch screen

Sonar Compatibility
One 9 pin Xsonic 1 kW Sonar port. Single channel CHIRP, 50/200 KHz, SideScan & DownScan upto 800 KHz, Network sonar modules S3100, S5100.

Ethernet
1 port (5-pin connector) Radar Compatibility: Halo Dome radars, Halo open array radars, 3G/4G, HD Radars

Weather
Not in first release

USB
1 port (USB A) Output: 5 V DC, 1.5 A

External Storage
1 MicroSD slot, 1 port (USB A)

NMEA 2000
1 x NMEA 2000 Micro-C port, 1 LEN

NMEA 0183
No

GPS
Internal, 10Hz, WASS, MSAS, EGNOS

GPS Correction
10 Hz high speed update (internal) WASS, MSAS, EGNOS, GLONASS

GPS Position Accuracy
Horizontal Accuracy 3 m (9.8 ft)

GPS Receiver Channels
32 Channels

GPS Update rate
10Hz

J1939
No

WiFi
IEEE 802.11b/g/n

Bluetooth
Bluetooth 4.0 with support for Bluetooth Classic

Charts Supported
C-MAP Discover X, C-MAP Reveal X, third party charts

AIS
Receive AIS data over NMEA 2000

Digital Switching
C-Zone, Simrad COMMAND DDS

Warranty

Warranty Period
2 Years

What's in the Box:

• NSX3015UW Display


• ActiveImaging™ 3-IN-1 Transducer w/ 7.6m (25ft) cable


• DISCOVER X - NORTH AMERICA


• 4-Pin Power Cable


• Fuse Kit


• NSX 3015UW Suncover
