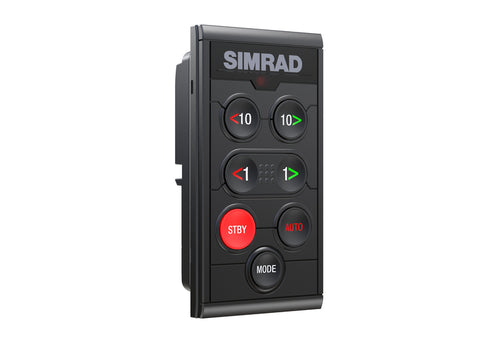

Simrad OP12 Autopilot Control

Simrad OP12 Autopilot Controller

• Intuitive operation


• Easy installation


• Combine with an IS42 display for full autopilot control


• Compatible with Simrad AC12, AC42, NAC-2 and NAC-3 autopilot computers


• Use alongside NSS & NSO evo2/3 MFD’s as an additional Autopilot Controller


• Low-profile glass helm design


• Low power consumption


• Certified NMEA 2000® connectivity

The OP12 wired remote seamlessly integrates with Simrad autopilot systems to provide intuitive mode control, course adjustments, and power steering. Designed to complement the low-profile design of Simrad glass bridge instruments and displays, this remote can be combined with the IS42 Colour Instrument Display to create a standalone autopilot controller, or used as a dedicated autopilot keypad for GO, NSS and NSO evo2 multifunction displays.

Intuitive operation A simple pushbutton interface makes the OP12 easy to use in rough conditions, and reliably responsive to wet or gloved hands. Dedicated auto and standby buttons enable or disable the autopilot with a single press, so it’s easy to free your hands from the wheel or instantly take control whenever you need to. Course adjustments are also just one button-press away, with dual port and starboard buttons to enable course adjustments in either one-degree or ten-degree increments.

Low-profile glass helm design Designed to complement Simrad glass helm displays and instruments, the OP12 features modern styling with a low surface-mount profile of just eight millimetres. A compact footprint enables mounting almost anywhere, while still offering large buttons for easy and reliable operation.

Power consumption
1.4w

Newwork load
3 LEN

Waterproof rating
IPx7

Dimensions
60 x 115 x 32mm (2.4 x 4.5 x 1.3in)

What's in the Box:

• OP12 Autopilot Controller


• N2K-T-RD Network T-Connector


• N2KEXT-2RD 2ft Network Extension Cable


• Suncover for Triton Pilot/OP12
