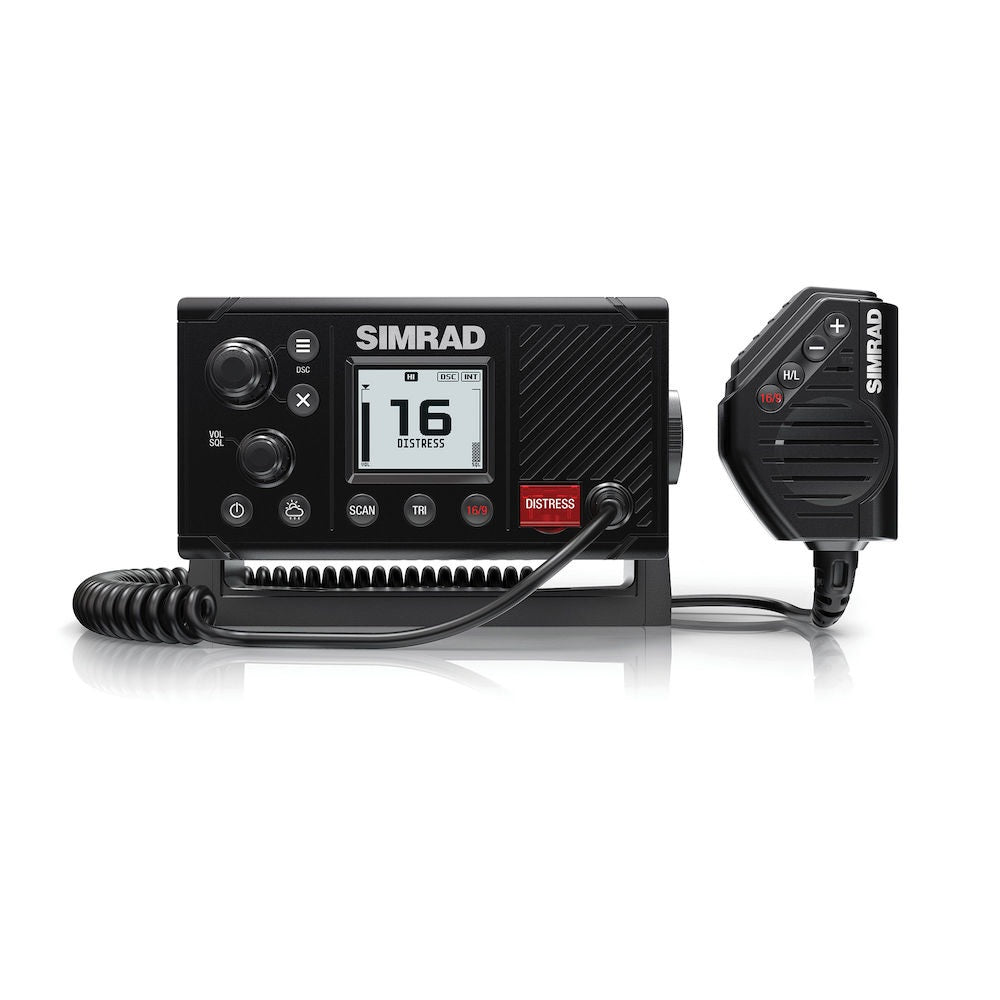

Simrad RS20S VHF With DSC

Simrad RS20S VHF With DSC

Model: 00014491001

• Built in GPS Antenna


• Receive GPS data from a compatible GPS unit: SMA connector for optional external GPS antenna (000-13613-001)


• Replaces the current RS12 entry level VHF


• NMEA2000 connectivity for advanced functionality like backlight grouping when connected to Simrad MFD’s


• NMEA0183 connectivity


• NMEA0183 connectivity


• New front mountable mechanical design for easy installation


• Low profile design to align with style of Simrad MFD’s


• Full inbuilt country specific channel banks


• no requirement for LC programming or cloning

Specifications

Frequency Range: Transmit
156.025?157.425 MHz

Frequency Range: Receive
156.050?163.275 MHz

Number Of Channels
US / INT

Oscillate Mode
PLL

Modulation
FM(16KOG3E) DSC(16K0G2B)

Channel Spacing
25KHz

Frequency Stability
±5 PPM

Normal Working Voltage
+13.6 V DC

Minimum operating Voltage
≥10 V DC

Low battery detect Voltage
10.5 ± 0.5 V DC

Digital Selectivity Calling (DSC)
Class D

Intermediate Frequency : 1st
38.85/21.7 MHz

Intermediate Frequency : 2nd
450 KHz

Sensitivity : 12dB SINAD
≥-6 dBuV(EMF)

Squelch Sensitivity: at tight
≤ 6 dBuV(EMF)

Adjacent Channel Selectivity
≤70 dB

Intermodulation Response
≤68 dB

S/N at 3KHz Dev.
≥40 dB

Audio Output Power At THD 10%
≥2.5 W

Audio Distortion
≤10 %

Audio Response
+1 to -3dB of 6dB/octave from 300hz to 3kHz dB

Current Drain : Max Audio Power
≤1.5 A

Current Drain : Stand-By
≤0.5 A

2ND RX Sensitivity For 12dB SINAD
≤0 dBuV(EMF)

2ND RX bit error ratio@-107dBm
≤ 10-2

Frequency error
≤±1.5KHz

RF Power
Hi23W ± 2W :Lo 0.8W ± 0.2W Hi23W ± 2W :Lo 0.8W ± 0.2W

Maximum Deviation Maximum Deviation
≤± 5 KHz

S/N at 3KHz Dev.
≥40 dB

Modulation Distortion ±3KHz
≤10 %

Audio Response at 1KHz Dev.
+1 to -3dB of 6dB/octave from 300hz to 3KHz

Spurious/Harmonic Emissions: Hi/LO
≤0.25uW

Modulation Sensitivity
≤15 mV

Current Drain At 12V DC
Hi Power ≤6A: Lo Power ≤1.5A

DSC TX deviation at 1.3K
2.6±0.26 KHz

DSC TX deviation at 2.1K
4.2±0.42KHz

ATIS TX deviation at 1.3 KHz
1.3±0.13 KHz

ATIS TX deviation at 2.1 KHz
2.1±0.21 KHz

What's in the Box:

• RS20S VHF


• Suncover


• Mounting Bracket


• Mounting Bracket Knobs


• Fist Mic Clip


• Flush Mount Kit
