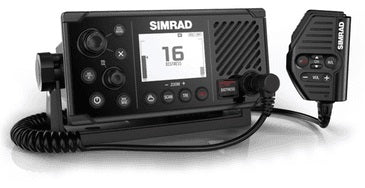

Simrad RS40 VHF AIS-RX

Simrad RS40 VHF AIS-RX

Model: 000-14470-001

• Simrad RS40 Replaces the current RS35 mid level VHF, updated to comply with EN 301 025 (v2.2.1)


• New front mountable design for easy installation


• Low profile design to align with style of Simrad MFD’s


• Seamless integration with a wider Simrad system through NMEA 2000 and 0183


• Built in AIS Receiver


• Large screen with intuitive user interface


• Optional wireless handsets with inductive charging

Specifications

Temperature range
-15 to +55°C (+5 to +131°F)

Waterproof
IPX7

Normal Working Voltage
+13.6 V DC

Minimum operating Voltage
≤10 V DC

Low battery detect Voltage
10.5 ± 0.5 V DC

Over Voltage Protection
>15.8 ± 0.5 V DC

Hailer Audio Power Out
30 W

Current Drain RX Max Audio Power
≤1.5 A

Current Drain Stand-By RX
≤0.45 A

Current Drain At 12V DC : Hi Power TX
≤6 A

Current Drain At 12V DC : Lo Power TX
≤1.5 A

Frequency Range: Transmit
156.025 ~ 157.425 MHz

Frequency Range: Receive
156.050 ~ 163.275 MHz

Channels
PLL

Modulation
FM(16KOG3E) DSC(16K0G2B)

Channel Spacing
25 KHz

Frequency Stability
± 5 PPM

Digital Selectivity Calling (DSC)
Class D

LCD Display
FSTN 256x160 Pixels

AIS Max Targets
150

Intermediate Frequency : 1st
38.85/21.7 MHz

Intermediate Frequency : 2nd
450 KHz

Sensitivity : 12dB SINAD
≤-6 dBuV(EMF)

Squelch Sensitivity: at tight
≤ 6 dBuV(EMF)

Spurious Response Rejection Ratio
≥70 Db

Adjacent Channel Selectivity
≥70 dB

Intermodulation Response
≥68 dB

S/N at 3KHz Dev.
≥40 dB

Audio Output Power At THD 10%
≥2.5 W

Audio Distortion
≤10 %

Audio Response
+1 to -3dB of 6dB/octave from 300hz to 3kHz

Current Drain Max Audio Power
≤1.5 A

Current Drain Stand-By
≤0.45 A

2ND RX Sensitivity For 12dB SINAD
≤ 0 dBuV(EMF)

2ND RX bit error ratio@-107dBm
≤ 10-2

Frequency error
≤±1.5KHz KHz

RF Power : Hi
23 ± 2 W

RF Power : Lo
0.8 ± 0.2 W

Maximum Deviation
≤± 5 KHz

S/N at 3KHz Dev.
≥40 dB

Modulation Distortion
±3KHz ≤10 %

Audio Response at 1KHz Dev.
+1 to -3dB of 6dB/octave from 300hz to 3KHz dB

Spurious/Harmonic Emissions: Hi/LO
≤0.25 uW

Modulation Sensitivity
≤15 mV

DSC TX deviation at 1.3K
2.6±0.26 KHz

DSC TX deviation at 2.1K
4.2±0.42 KHz

ATIS TX deviation at 1.3 KHz
1.3±0.13 KHz

ATIS TX deviation at 2.1 KHz
2.1±0.21 KHz
