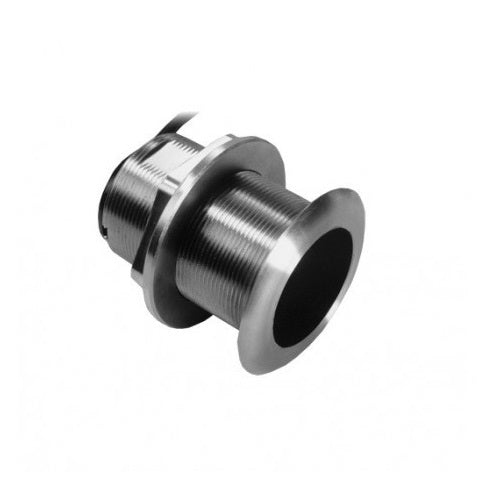

Simrad SS60 0DEG 50/200KHZ 9-PIN Thru Hull

Simrad SS60 0DEG 50/200KHZ 9-PIN Thru Hull

Simrad SS60 Stainless Steel 600 W Thru Hull 50/200 Khz Depth/Temp (0° tilt)

• Calculates how deep the water is, so that you can avoid running aground, whilst also incorporating a temperature sensor for accurate water temperature readings.
• Works at 50 kHz and 200 kHz for good target detail in shallow water and excellent bottom tracking in deep water.
• Provides extremely accurate data.
• The 0° tilt is ideal for boats with a 0° to 14° hull deadrise.
• The low profile housing minimises drag with just 5mm extending outside of the hull.
• Easily connect to NSSevo3, Lowrance HDS G3

The SS60 is a stainless steel, thru-hull, tilted, dual-frequency, depth and temperature transducer. The ceramic element is tilted for built-in deadrise compensation, giving excellent echo returns for more accurate depth readings.

Frequency
50/200 kHz

Power rating
600 watts

Speed sensor
No

Temperature sensor
Yes

Mounting style
Thru Hull

Elements
1

Beamwidth @ -3db
45 (50 kHz) 12 (200 kHz)

Cable length
10 meters

Connector
9-pin black
