Sitex MDA5H Class B AIS No Wifi

Sitex MDA5H Class B AIS No Wifi

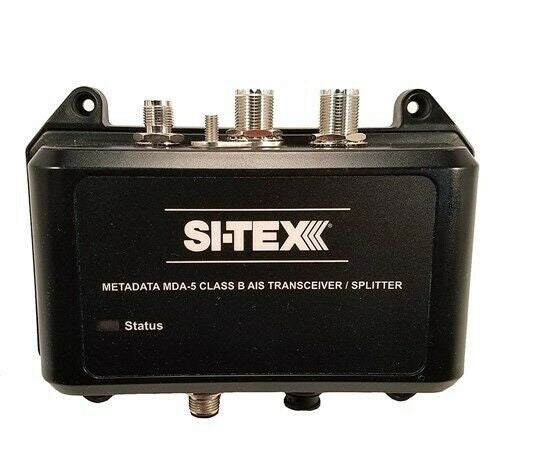

Sitex MDA-5 Class B+ SOTDMA AIS Transceiver NO Wifi

• The MDA-5 is the world’s most sophisticated fully certified 5-Watt SOTDMA Class B AIS Module on the market


• 5-Watt transmitter power, Higher Output power means your vessel will be seen at longer ranges by other vessels and via AIS websites


• SOTDMA Class A Priorities means that your vessel will always transmit and be seen in very congested Commercial Harbors and Ports where traditional Class B units don’t have network priority.


• Integrated zero loss VHF antenna splitter — no second antenna needed


• Water Proof certified to IPX7


• NMEA-0183 data port, NMEA-2000 & USB intelligent connectivity to all bridge systems


• Built-In GPS & GLONASS satellite navigation receiver


• 2 Year Warranty


• Dual Receivers decodes all DSC & AIS messages, including MOB & SART


• Ultra-power efficient


• IEC-62287-2, FCC and USCG certified

Transmitter Output Power
5 Watts

VHF Antenna Connector
SO-239 UHF

GPS Antenna Connector
TNC

Frequency Range
156.025 - 162.025 Mhz

Input Voltage
9.6-31.2 Vdc

Current Draw
220mA Average Power Consumption

Operating Temperature Range
-25°C - +55°C

Ingress Protection
IP67

Dimensions - Transceiver
6.8" W x 5.0" H x 2.0" D

What's in the Box:

• MDA-5H Transceiver


• Commercial Grade External GPS Antenna with Coax Cable


• Mounting hardware


• Power & Data Interface cable


• VHF Radio Connection cable


• Product information DVD, with ProAIS2 Software for Programming & Troubleshooting


• User Manual


• Quick Start Guide
