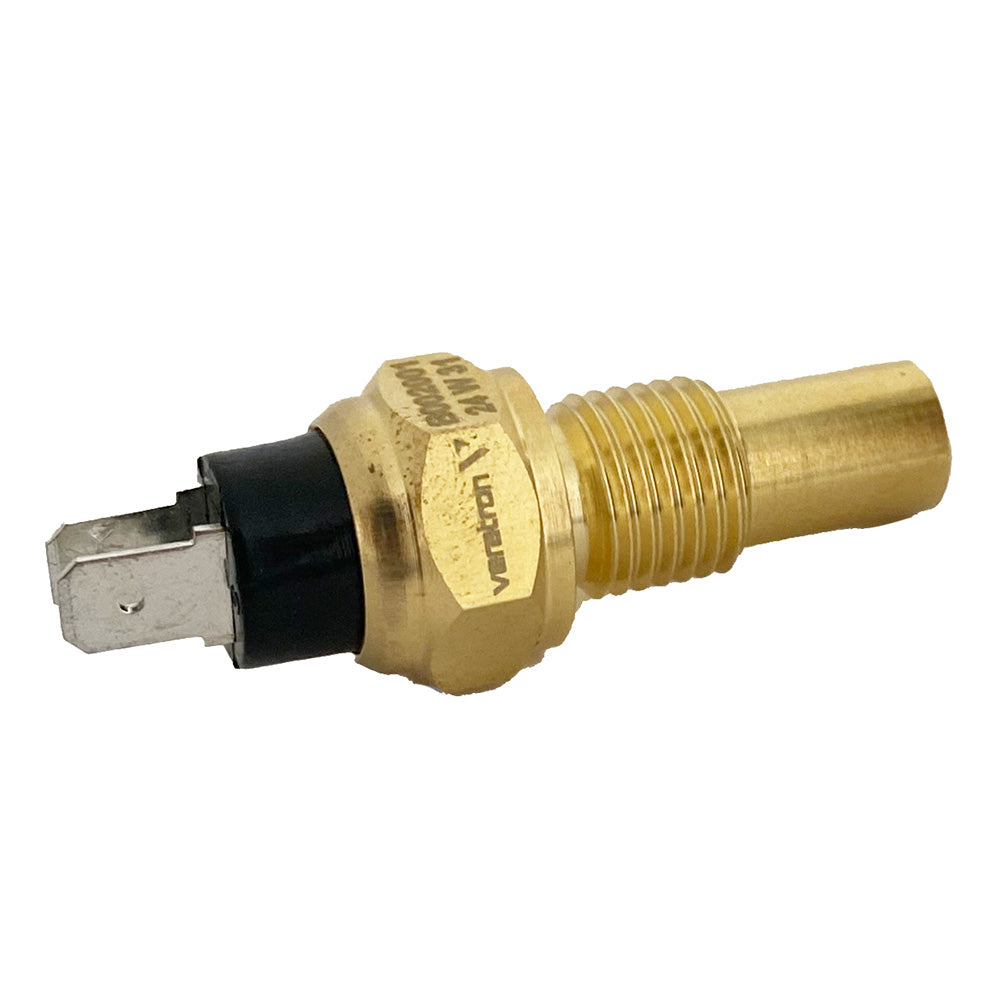

Veratron Engine Oil Temperature Sensor - 3/8"-18NPT Thread - 150?C Temp Range

Engine Oil Temperature Sensor - 3/8"-18NPT Thread - 150°C Temp Range

These resistive temperature sensors are built in a housing of brass. All sensors come with a sensor output and an insulated ground pin. The two connections are interfaced through the metal plate connectors. The sensors can be applied in a wide field of applications.

Features:

• Function - Oil temperature, coolant temperature


• Length - 28.5mm (1-1/8")


• Thread - 3/8"-18NPT


• Calibration - 150°C


• Measurement Range - 150°C


• Output Signals - Resistive


• IP67


• Insulated ground pin
