Wichard HR Quick Release Snap Shackle With Swivel Eye - 80mm Length - 3-5/32"

HR Quick Release Snap Shackle With Swivel Eye - 80mm Length - 3-5/32"

Features:

• HR forged (17.4 PH) quick-release snap shackle with swivel eye


• The opening is made by pulling the lanyard


• Perfect to attach one sheet or halyard


• Outstanding working and breaking loads


• Free rotation of the snap shackle thanks to the swivel

Applications:

• For spinnaker operations


• Perfect for spinnaker sheets and halyards

Specifications:

• Materials: HR 17.4 PH stainless steel grade


• Working load: (lb) 2820 / (kg) 1280


• Breaking load: (lb) 5070 / (kg) 2300


• Weight: (lb) 0.194 / (g) 88

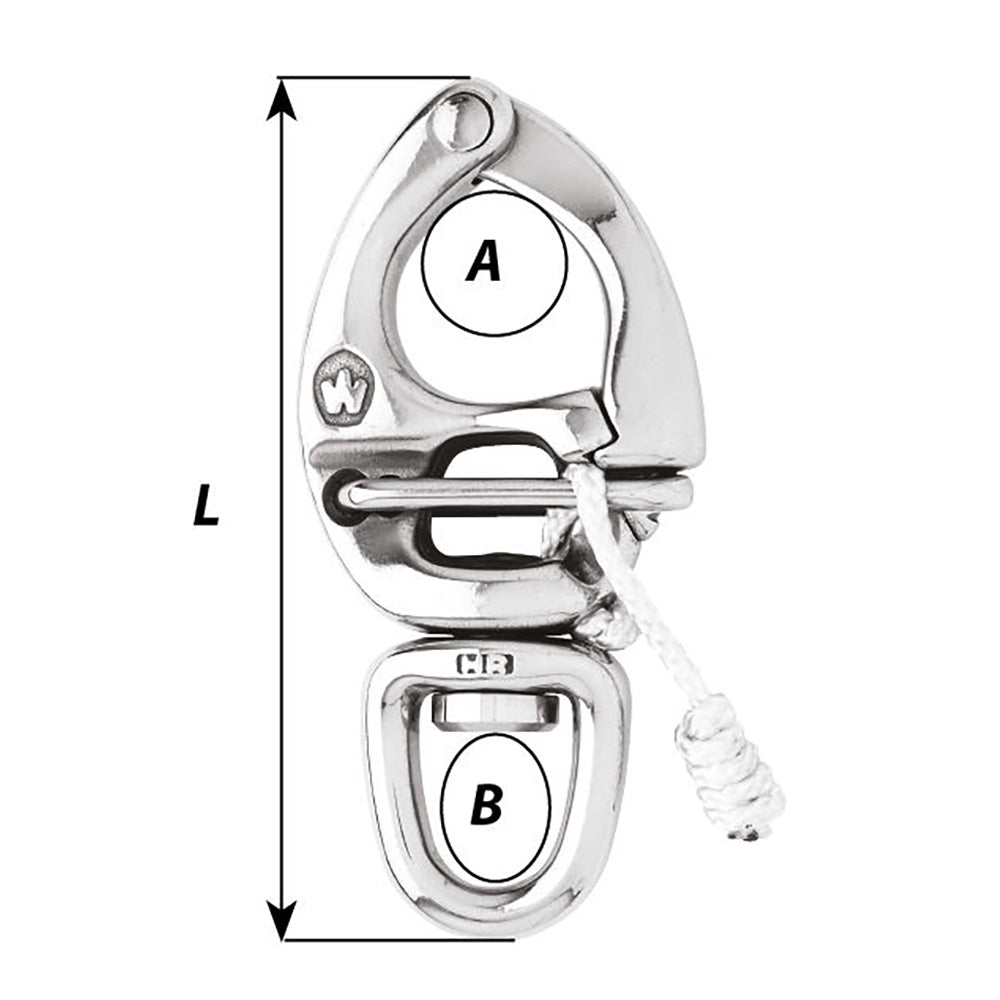

Dimensions:

• A: (inch) 5/8" / (mm) 16


• B: (inch) 15/32" / (mm) 12


• Length: (inch) 3 5/32" / (mm) 80

Caption:

• Working Load (WL): For nautical applications


• Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5


• High Resistance (HR)

*Sold as an Individual
