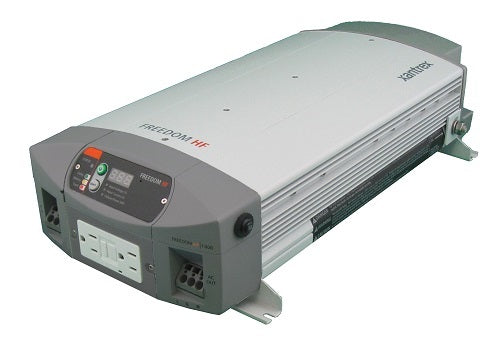

Xantrex Freedom HF1800 1800W Inverter W/40A Charger

Xantrex Freedom HF1800 1800W Inverter W/40A Charger
FREEDOM HF REDEFINED.

No Messy Wiring. Quick Installation. Minimal Battery Drain.

The new generation Freedom HF is equipped with quick-connect AC terminals and ignition lockout capability. The quick-connect AC terminals enable quick installation eliminating the need for strain relief clamps. The ignition lockout feature helps to minimize battery drain by disabling the inverter when the ignition is turned off.

The Freedom HF Inverter/Charger is one of the smallest, lightest, and most affordable inverter/chargers in the market today. The Freedom HF Inverter/Charger features modified sine wave output and is designed to operate entertainment systems and small appliances in boats, RV?s and trucks. The Freedom HF is available in three models: 1000 watts with a 20-amp charger, 1000 watts with a 55-amp charger and 1800 watts with a 40-amp charger.

Some of the key feature enhancements include quick-connect AC terminal block on both AC input and output for incredibly easy installation. The ignition lockout feature minimizes battery drain by disabling the inverter when the ignition is turned off.

Product Features

• Designed to power demanding loads such as microwave ovens, TVs, DVD players, small appliances and other electronic equipment
• Removable digital display pre-attached with 25? extension cable for remote system monitoring
• Ignition lockout feature helps to minimize battery drain
• Automatic three-stage battery charger
• Designed to be hardwired using quick-connect AC terminal blocks or by connecting AC through GFCI receptacles (included)
• Built-in 30-amp relay to automatically transfer between inverter power and incoming AC utility power

Protection Features

• Battery over-voltage and under-voltage protection
• Over-temperature shutdown
• Automatic overload protection
• Short-circuit protection
• Ground-fault protection
• ETL certified to UL458 for use in mobile RV and commercial applications

Models HF 1000 HF 1055 HF 1800 Output Power 1000w 1000w 1800w Surge Power 2000w 2000w 3600w Output Frequency regulation 60 hz 60 Hz 60Hz Inverter Voltage Regulation 115 +/- 10 Vrms 115 +/- 10 Vrms 115 +/- 10 Vrms Output Wave Form Modified Sine Wave Modified Sine Wave Modified Sine Wave Efficiency ( Full Load) > 80% > 80% > 80% Peak Efficiency > 87% > 87% > 87% No-load input power (producing output voltage) < 10 W < 10 W < 10 W Off mode current draw (Display Off ) < 1 mA < 1 mA < 1 mA         Electrical Specifications       Charge Rate 20A 55A 40A AC Input Voltage Range 90-130Vac 90-130Vac 90-130Vac AC Transfer Relay 30A 30A 30A Battery Voltage ( Nominal) 12vdc 12vdc 12vdc Operating Voltage Range 10.5-15.5Vdc 10.5-15.5Vdc 10.5-15.5Vdc Low battery Cut-out (Low Limit / High Limit) 10.5Vdc/11.8Vdc 10.5Vdc/11.8Vdc 10.5Vdc/11.8Vdc AC Input ( Max Charge) 5Aac 10Aac 7.5Aac Default Bulk Charge Voltage Setting 14.2Vdc 14.2Vdc 14.2Vdc Default Float Charge Voltage Setting 13.5Vdc 13.5Vdc 13.5Vdc Battery Charge Outputs One One One Charge Control Three-stage Three-stage Three-stage Battery Type Settings Flooded/Gel/AGM/Fixed 13.5Vdc Flooded/Gel/AGM/Fixed 13.5Vdc Flooded/Gel/AGM/Fixed 13.5Vdc Equalization No No No Internal Temperature-sensitive Charging Yes Yes Yes         General Specifications       Optimal Operating Temperature Range 32° - 104° F 32° - 104° F 32° - 104° F Optional Remotes Detachable Display Detachable Display Detachable Display Unit Weight 10lb 10lb 12.8lb Unit Dimensions 4.2 x 9.5 xx 15.5" 4.2 x 9.5 xx 15.5" 4.2x9.5x18.0" Part Number 806-1020 806-1055 806-1840
