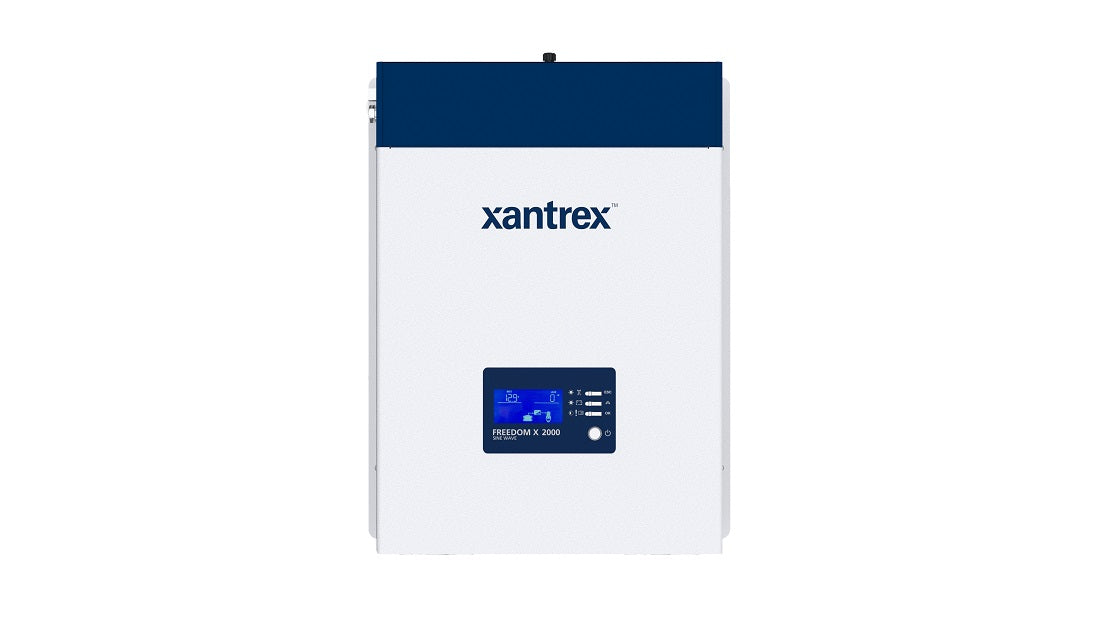

Xantrex Freedom X2000-12 2000W 230V True Sine Wave Inverter

Xantrex Freedom X2000-12 2000W 230V True Sine Wave Inverter

Xantrex Freedom X 2000 230v 2000W Inverter

• Extended Surge Rating: Surges to 2X continuous power for at least 2 seconds for motor loads


• True Sine Wave AC Power: For operation of sensitive and motor loads


• Ignition Control: Feature to turn inverter on/off via a 12 VDC signal and to minimize battery drain by switching the inverter off when the ignition key is turned off


• Wide 10-17 VDC Input Range: Ensures inverter operation on high voltage alternators found on many new vehicle chassis


• Programmable AC Under-Voltage (170-220V) Shutdown: Feature ideal to operate under weak shore power or generator input


• Built in 30A AC Transfer Relay: Senses when outside AC Power is present and transfers the load from the inverter to the source of incoming power

True sine wave 120 Vac inverter with built-in transfer switch. Designed for recreational and commercial applications.. Configure and monitor system performance via Bluetooth app available on the optional Bluetooth remote panel (# 808-0817-02)

The Freedom X inverter offers premium performance in a lightweight compact package. It cranks out full output from -20°C - 40°C for operation in all climate temperatures. The extended surge rating of the Freedom X makes it ideal to start difficult loads including fridge and microwave. The quick connect terminals at AC IN/OUT make installation a breeze.

AC Output Operating Voltage Options
220/230/240V

Continuous Output Power
Continuous Power 2000 W @40 C True sine wave (TSW)

Continuous AC Output Current
8.3 A

Surge Power
4000 W (> 2 sec)

Frequency (Configurable)
50 Hz (or 60 Hz)

DC Input Operating voltage range
10.0 - 17.0 V

DC Input Max Non-Operating Voltage
25.2 V

DC Input Nominal Voltage (inverting)
12.0 V

DC Nominal Current at Full Load
192 A

Peak Efficiency
91%

Full Load Efficiency
> 87.5%

GENERAL SPECS

Operating Temperature Range
-20 to 60 C, with output derated above 40 °C

Storage Temperature Range
-40 to 70 C

Operating Humidity Range
5 to 95% RH, non-condensing

Operating Input AC Pass-Through Voltage Range
170-280V

Safe Non-Operating Input AC Voltage Range
Up to 300V

Transfer Relay AC Current Rating
30 A , 24 A continous

L x W x H (without flanges)
370 mm x 275 mm x 100 mm

L x W x H (with flanges)
370 mm x 305 mm x 100 mm

Net Weight
7.2 kgs

REGULATORY APPROVALS

Safety
CE Marking, Low Voltage Directive Compliant (Marine installations, drip shield, 808-1050)

EMC
CE Marking, EMC Directive and Automotive EMC - Regulation 10 R-06 Compliant

Environmental
CE Marking, RoHS Directive Compliant

What's in the Box:

• Freedom X 2000 230v


• Documentation


• one set of plastic bushings for large DC cables


• one pre-installed DC earth enclosure lug (not shown)


• one bonding screw
