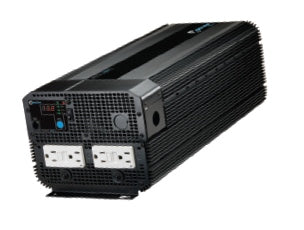

Xantrex Xpower 5000 12v 5000W Inverter With Gfci

Xantrex Xpower 5000 12v 5000W Inverter With Gfci

Mobile Power for Trucks, RVs and Boats

XPower Inverters connect easily to 12 volt batteries to provide AC power for a variety of medium to heavy duty applications. Designed for easy installation and operation, the XPower inverters provide a reliable source of power onboard trucks, RVs and boats to run home appliances, consumer electronics, entertainiment systems, power tools, office equipment and much more. They are also suitable for small contractors who need to operate handheld power tools from their van or pick-up truck. The powerful 5000-watt model has four GFCI oulets for multiple loads and an easy-to-read digital display for instant system information. All models meet the stringent UL458 regulatory requirements.

Product Features

• Portable power for AC products: 1000, 1500, 3000 and 5000 watt models available
• Two GFCI AC receptacles for connecting multiple loads
• 5000-watt model: Four GFCI AC receptacles, each equipped with a 20-amp breaker
• High surge capacity for products that require more power to start
• High efficiency - converts virtually all the battery?s available power to AC
• Mounting brackets for convenient installation
• Heavy duty stud connectors
• Remote on/off switch included

Protection Features

• Overload and over temperature shutdown
• Over voltage protection (15.0 VDC)
• Low voltage alarm (11.0 VDC)
• Low voltage cut-out (10.5 VDC)

Product Applications

• Household Appliances: compact microwave ovens, bread makers, food processors, small bar refrigerators, small vacuum cleaners, fluorescent and incandescent lights, sewing machines and fans
• Handheld Power Tools: drills, jigsaws, sanders and buffers
• Entertainment Electronics: televisions, VCRs, video games, stereos, musical instruments and satellite equipment
• Office Equipment: computers with 17? monitors, facsimile machines

Electrical Specifications Inverter 1000 Inverter 1500 Inverter 3000 Inverter 5000 Surge capacity (peak) 2000 watts 3000 watts 5000 watts 10000 watts Max. continuous power 1000 watts 1500 watts 3000 watts 5000 watts AC output voltage 115VAC +/- 5% 115VAC +/- 5% 115VAC +/- 5% 115VAC +/- 5% AC output Frequency 60Hz +/- 1Hz 60Hz +/- 1Hz 60Hz +/- 1Hz 60Hz +/- 1Hz AC output waveform Modified sine wave Modified sine wave Modified sine wave Modified sine wave Optimum  efficiency 90% 90% 90% 90% No load current drive < 0.3 A DC < 0.3 A DC < 0.6 A DC < 0.6 A DC Input voltage range 10.5 - 15.5 VDC 10.5 - 15.5 VDC 10.5 - 15.5 VDC 10.5 - 15.5 VDC General Specifications Operating temperature range

32°F − 104°F / 0°C − 40 °C

AC receptacles 2 2 2 4 Dimensions(HxWxL) 2.8 x 5.9 x 12.3" 3 x 5.9 x 15" 4.3 x 9.5 x 18.5" 6.25 x 8 x 19.5" Weight 4.4Lbs 5.9Lbs 12.9lbs 24.1 Lbs Warranty 1 year 1 year 1 year 1 year Part Number 813-1000-UL 813-1500-UL 813-3000-UL 813-5000
